Carbon rims · UK dealer
Nextie rims

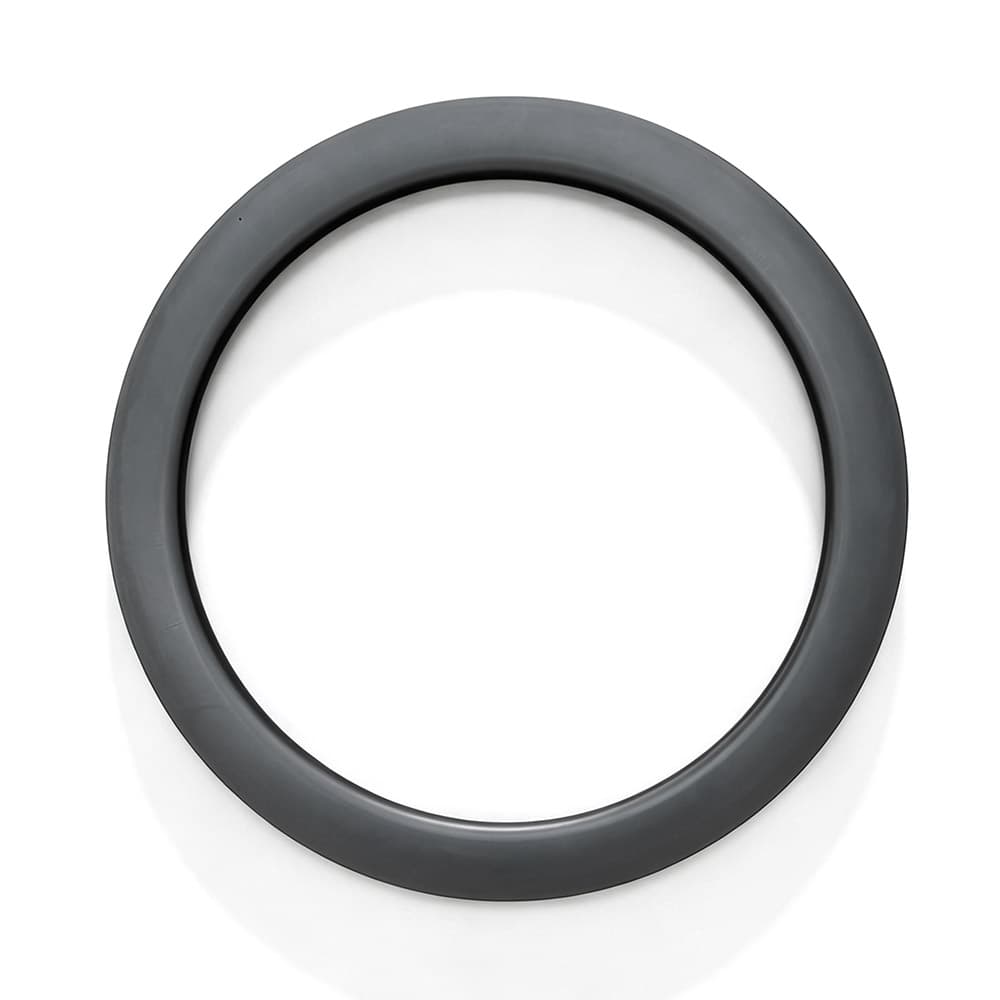

Every current Nextie carbon rim — mountain, gravel, road, fat bike and BMX — plus frames, disc wheels and accessories, ordered in for you (about 6 weeks) or hand-built into wheels here in Rochford. We ship rims and built wheels across the UK and Europe. Prices per rim include UK VAT.
Rim finder
Not sure which rim? Tell us what you're after
Pick as many or as few as you like. The best matches appear underneath.
Choose something above and we'll show the rims that fit.
44 rims

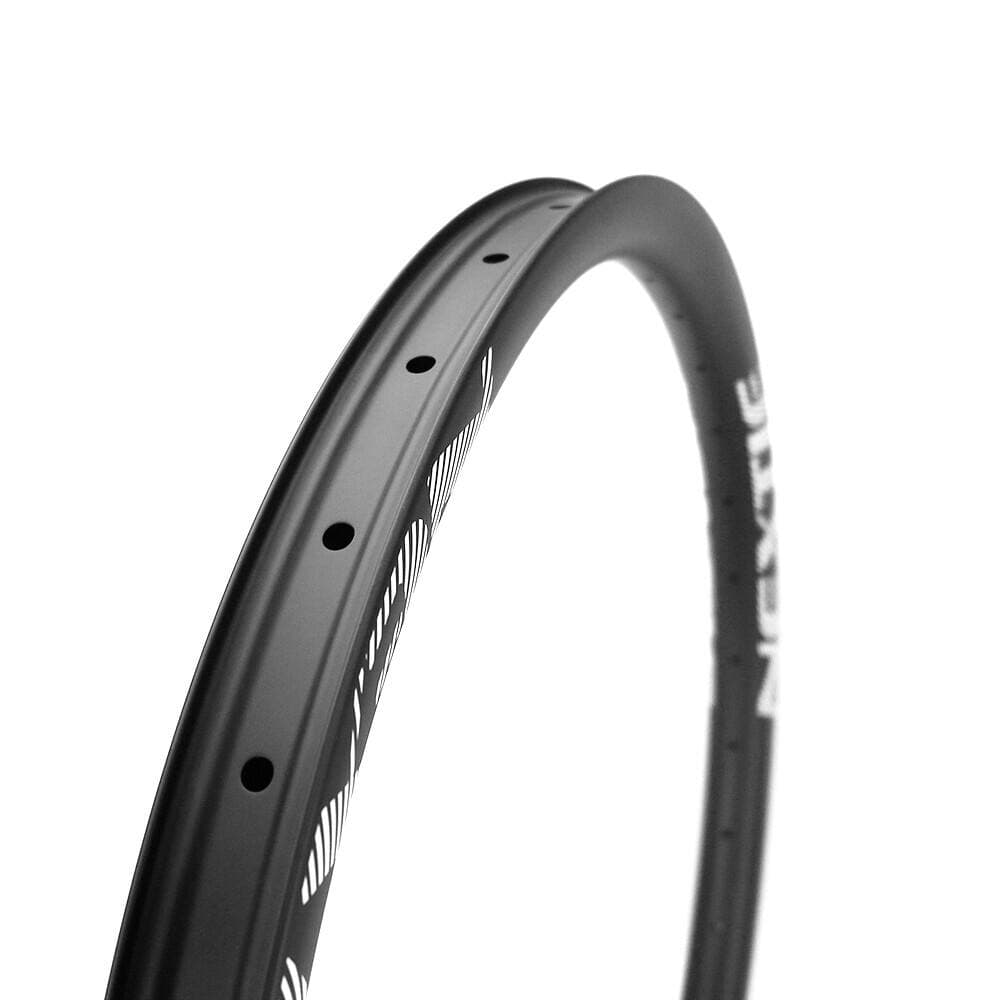

MTB rims
Most popular
Every mtb rim
Click an orange heading (Size, Weight or Price) to sort the list.
| Model | Range | Ext / int (mm) | ERD | Tyre | ||||
|---|---|---|---|---|---|---|---|---|
| Alpha 36S | 29" | Supreme -29" | 225g | 36 / 30 | 591 | 2.0"–2.75" | £487.00 | |
| Omega 36U | 29" | Supreme -29" | 260g/280g | 36 / 30 | 594 | 2.0"–2.75" | £370.00 | |
| Omega 36 | 29" | Supreme -29" | 390g/350g | 36 / 30 | 594 | 2.0"–2.75" | £370.00 | |
| Omega 40 | 29" | Supreme -29" | 440g | 40 / 32 | 593 | 2.15"–2.9" | £377.00 | |
| Omega 40D | 29" | Supreme -29" | 480g | 40 / 32 | 593 | 2.15"–2.9" | £392.00 | |
| NXT29UM27 | 29" | Premium 29" - Symmetric | 280g | 27 / 22 | 596 | 1.8"–2.2" | £289.00 | |
| NXT29UM30 | 29" | Premium 29" - Symmetric | 310g | 30 / 25 | 590 | 1.9"–2.35" | £292.00 | |
| NXT29UM32 | 29" | Premium 29" - Symmetric | 320g | 32 / 27 | 590 | 2.0"–2.45" | £301.00 | |
| NXT29UM35 | 29" | Premium 29" - Symmetric | 325g | 35 / 30 | 587 | 2.0"–2.75" | £307.00 | |
| NXT29XM33 | 29" | Premium 29" - Symmetric | 330g/375g | 35 / 27 | 581 | 2.0"–2.45" | £301.00 | |
| NXT29XM36 | 29" | Premium 29" - Symmetric | 390 | 36 / 30 | 581 | 2.0"–2.75" | £307.00 | |
| NXT29XM41 | 29" | Premium 29" - Symmetric | 420 | 41 / 35 | 581 | 2.2"–3.2" | £318.00 | |
| NXT29XM46 | 29" | Premium 29" - Symmetric | 470g | 46 / 40 | 586 | 2.4"–3.3" | £328.00 | |
| NXT29VM30U | 29" | Premium 29" - Asymmetric | 255g | 30 / 25 | 596 | 1.9"–2.5" | £312.00 | |
| NXT29VM35U | 29" | Premium 29" - Asymmetric | 280g | 35 / 30 | 590 | 2.0"–2.75" | £320.00 | |
| NXT29VM37U | 29" | Premium 29" - Asymmetric | 285g | 37 / 29 | 590 | 1.9"–2.65" | £320.00 | |
| NXT29XML35 | 29" | Premium 29" - Asymmetric | 360g/400g | 35 / 29 | 589 | 2.0"–2.75" | £307.00 | |
| NXT29XML38 | 29" | Premium 29" - Asymmetric | 415g/445g | 38 / 32 | 589 | 2.15"–2.9" | £312.00 | |
| NXT29XD39 | 29" | Premium 29" - Asymmetric | 550g | 38.6 / 30 | 590 | 2.1"–2.75" | £345.00 | |
| NXT29RM27 | 29" | Standard 29" - Symmetric | 365g | 27 / 21 | 586 | 1.6"–2.1" | £268.00 | |
| NXT29RM30 | 29" | Standard 29" - Symmetric | 390g | 30 / 23.4 | 581 | 1.8"–2.15" | £273.00 | |
| NXT29AM35 | 29" | Standard 29" - Symmetric | 445g/475g | 35 / 29 | 577 | 2.0"–2.65" | £285.00 | |
| NXT29AM40 | 29" | Standard 29" - Symmetric | 475g/505g | 40 / 34 | 577 | 2.2"–3.2" | £293.00 | |
| NXT29JF52-II | 29" | Standard 29" - Symmetric | 530g | 52 / 45 | 573 | 2.6"–3.6" | £329.00 | |
| NXT29DH40 | 29" | Standard 29" - Symmetric | 590g | 40 / 31 | 577 | 2.1"–2.85" | £325.00 | |
| Omega 40-27 | 27.5" | Supreme - 27.5" | 400g | 40 / 32 | 603 | 2.15"–2.9" | £377.00 | |
| Omega 40D-27 | 27.5" | Supreme - 27.5" | 450g | 40 / 32 | 603 | 2.15"–2.9" | £392.00 | |
| NXT27XM33 | 27.5" | Premium 27.5" | 310g/350g | 32.6 / 27 | 549 | 1.9"–2.45" | £298.00 | |
| NXT27XM36 | 27.5" | Premium 27.5" | 400g/430g | 36 / 30 | 543 | 2.0"–2.75" | £307.00 | |
| NXT27XM41 | 27.5" | Premium 27.5" | 430g/460g | 41 / 35 | 543 | 2.2"–3.2" | £318.00 | |
| NXT27XM46 | 27.5" | Premium 27.5" | 445g/475g | 46 / 40 | 549 | 2.4"–3.3" | £328.00 | |
| NXT27XML35 | 27.5" | Premium 27.5" | 340g/380g | 35 / 29 | 551 | 2.0"–2.5" | £307.00 | |
| NXT27XML38 | 27.5" | Premium 27.5" | 395g/425g | 38 / 32 | 551 | 2.15"–2.9" | £312.00 | |
| NXT27XD39 | 27.5" | Premium 27.5" | 520g | 38.6 / 30 | 552 | 2.1"–2.75" | £345.00 | |
| NXT27RM30 | 27.5" | Standard 27.5" - Symmetric | 375g | 30 / 23.4 | 543 | 1.8"–2.15" | £273.00 | |
| NXT27AM35 | 27.5" | Standard 27.5" - Symmetric | 440g/470g | 35 / 29 | 539 | 2.0"–2.65" | £285.00 | |
| NXT27AM40 | 27.5" | Standard 27.5" - Symmetric | 460g/490g | 40 / 34 | 539 | 2.2"–3.2" | £293.00 | |
| NXT27JF52-II | 27.5" | Standard 27.5" - Symmetric | 510g | 52 / 45 | 535 | 2.6"–3.6" | £329.00 | |
| NXT27DH40 | 27.5" | Standard 27.5" - Symmetric | 570g | 40 / 31 | 539 | 2.1"–2.85" | £325.00 | |
| Unicorn 32" | 32" | Large Size - 32'' & 36" | 480g | 38 / 30 | 664 | 2.0"–2.75" | £377.00 | |
| Alpha 32" | 32" | Large Size - 32'' & 36" | 350g | 36 / 30 | 480 | — | £512.00 | |
| NXT26AM40 | 26" | Standard 26" - Symmetric | 450g/480g | 40 / 34 | 515 | 2.2"–3.2" | £293.00 | |
| NXT26DH40 | 26" | Standard 26" - Symmetric | 550g | 40 / 31 | 515 | 2.1"–2.85" | £325.00 | |
| Unicorn 36" | 36" | Large Size - 32'' & 36" | 580g | 42 / 35 | 742 | 2.2"–3.2" | £408.00 |
34 rims
Gravel rims
Most popular
Every gravel rim
Click an orange heading (Size, Weight or Price) to sort the list.
| Model | Range | Ext / int (mm) | ERD | Tyre | ||||
|---|---|---|---|---|---|---|---|---|
| Ripple 60GS | 700c | Supreme - 700C | 435g | 41 / 35 | 519 | 50~75mm / 32~65mm | £430.00 | |
| Alpha 45G | 700c | Supreme - 700C | 320g | 32 / 25 | 547 | — | £477.00 | |
| Alpha 55G | 700c | Supreme - 700C | 340g | 32 / 25 | 527 | — | £493.00 | |

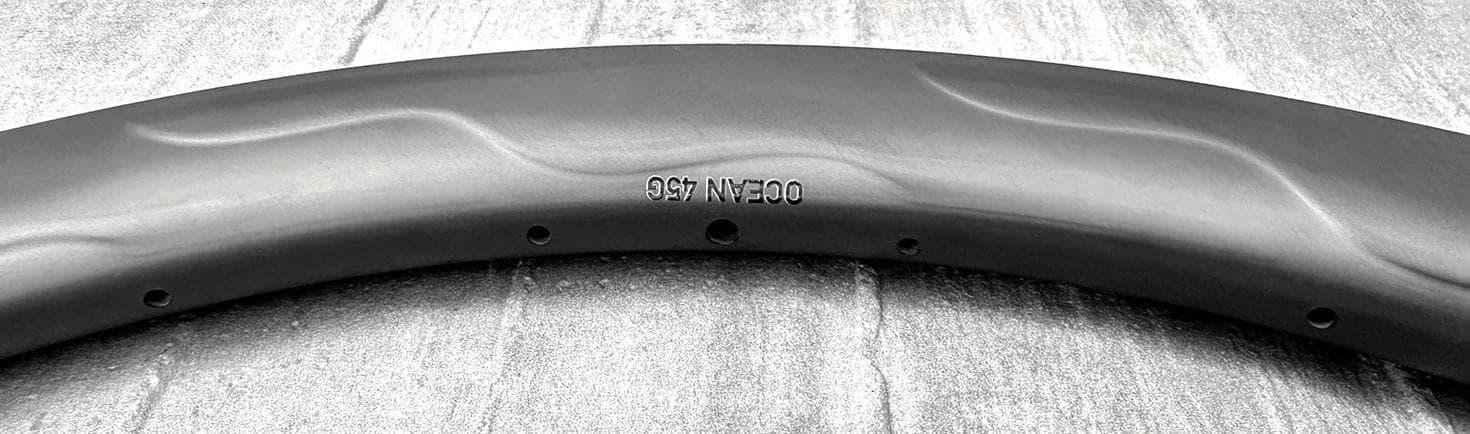

| Ocean 45G | 700c | Supreme Ocean - 25mm Internal | 385g | 32 / 25 | 550 | — | £373.00 | |
| SGV 39 | 700c | Supreme SGV - 32mm Internal | 340g | 39 / 32 | 562 | — | £353.00 | |
| SGV 44 | 700c | Supreme SGV - 32mm Internal | 360g | 39 / 32 | 552 | — | £358.00 | |
| SGV 49 | 700c | Supreme SGV - 32mm Internal | 380g | 39 / 32 | 542 | — | £364.00 | |
| SGV 54 | 700c | Supreme SGV - 32mm Internal | 400g | 39.5 / 32 | 532 | — | £370.00 | |
| SGV 59 | 700c | Supreme SGV - 32mm Internal | 420g | 39.5 / 32 | 522 | — | £377.00 | |
| SGV 64 | 700c | Supreme SGV - 32mm Internal | 440g | 39.5 / 32 | 512 | — | £383.00 | |
| Supreme NGV 45 | 700c | Supreme NGV - 27.5mm Internal | 345g | 33.5 / 27.5 | 550 | 50~75mm / 32~65mm | £358.00 | |
| Supreme NGV 50 | 700c | Supreme NGV - 27.5mm Internal | 355g | 33.5 / 27.5 | 540 | 50~75mm / 32~65mm | £364.00 | |
| Premium RGX 60 | 700c | Premium RGX - 38mm Internal | 500g | — | — | — | £361.00 | |
| SGX 30 | 700c | Premium SGX - 32mm Internal | 340g | 39.4 / 32 | 580 | 51~75mm | £315.00 | |
| SGX 35 | 700c | Premium SGX - 32mm Internal | 355g | 40 / 32 | 570 | 51~75mm | £320.00 | |
| SGX 40 | 700c | Premium SGX - 32mm Internal | 370g | 40.6 / 32 | 560 | 51~75mm | £325.00 | |
| SGX 45 | 700c | Premium SGX - 32mm Internal | 385g | 40.6 / 32 | 550 | 51~75mm | £329.00 | |
| SGX 50 | 700c | Premium SGX - 32mm Internal | 395g | 41.4 / 32 | 540 | 51~75mm | £334.00 | |
| SGX 55 | 700c | Premium SGX - 32mm Internal | 420g | 41.4 / 32 | 530 | 51~75mm | £339.00 | |
| Premium NGX 45 | 700c | Premium NGX - 27.5mm Internal | 385g | 33.5 / 27.5 | 550 | 32~65mm | £329.00 | |
| Premium NGX 50 | 700c | Premium NGX - 27.5mm Internal | 395g | 33.5 / 27.5 | 540 | 32~65mm | £334.00 | |

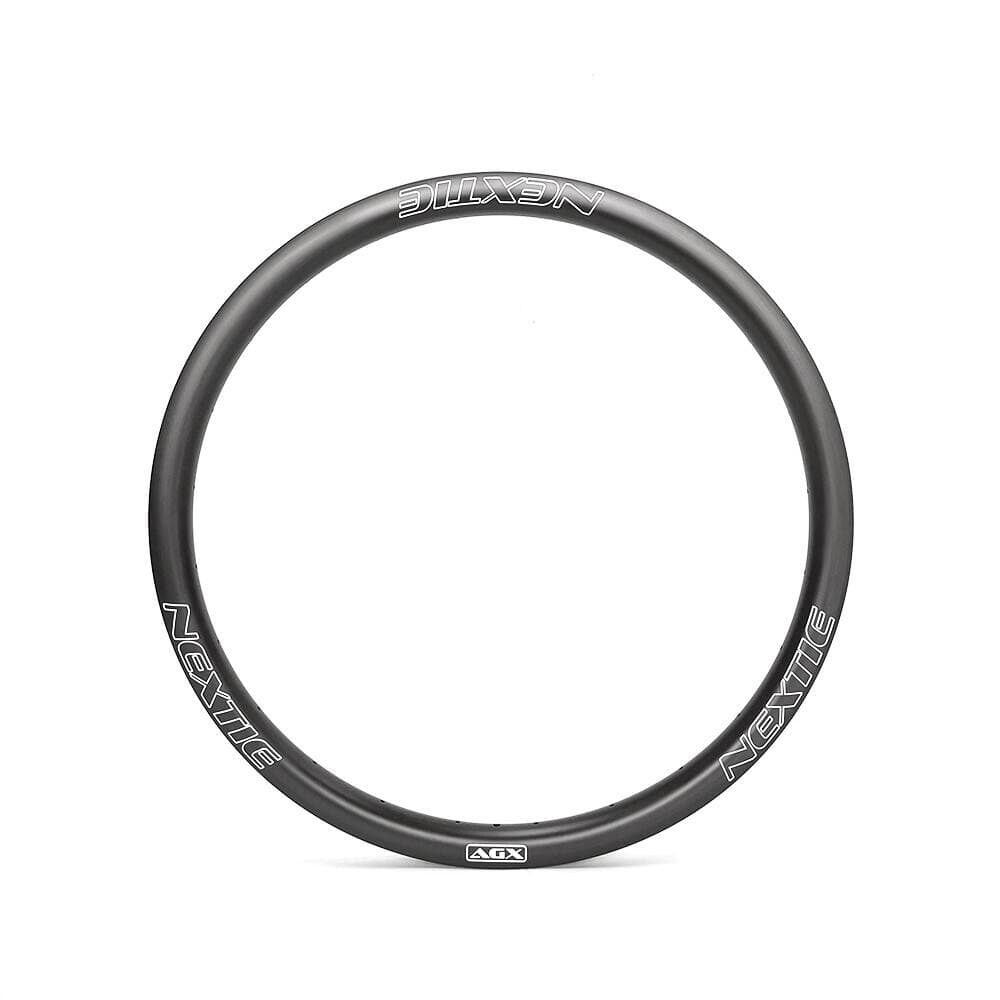

| AGX 36 | 700c | Premium AGX - 29mm Internal | 395g | — | 568 | — | £318.00 | |
| AGX 45 | 700c | Premium AGX - 29mm Internal | 430g | — | 550 | — | £328.00 | |

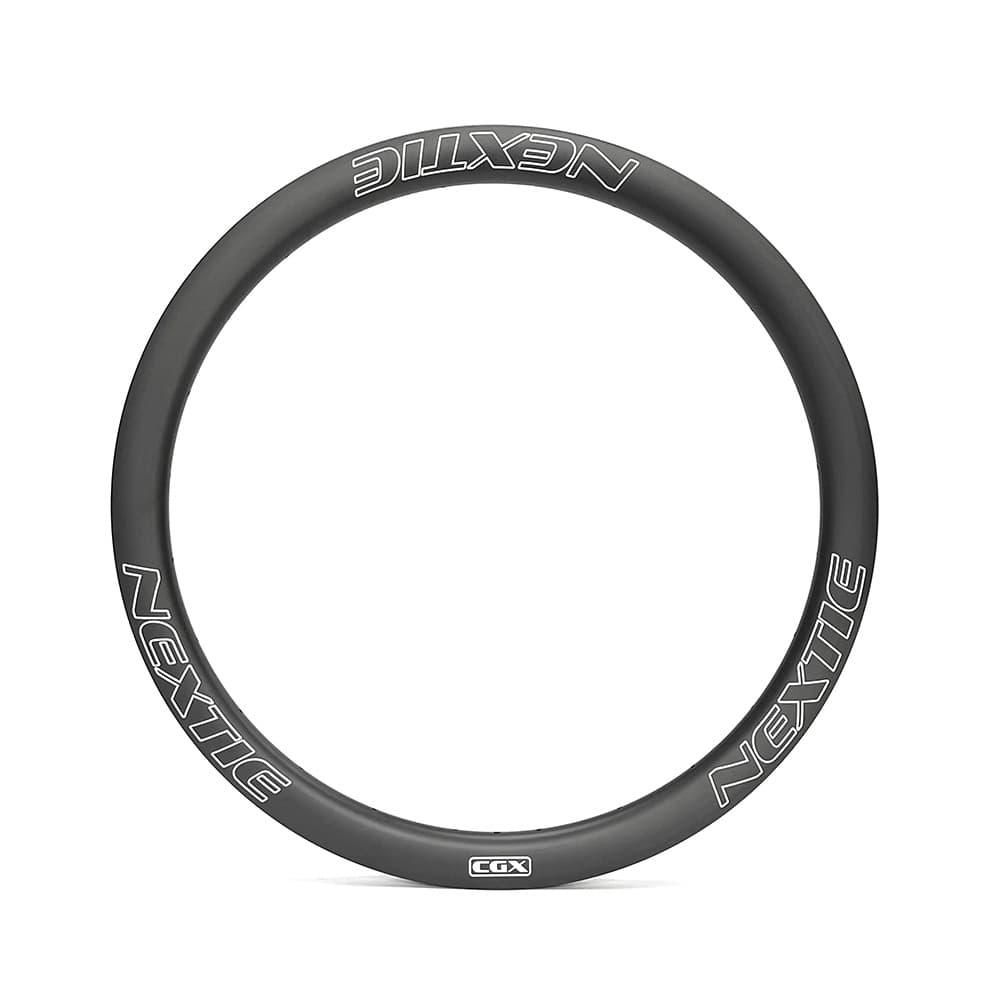

| CGX 30 | 700c | Premium CGX - 25mm Internal | 330g | 32.9 / 25 | 580 | 29~55mm Road / 29~40mm Cyclocross / 29~62mm Gravel | £311.00 | |
| CGX 35 | 700c | Premium CGX - 25mm Internal | 350g | 33 / 25 | 570 | 29~55mm Road / 29~40mm Cyclocross / 29~62mm Gravel | £315.00 | |
| CGX 40 | 700c | Premium CGX - 25mm Internal | 360g | 33.2 / 25 | 560 | 29~55mm Road / 29~40mm Cyclocross / 29~62mm Gravel | £320.00 | |
| CGX 45 | 700c | Premium CGX - 25mm Internal | 370g | 33.3 / 25 | 550 | 29~55mm Road / 29~40mm Cyclocross / 29~62mm Gravel | £325.00 | |
| CGX 50 | 700c | Premium CGX - 25mm Internal | 380g | 34.4 / 25 | 540 | 29~55mm Road / 29~40mm Cyclocross / 29~62mm Gravel | £329.00 | |
| CGX 60 | 700c | Premium CGX - 25mm Internal | 405g | 36.5 / 25 | 520 | 29~55mm Road / 29~40mm Cyclocross / 29~62mm Gravel | £339.00 | |
| SGX-W 35 | 700c | Premium SGX Wave 32mm Internal | 380g | 38 / 32 | 570 | 51~75mm | £326.00 | |
| SGX-W 40 | 700c | Premium SGX Wave 32mm Internal | 390g | 38 / 32 | 560 | 51~75mm | £331.00 | |
| SGX-W 45 | 700c | Premium SGX Wave 32mm Internal | 400g | 38 / 32 | 550 | 51~75mm | £336.00 | |
| SGX-W 50 | 700c | Premium SGX Wave 32mm Internal | 410g | 38 / 32 | 540 | 51~75mm | £340.00 | |
| SGX-W 55 | 700c | Premium SGX Wave 32mm Internal | 425g | 38 / 32 | 530 | 51~75mm | £345.00 |
35 rims

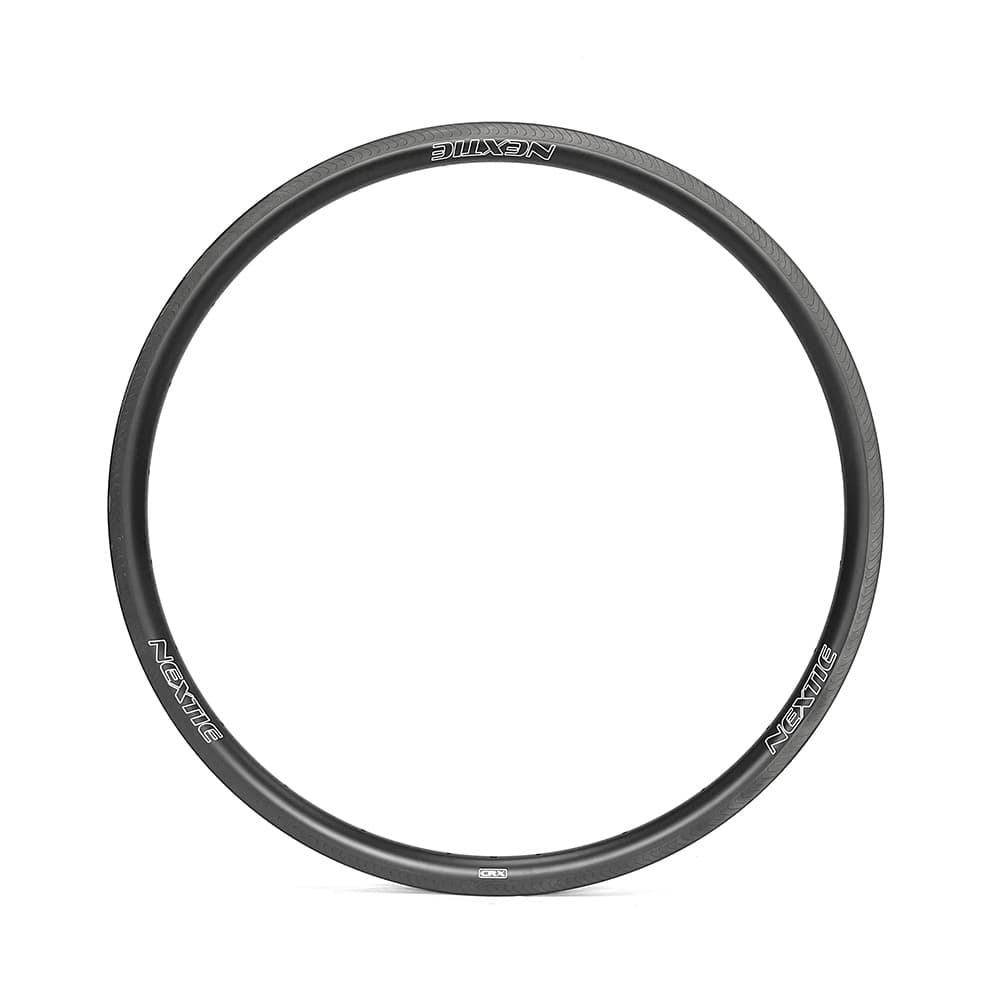

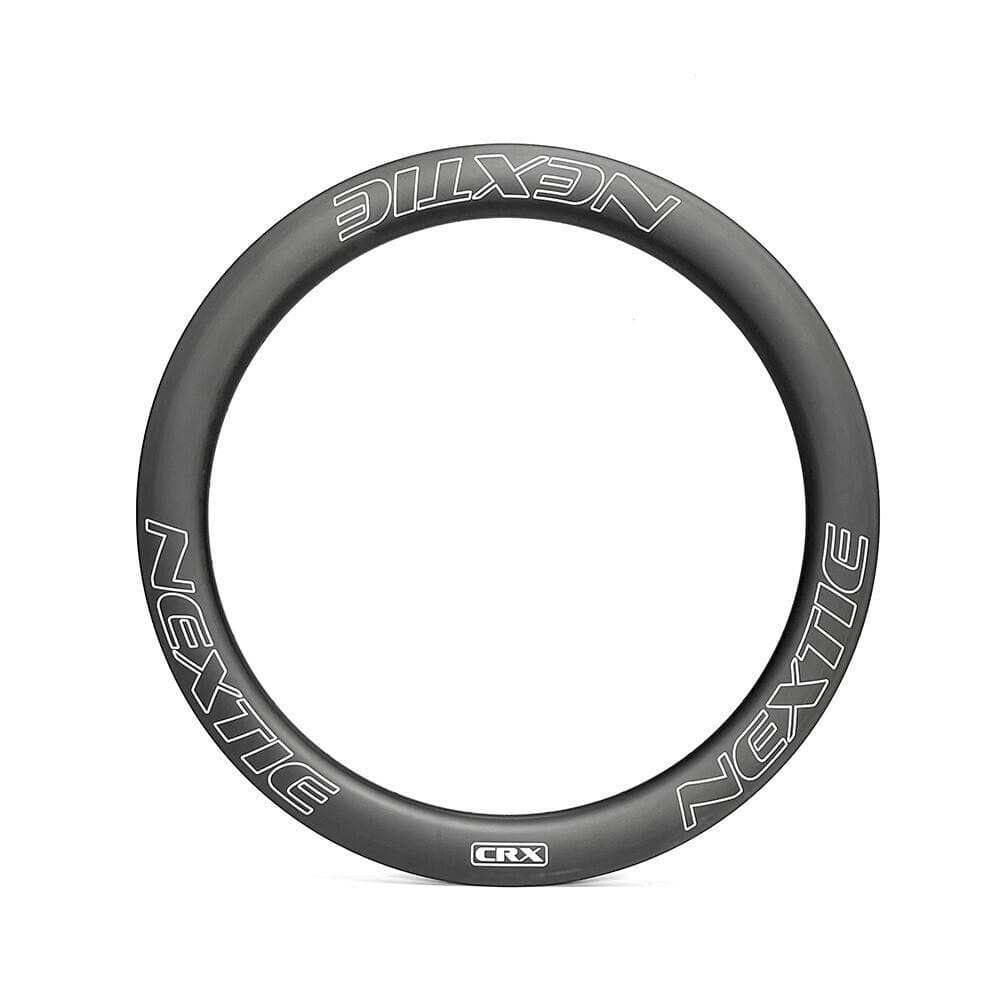

Road rims
Most popular
Every road rim
Click an orange heading (Size, Weight or Price) to sort the list.
| Model | Range | Ext / int (mm) | ERD | Tyre | ||||
|---|---|---|---|---|---|---|---|---|
| Alpha 50 | 700c | Supreme - 700C | 315g | 32.5 / 24 | 537 | — | £477.00 | |

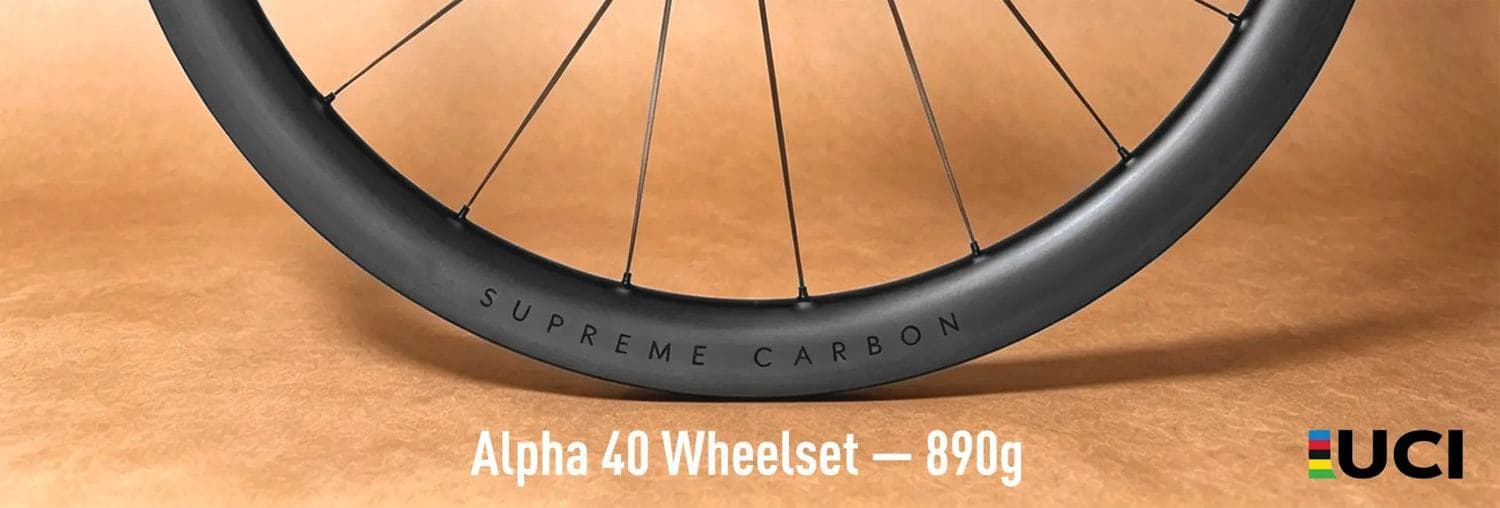

| Alpha 40 | 700c | Supreme - 700C | 280g | 29.4 / 23 | 557 | — | £462.00 | |
| Ripple 50 | 700c | Supreme - 700C | 360g | 32.5 / 24 | 540 | 28~53mm Road / 28~40mm Cyclocross / 28~60mm Gravel | £373.00 | |
| Ripple 40 | 700c | Supreme - 700C | 330g | 32.5 / 24 | 559 | 28~53mm Road / 28~40mm Cyclocross / 28~60mm Gravel | £358.00 | |
| ARX 30 | 700c | ARX (2026 New Version) | 330g | 30 / 23.5 | 579 | 28~53mm Road / 28~40mm Cyclocross / 28~60mm Gravel | £304.00 | |
| ARX 35 | 700c | ARX (2026 New Version) | 350g | 30 / 23.5 | 569 | 28~53mm Road / 28~40mm Cyclocross / 28~60mm Gravel | £309.00 | |
| ARX 40 | 700c | ARX (2026 New Version) | 360g | 30 / 23.5 | 559 | 28~53mm Road / 28~40mm Cyclocross / 28~60mm Gravel | £314.00 | |
| ARX 45 | 700c | ARX (2026 New Version) | 370g | 30 / 23.5 | 549 | 28~53mm Road / 28~40mm Cyclocross / 28~60mm Gravel | £318.00 | |
| ARX 50 | 700c | ARX (2026 New Version) | 380g | 30 / 23.5 | 539 | 28~53mm Road / 28~40mm Cyclocross / 28~60mm Gravel | £323.00 | |
| ARX 55 | 700c | ARX (2026 New Version) | 405g | 30 / 23.5 | 529 | 28~53mm Road / 28~40mm Cyclocross / 28~60mm Gravel | £328.00 | |
| ARX 60 | 700c | ARX (2026 New Version) | 435g | 30 / 23.5 | 519 | 28~53mm Road / 28~40mm Cyclocross / 28~60mm Gravel | £333.00 | |
| ARX 65 | 700c | ARX (2026 New Version) | 455g | 30 / 23.5 | 509 | 28~53mm Road / 28~40mm Cyclocross / 28~60mm Gravel | £340.00 | |
| ARX 85 | 700c | ARX (2026 New Version) | 590g | 30 / 23.5 | 469 | 28~53mm Road / 28~40mm Cyclocross / 28~60mm Gravel | £370.00 | |

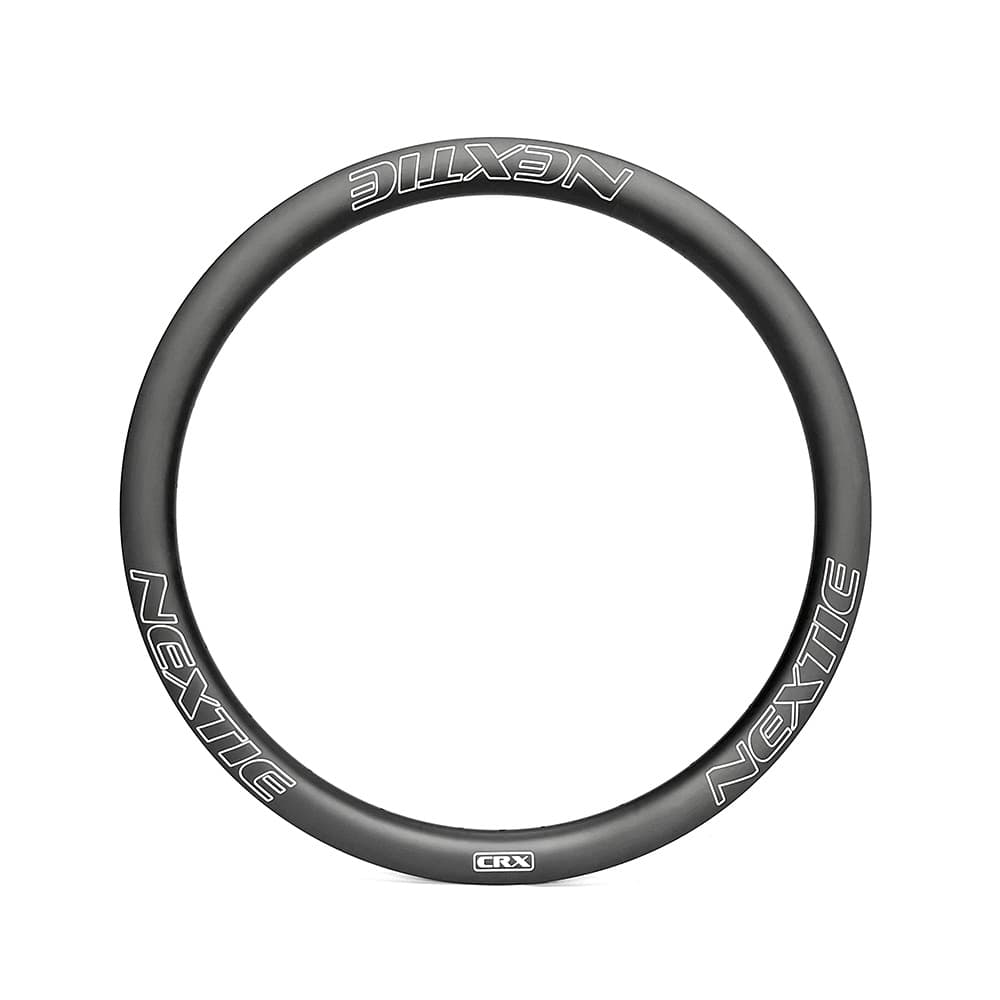

| CRX 33 | 700c | Premium CRX - 21mm Internal | 335g | 28 / 21 | 570 | 25~47mm Road / 38~40mm Cyclocross / 28~52mm Gravel | £301.00 | |
| CRX 40 | 700c | Premium CRX - 21mm Internal | 350g | 28 / 21 | 560 | 25~47mm Road / 38~40mm Cyclocross / 28~52mm Gravel | £307.00 | |
| CRX 45 | 700c | Premium CRX - 21mm Internal | 360g | 28 / 21 | 550 | 25~47mm Road / 38~40mm Cyclocross / 28~52mm Gravel | £312.00 | |
| CRX 50 | 700c | Premium CRX - 21mm Internal | 370g | 28 / 21 | 540 | 25~47mm Road / 38~40mm Cyclocross / 28~52mm Gravel | £317.00 | |
| CRX 55 | 700c | Premium CRX - 21mm Internal | 395g | 28 / 21 | 530 | 25~47mm Road / 38~40mm Cyclocross / 28~52mm Gravel | £322.00 | |
| CRX 60 | 700c | Premium CRX - 21mm Internal | 420g | 28 / 21 | 520 | 25~47mm Road / 38~40mm Cyclocross / 28~52mm Gravel | £326.00 | |
| CRX 65 | 700c | Premium CRX - 21mm Internal | 490g | 28 / 21 | 510 | 25~47mm Road / 38~40mm Cyclocross / 28~52mm Gravel | £331.00 | |
| CRX 70 | 700c | Premium CRX - 21mm Internal | 530g | 28 / 21 | 500 | 25~47mm Road / 38~40mm Cyclocross / 28~52mm Gravel | £336.00 | |
| RX 35 | 700c | Premium RX - 19mm Internal | 335g | 26 / 19 | 570 | 22~40mm Road / 28~40mm Cyclocross | £300.00 | |
| RX 40 | 700c | Premium RX - 19mm Internal | 350g | 26 / 19 | 560 | 22~40mm Road / 28~40mm Cyclocross | £304.00 | |
| RX 45 | 700c | Premium RX - 19mm Internal | 360g | 26 / 19 | 550 | 22~40mm Road / 28~40mm Cyclocross | £309.00 | |
| RX 50 | 700c | Premium RX - 19mm Internal | 370g | 26 / 19 | 540 | 22~40mm Road / 28~40mm Cyclocross | £314.00 | |
| RX 60 | 700c | Premium RX - 19mm Internal | 415g | 26 / 19 | 520 | 22~40mm Road / 28~40mm Cyclocross | £323.00 | |
| ARX-W 35 | 700c | Premium ARX Wave - 25mm Internal | 350g | 31 / 25 | 570 | 29~55mm Road / 29~40mm Cyclocross / 29~60mm Gravel | £320.00 | |
| ARX-W 40 | 700c | Premium ARX Wave - 25mm Internal | 360g | 31 / 25 | 560 | 29~55mm Road / 29~40mm Cyclocross / 29~60mm Gravel | £325.00 | |
| ARX-W 45 | 700c | Premium ARX Wave - 25mm Internal | 370g | 31 / 25 | 550 | 29~55mm Road / 29~40mm Cyclocross / 29~60mm Gravel | £329.00 | |
| ARX-W 50 | 700c | Premium ARX Wave - 25mm Internal | 380g | 31 / 25 | 540 | 29~55mm Road / 29~40mm Cyclocross / 29~60mm Gravel | £334.00 | |
| ARX-W 65 | 700c | Premium ARX Wave - 25mm Internal | 445g | 31 / 25 | 510 | 29~55mm Road / 29~40mm Cyclocross / 29~60mm Gravel | £348.00 | |
| CRX-W 45 | 700c | Premium CRX Wave - 22mm Internal | 345g | 28 / 22 | 550 | 26~49mm Road / 28~40mm Cyclocross / 28~55mm Gravel | £320.00 | |
| CRX-W 50 | 700c | Premium CRX Wave - 22mm Internal | 360g | 28 / 22 | 540 | 26~49mm Road / 28~40mm Cyclocross / 28~55mm Gravel | £325.00 | |
| CRX-W 60 | 700c | Premium CRX Wave - 22mm Internal | 415g | 28 / 22 | 520 | 26~49mm Road / 28~40mm Cyclocross / 28~55mm Gravel | £334.00 | |
| CRX-W 65 | 700c | Premium CRX Wave - 22mm Internal | 430g | 28 / 22 | 510 | 26~49mm Road / 28~40mm Cyclocross / 28~55mm Gravel | £339.00 |
16 rims

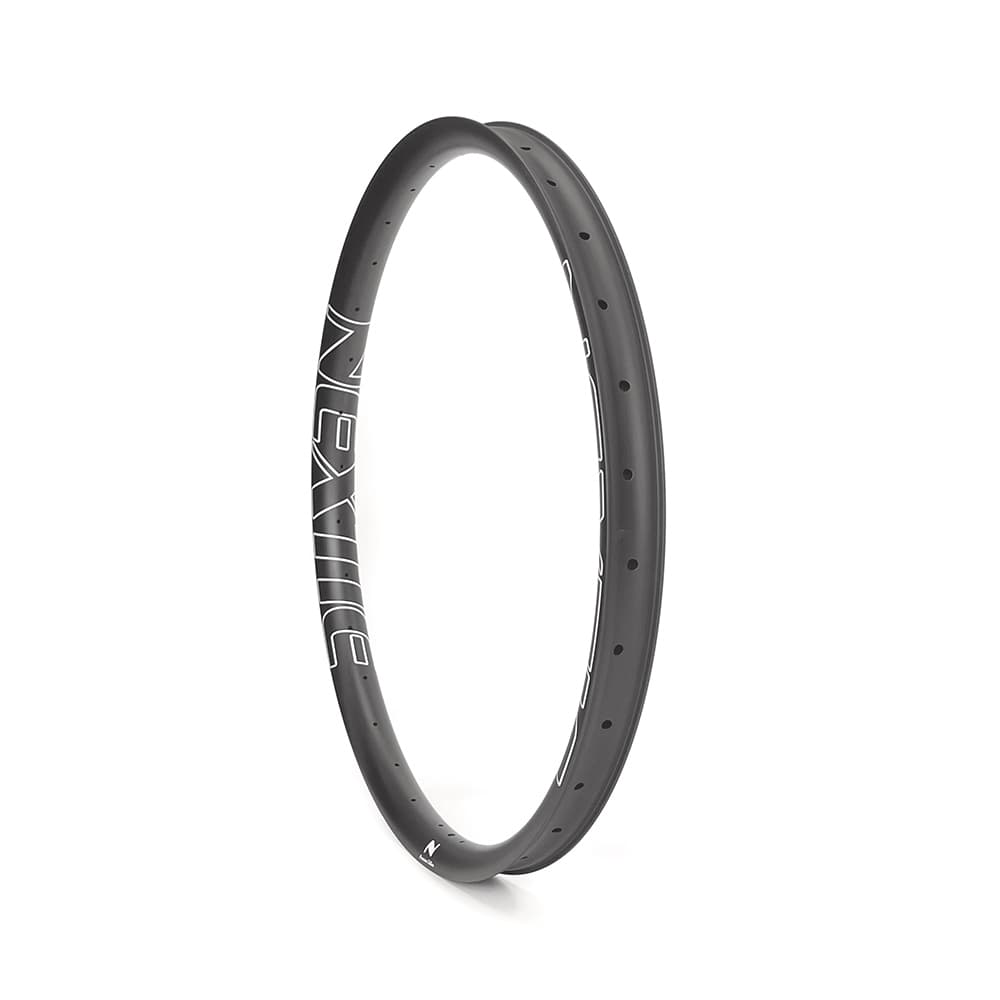

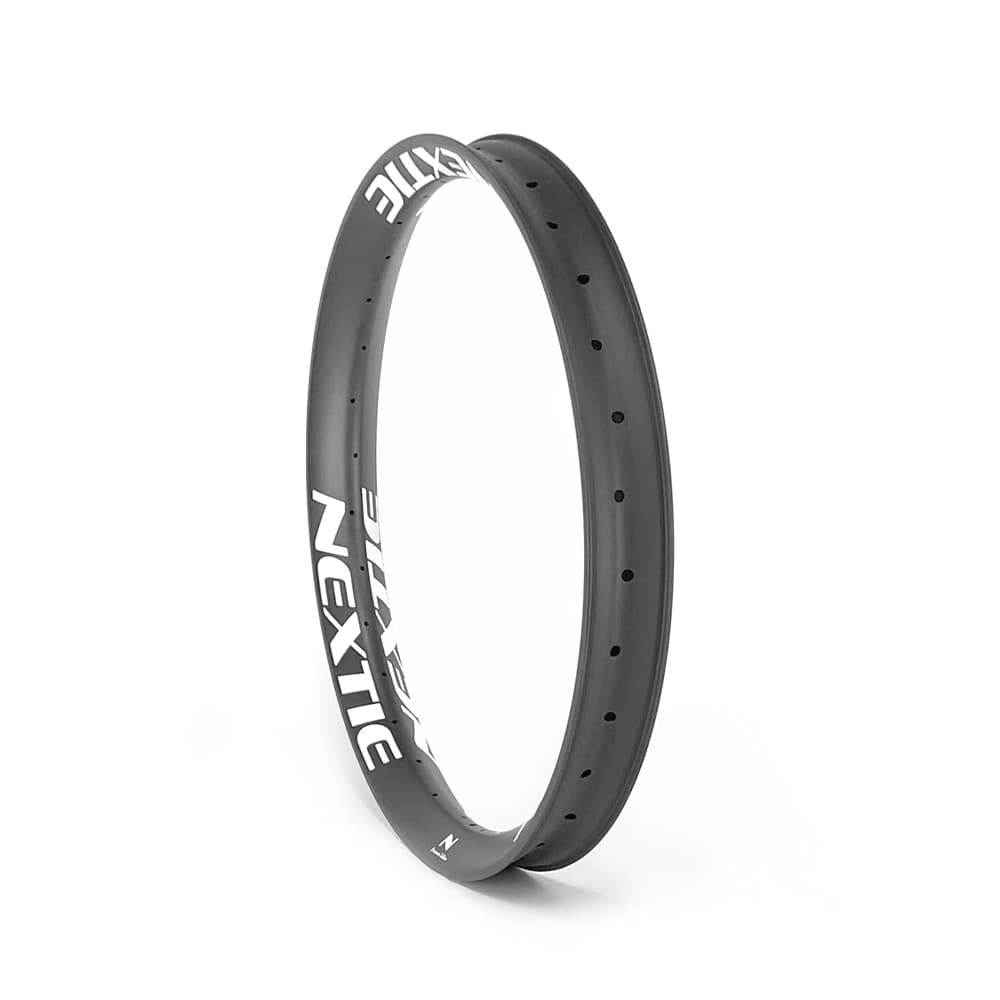

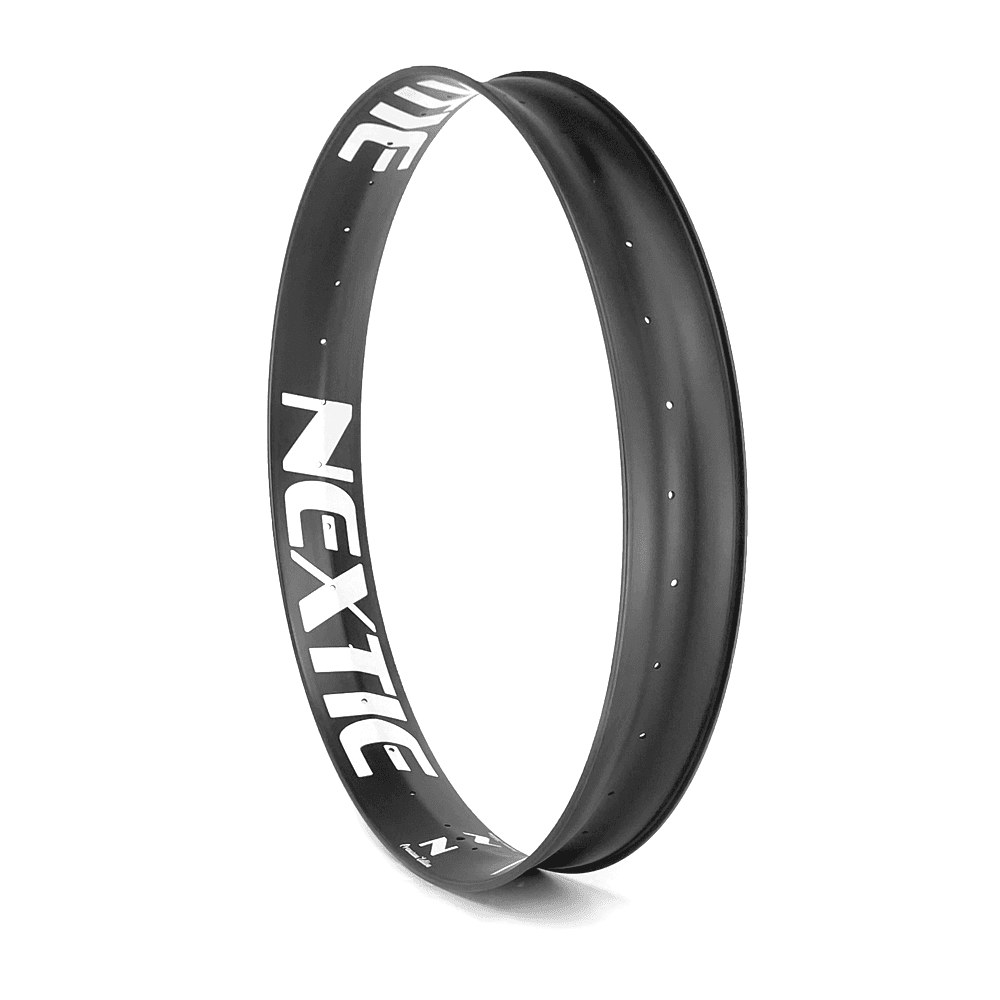

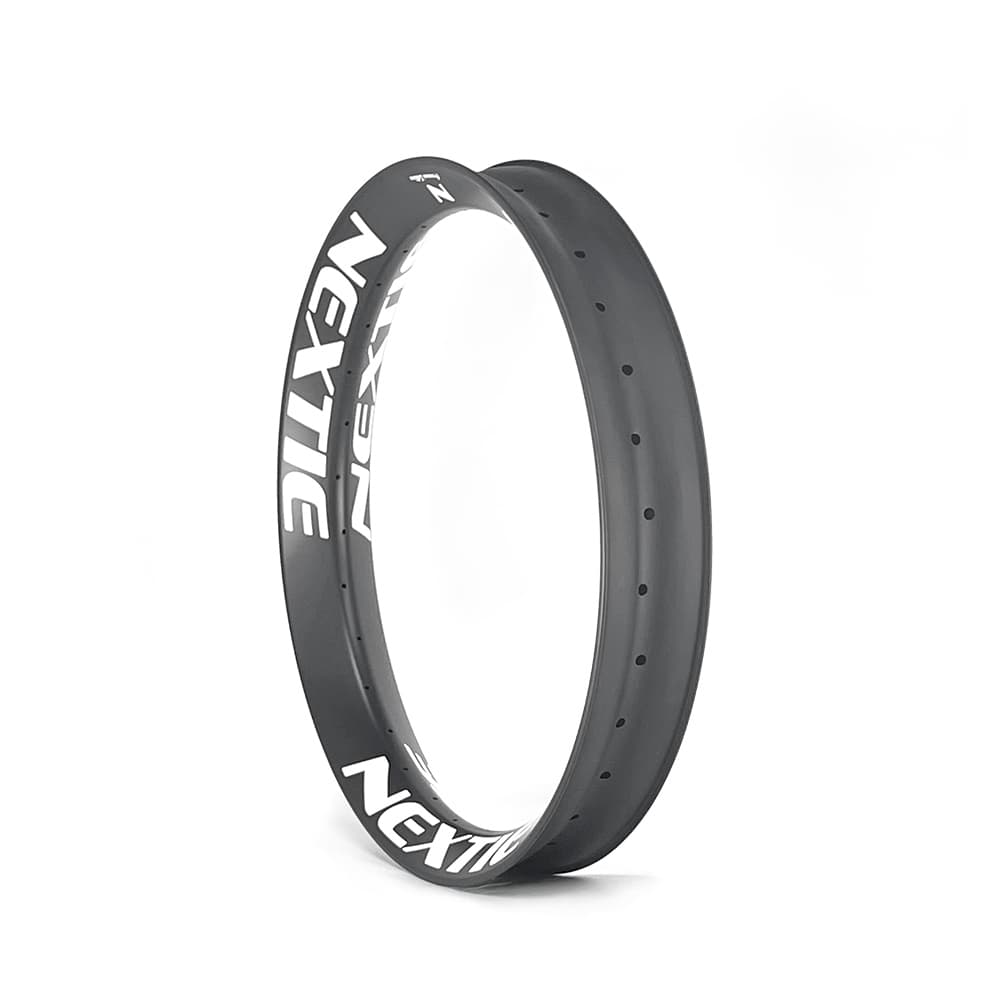

Fat bike rims
Most popular
Every fat bike rim
Click an orange heading (Size, Weight or Price) to sort the list.
| Model | Range | Ext / int (mm) | ERD | Tyre | ||||
|---|---|---|---|---|---|---|---|---|
| Xiphias 120-24 (XS120-24) | 24" | Single-Wall 24" | 600g | 120 / 114 | 490 | — | £506.00 | |
| Xiphias 65 (XS65) | 26" | Single-Wall 26" | 425g | 65 / 59 | 544 | — | £396.00 | |
| Xiphias 85 (XS85) | 26" | Single-Wall 26" | 530g | 85 / 79 | 544 | — | £427.00 | |
| Xiphias 95 (XS95) | 26" | Single-Wall 26" | 565g | 95 / 89 | 544 | — | £443.00 | |
| Xiphias 105 (XS105) | 26" | Single-Wall 26" | 585g | 105 / 99 | 544 | — | £458.00 | |
| Xiphias 55-27 (XS55-27) | 27.5" | Single-Wall 27.5" | 395g | 55 / 49 | 571 | — | £380.00 | |
| Xiphias 70-27 (XS70-27) | 27.5" | Single-Wall 27.5" | 510g | 70 / 64 | 569 | — | £403.00 | |
| Xiphias 80-27 (XS80-27) | 27.5" | Single-Wall 27.5" | 580g | 80 / 74 | 569 | — | £419.00 | |
| Xiphias 95-27 (XS95-27) | 27.5" | Single-Wall 27.5" | 600g | 95 / 89 | 568 | — | £443.00 | |
| Xiphias 55-29 (XS55-29) | 29" | Single-Wall 29" | 425g | 55 / 49 | 607 | — | £380.00 | |
| Drunken Rhinoceros 128 | 26" | Double-Wall 26" | 800g | 128 / 120 | 489 | — | £569.00 | |
| Wild Dragon III 90 | 26" | Double-Wall 26" | 560g | 90 / 83 | 498 | — | £451.00 | |
| Black Eagle II 65 | 26" | Double-Wall 26" | 550g | 65 / 58 | 511 | — | £356.00 | |
| Wild Dragon II 85-27 | 27.5" | Double-Wall 27.5" | 610g | 85 / 78 | 523 | — | £427.00 | |
| Wild Dragon III 90-27 | 27.5" | Double-Wall 27.5" | 600g | 90 / 83 | 523 | — | £451.00 | |
| Black Eagle II 65-27 | 27.5" | Double-Wall 27.5" | 580g | 65 / 58 | 535 | — | £356.00 |
4 rims

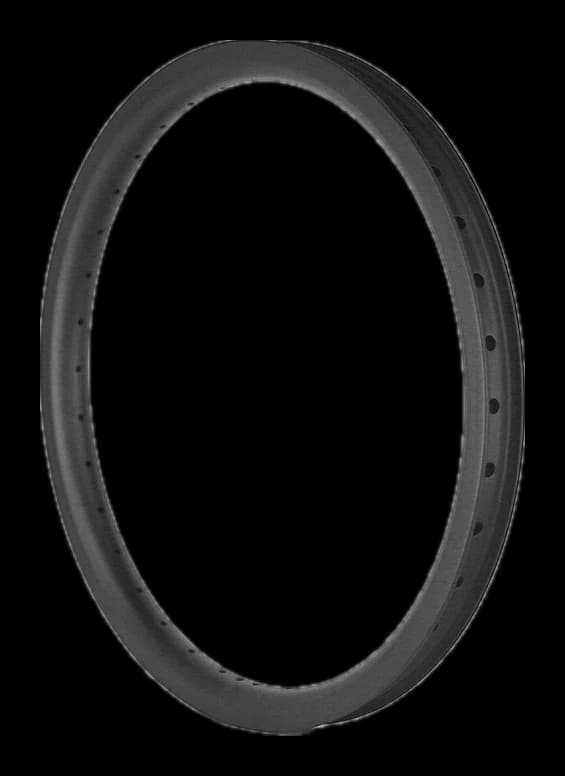

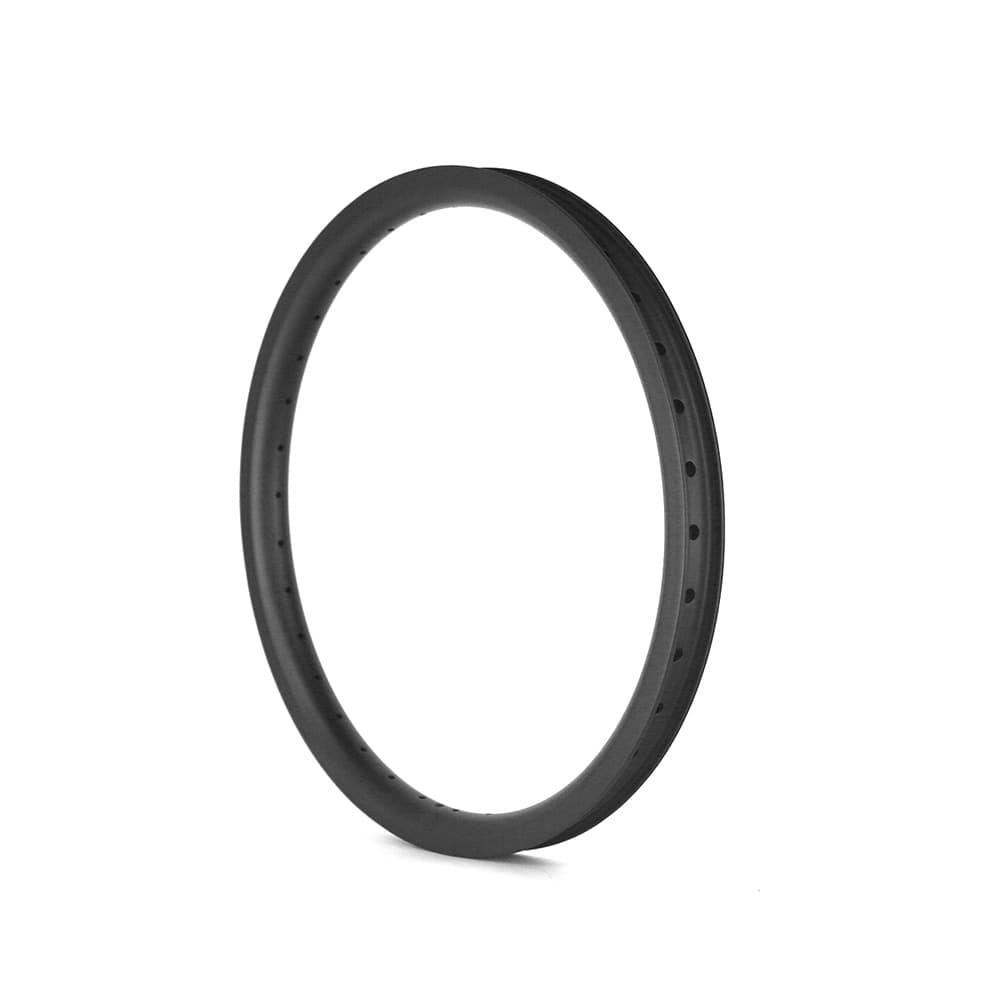

BMX
Where to start
Every bmx rim
Click an orange heading (Size, Weight or Price) to sort the list.
| Model | Range | Ext / int (mm) | ERD | Tyre | ||||
|---|---|---|---|---|---|---|---|---|
| BMX 28-406D | 20" | BMX Rim | 300g | — | — | — | £309.00 | |
| Premium BMX 50-451 | 20" | BMX Rim | 320g | — | 370 | 22 ~ 41mm | £289.00 | |
| BMX 30-255 | 14" | BMX Rim | 195g | — | 216 | 27 ~ 51mm | £235.00 | |
| BMX 30-507 | 24" | BMX Rim | 420g | — | 471 | 27 ~ 51mm | £255.00 |
6 products

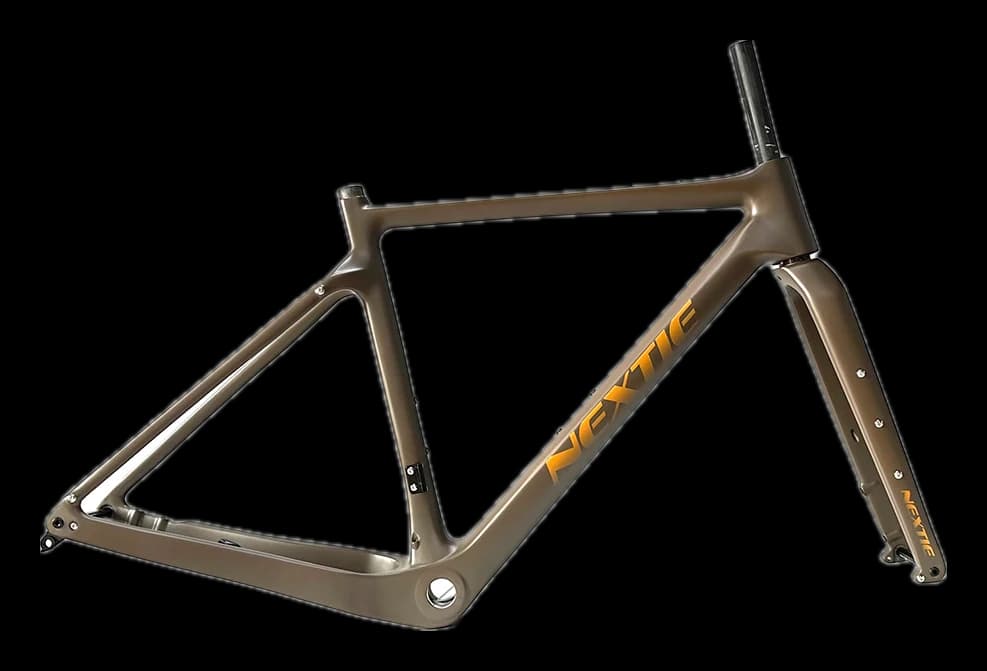

Frames & wheels

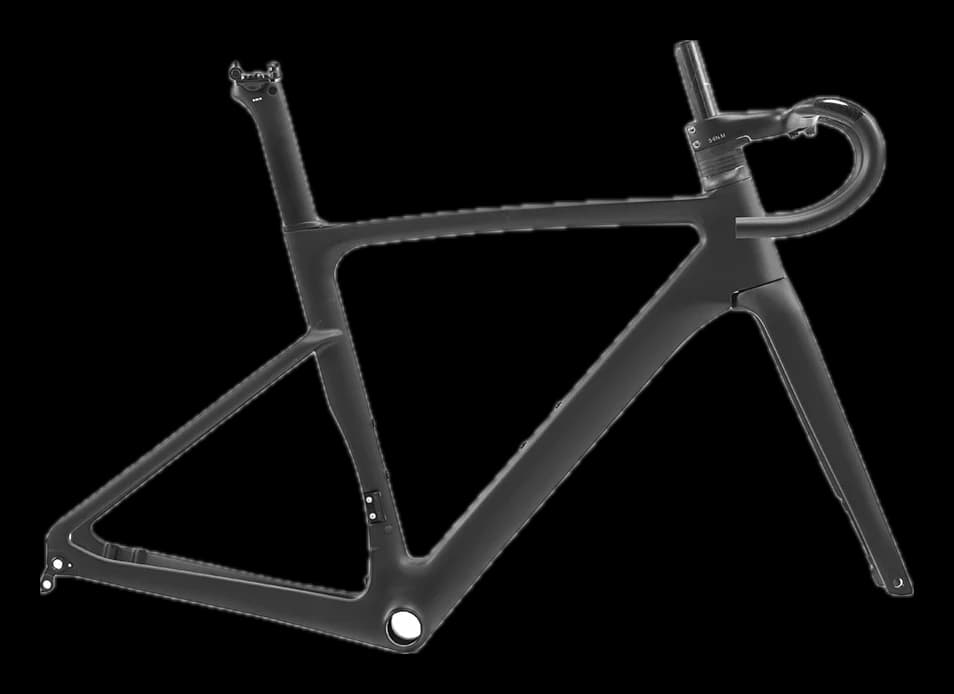

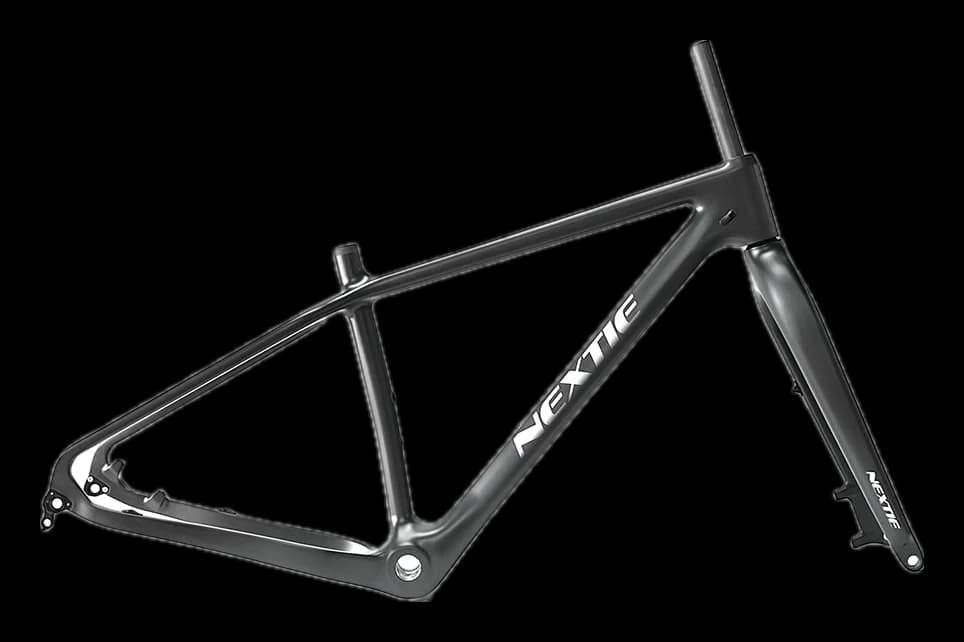

Carbon framesets for road, gravel and fat bikes, disc wheels and the fat bike fork. Made to order: we order yours in from Nextie when you buy. Looking for a complete wheelset? See the factory-built wheelsets.
23 products
Accessories

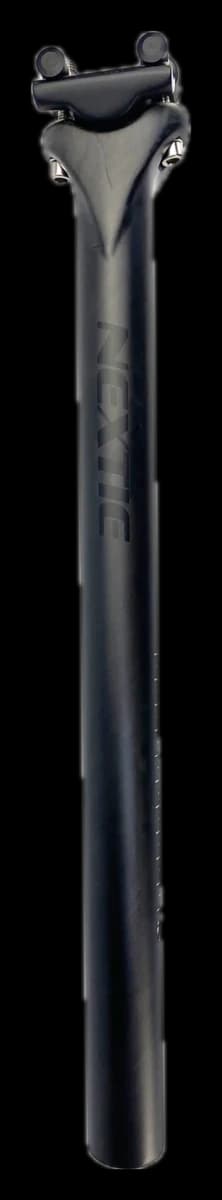

Carbon handlebars, seatposts, spokes and bottle cages, tubeless kits, brake pads and thru axles. Building a wheel? Nextie hubs are in the wheel builder.

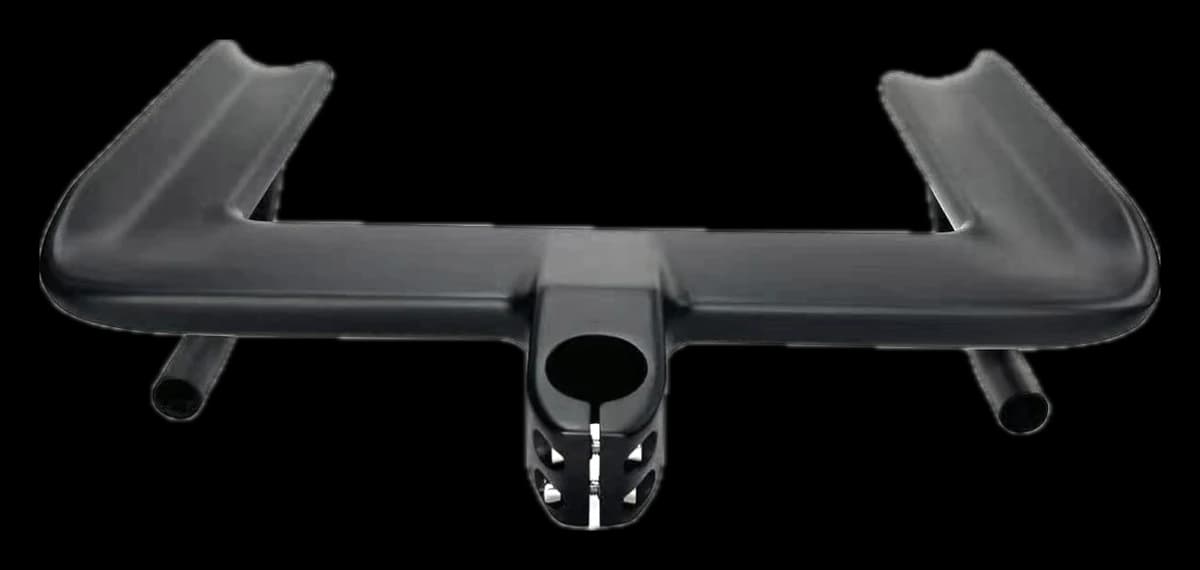

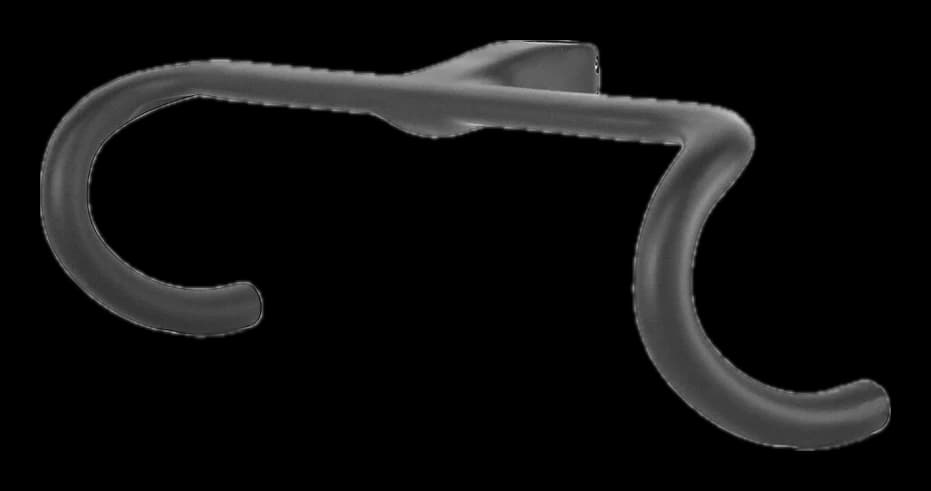

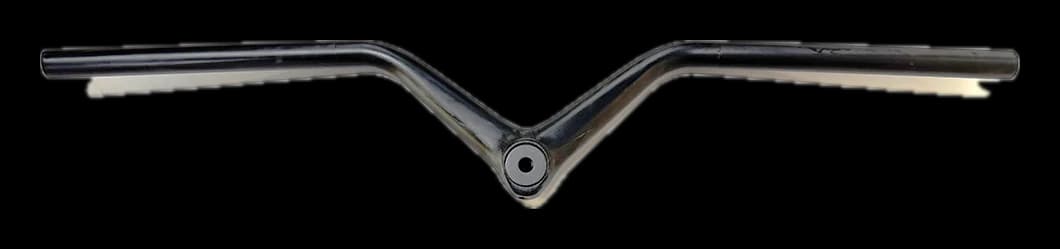

Handlebars

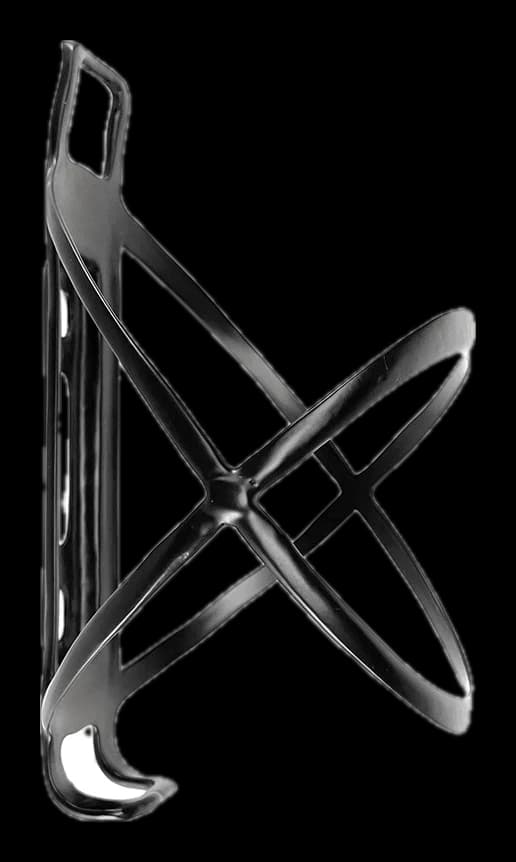

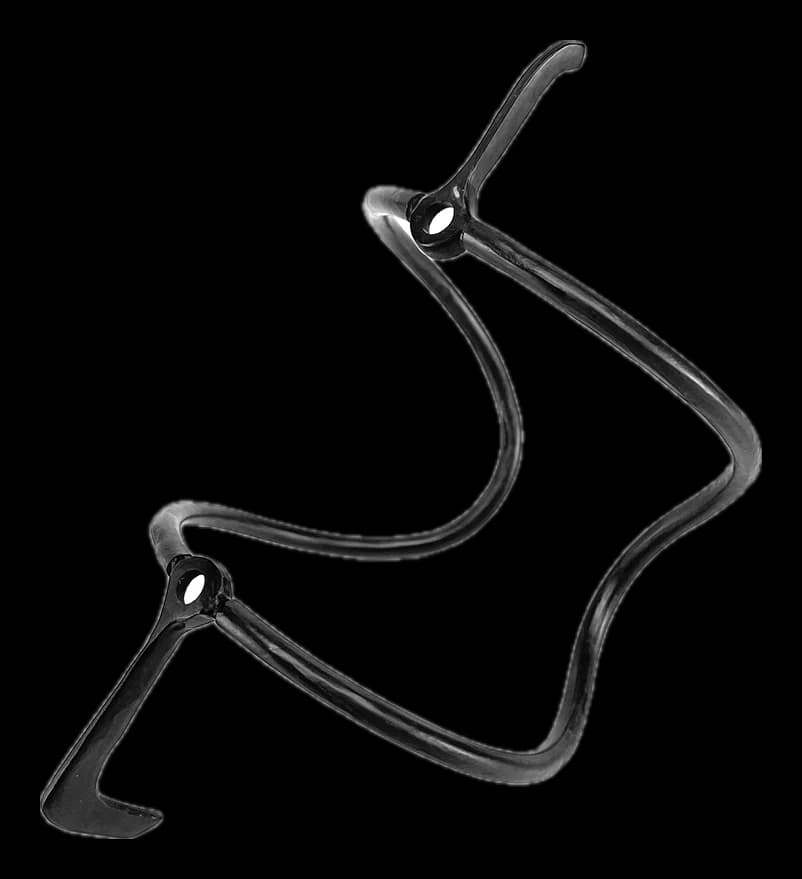

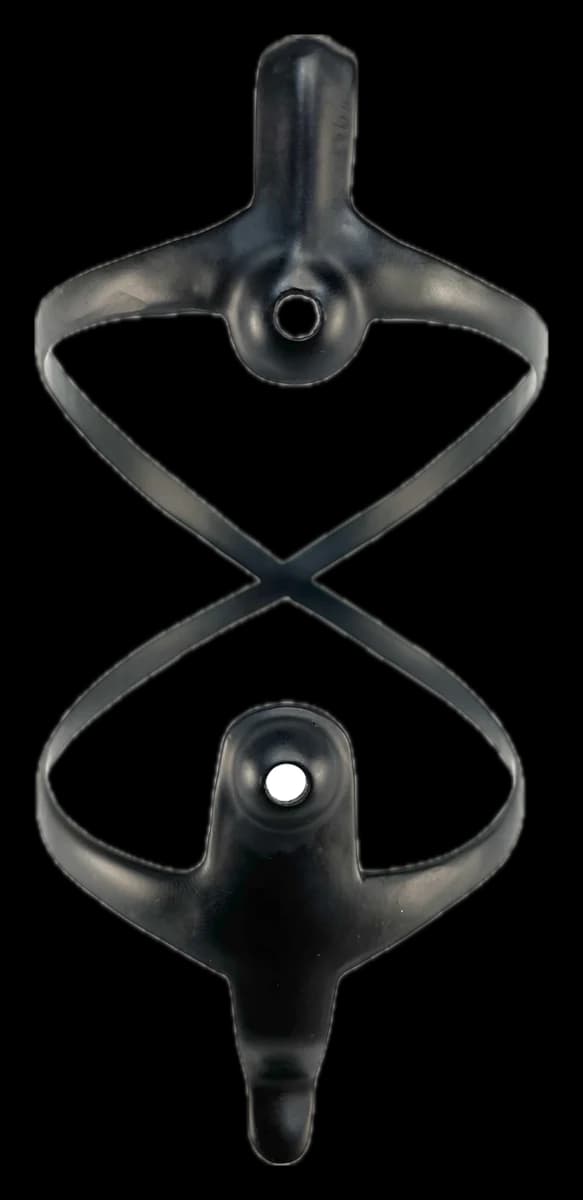

Bottle cages

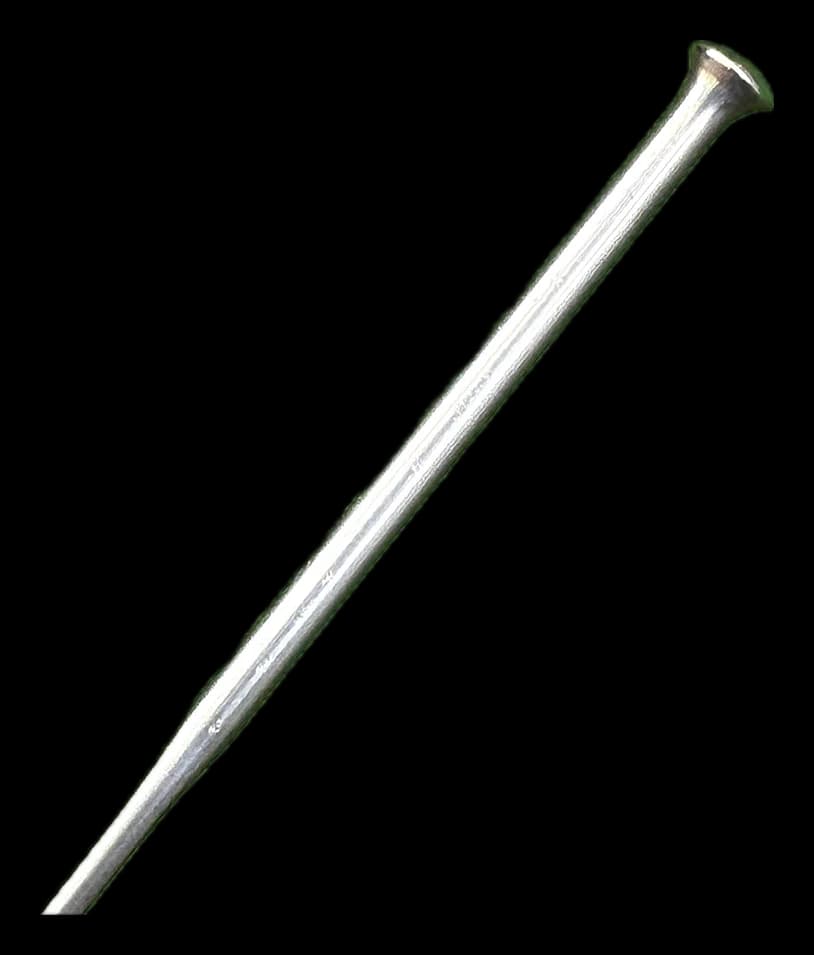

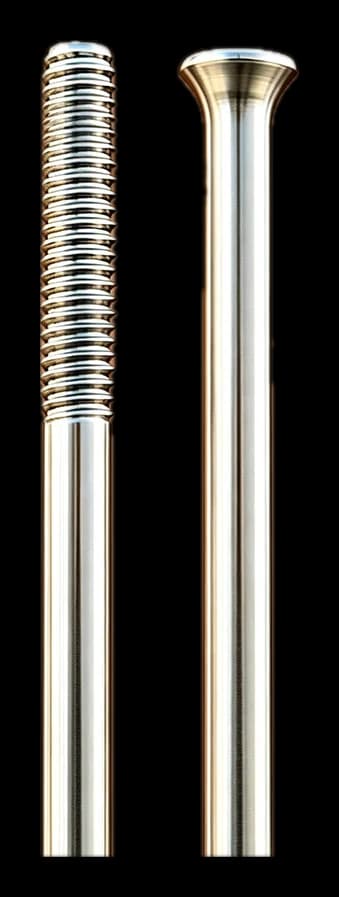

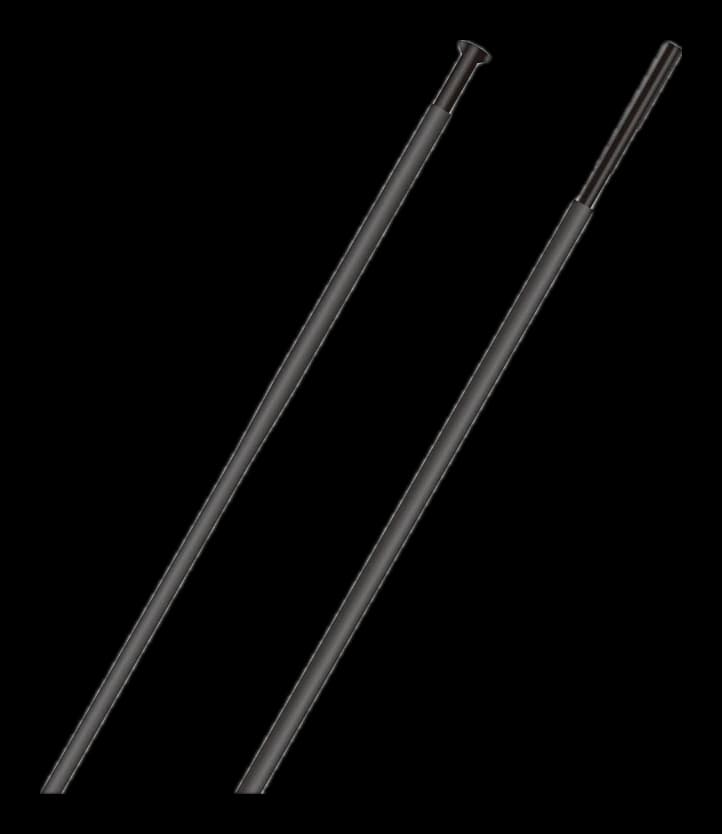

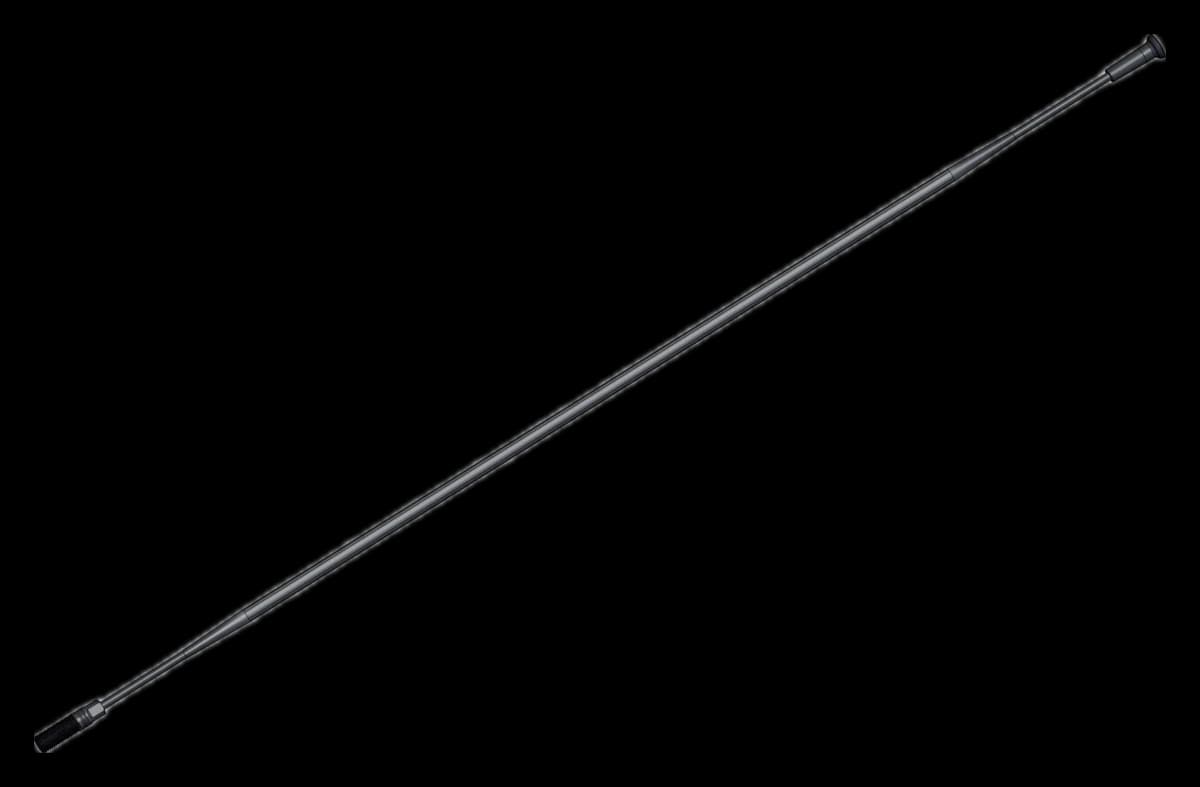

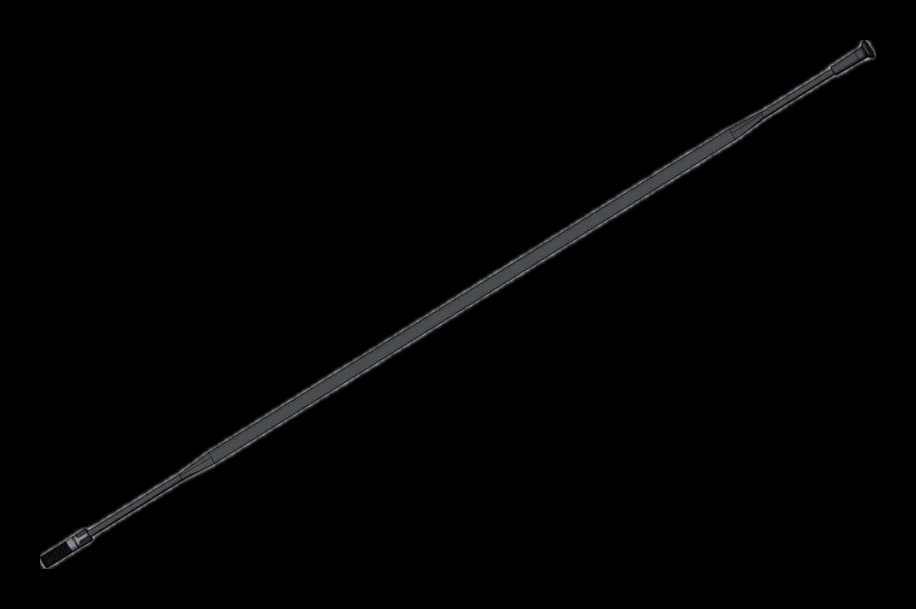

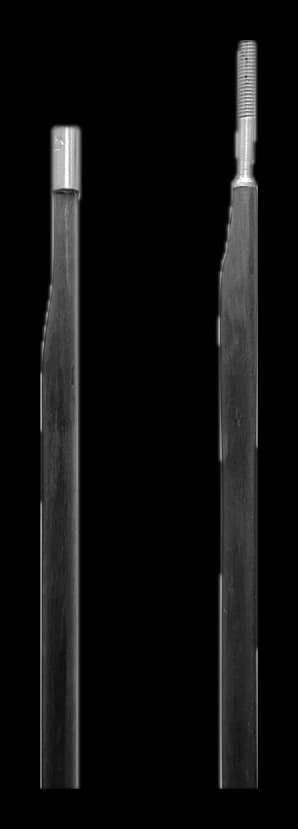

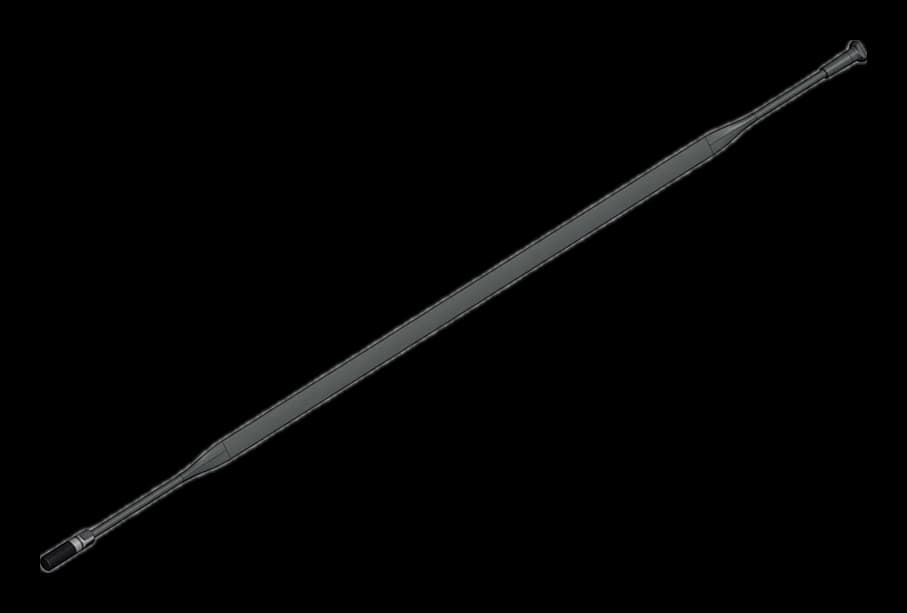

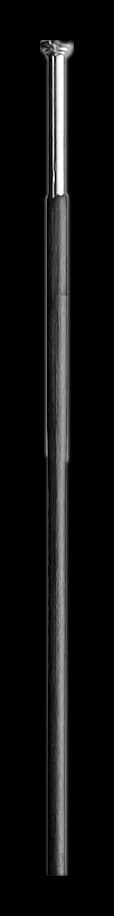

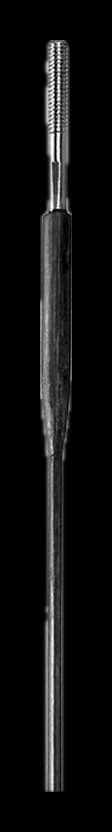

Spokes

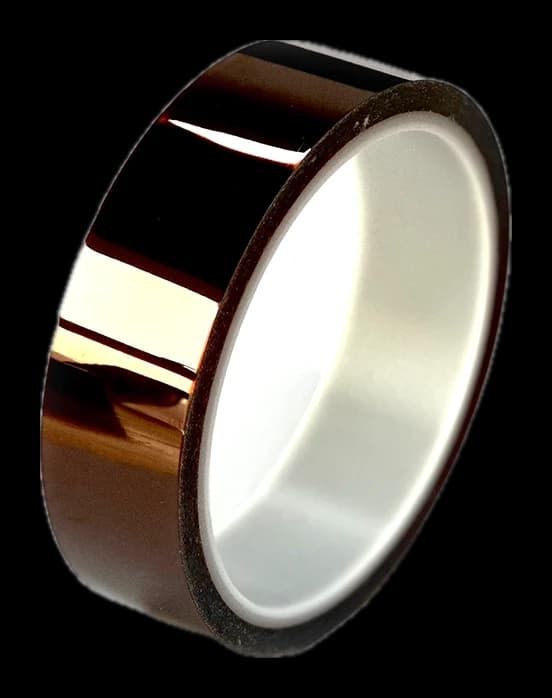

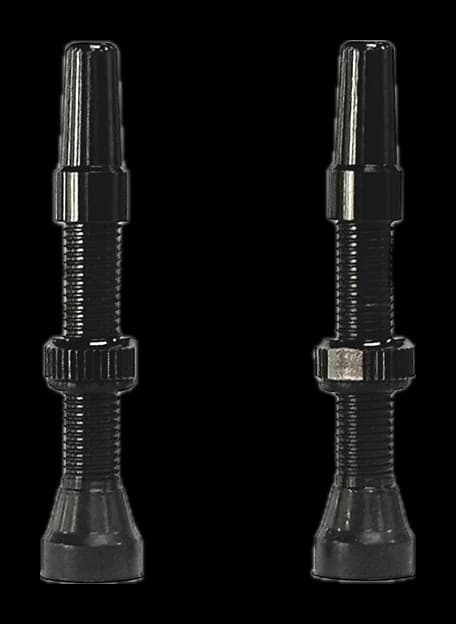

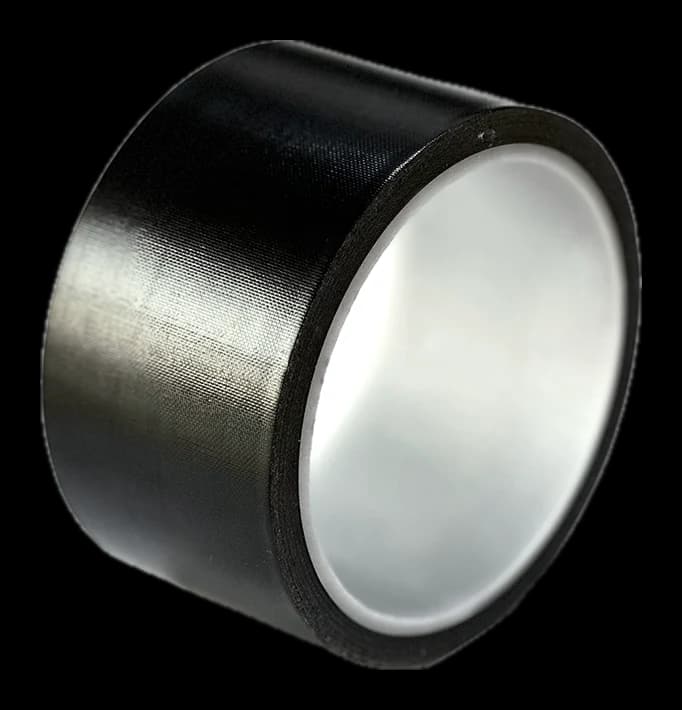

Tubeless

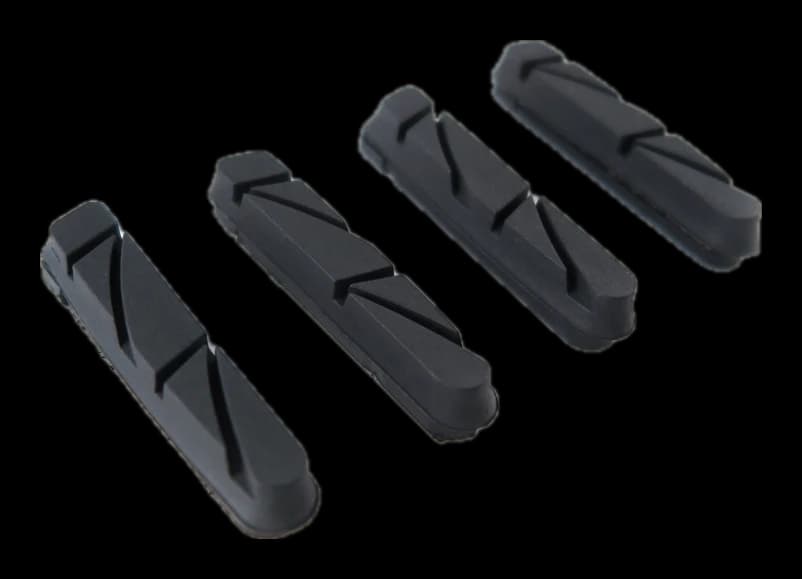

Brake pads
Made to order: we order your rim from Nextie when you buy — about 6 weeks to arrive. Want it built into a wheel? Use the wheel builder and we'll quote hub, spokes and build together.
