From the maker
Full specification
Basic
| Code | NXT451BMX50 |
|---|---|
| Rim Type | Clincher |
| Materials | Carbon Fiber |
| Warranty | 3 Years |
Dimensions
| Size | 20 inch / ISO 451 |
|---|---|
| ERD (Effective Rim Diameter) | 370mm |
| Drillings | 20, 24, 28, 32, 36 |
| External Width | 25mm |
| Rim Height | 50mm |
| Weight | 320g |
| Valve Hole Diameter | 6.5mm |
| Spoke Holes Diameter | 4.5mm |
| Assembly Hole Diameter | 7.5mm |
| Drain Holes | No (leave a note if you prefer Drain Holes) |
Appearance
| Carbon Weave | UD / 3K / 12K |
|---|---|
| Finish | Matte / Glossy |
Recommendation
| Tire Size | 22 ~ 41mm |
|---|---|
| Tire Pressure | 34 ~ 65psi |
| Spoke Tension | 100 ~ 130kgf |
| Max System Weight | 80 ~ 150kg |
About this rim
The details
The profile drawing:

Nextie · BMX rims

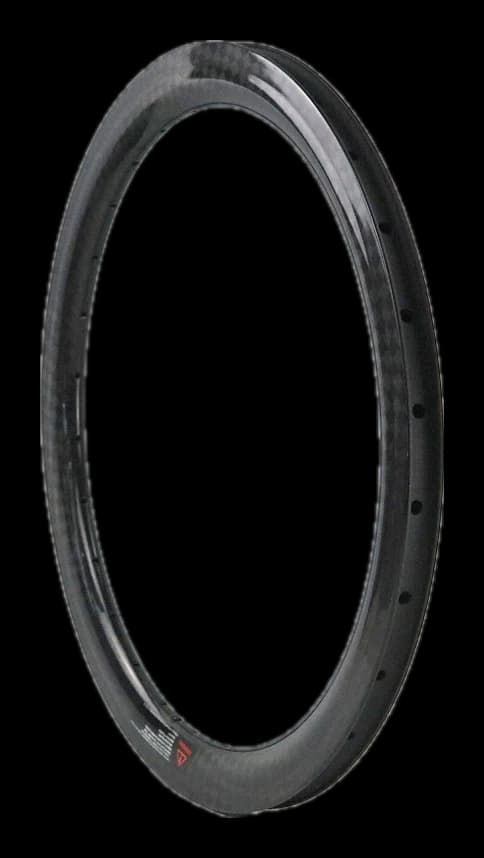

Nextie Premium BMX 50-451 carbon rim
£289
Inc. VAT · UK delivery calculated at checkout · free UK delivery over £200
Ordered in for you · About 6 weeks
We don't hold this in stock. As an authorised Nextie distributor we order it in for you when you buy — usually about 6 weeks. We'll email you when it ships.
£289
Ordered in for you: About 6 weeks. We email you when it arrives.
- ✓ Free UK delivery over £200, or collect from the workshop
- ✓ 14-day returns on online orders
- ✓ Secure payment: card, Apple Pay, Google Pay or PayPal
Secure checkout by Stripe — card, Apple Pay, Google Pay or PayPal. We never see your card details. Returns and cancellations.
| Wheel size | 20" |
|---|---|
| Weight | 320g |
| ERD | 370 mm |
| External / internal width | — |
| Tyre range | 22 ~ 41mm |
| Max system weight | — |
Details
Nextie Premium BMX 50-451 20" BMX carbon rim. Ordered in for you from Nextie, or have us hand-build it into a wheel.
Want it fitted? Book it into the workshop.
