Bespoke titanium frame

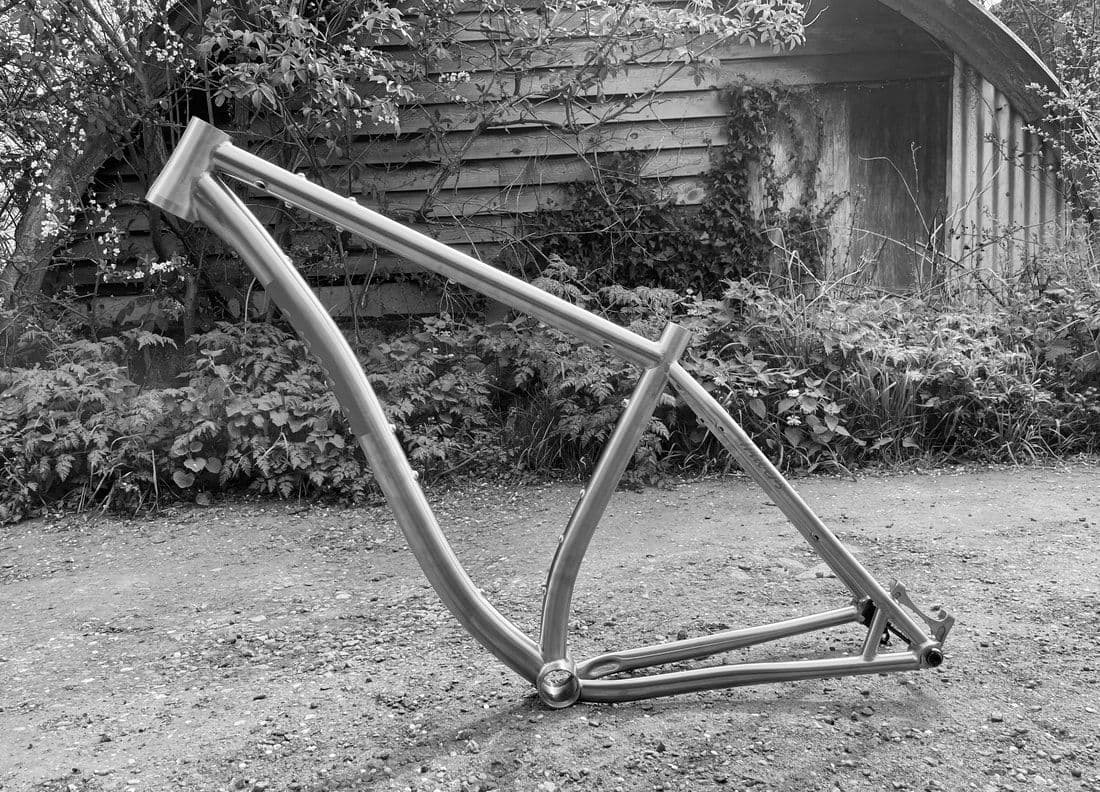

A titanium frame for 32-inch wheels
Big wheels, a long wheelbase and a frame drawn around your numbers.
From £2,199
Includes VAT and free UK delivery. About 12 weeks from drawing approval.
- Sizes
- Medium to XXL
- Wheels
- 32"
- Tyres
- 2.2" to 2.6"
- Warranty
- 5 years
A 32-inch wheel is a lot of wheel. It rolls over rough ground easily and carries speed, which suits long rough days, bikepacking and taller riders. It also needs a frame designed for it: a seat tube that curves round the rear tyre, a longer chainstay, and a front end set at the right height.
This frame is drawn for exactly that. Start from the standard 32-inch frame in your size, then change what you like. The designer shows the wheelbase, bottom bracket height and tyre gaps as you go.
What you can choose
- Sizes
- Medium to XXL. A 32-inch wheel is too big for a small frame, so there is no Small.
- Tyres and stays
- Tyres from 2.2 to 2.6 inches, with 465 mm chainstays as standard to give the wheel room.
- A fork to match
- The standard frame is drawn around a 498 mm axle-to-crown fork, the same as my EVO Prong carbon fork.
- Mounts and fittings
- T47 or English-threaded bottom bracket, UDH or bolt-on hanger, and free options for bottle bosses, bag mounts, racks and internal routing.
See the standard geometry of every size
| Size | Reach | Stack | Head angle | Seat angle | Chainstay | BB drop | Seat tube |
|---|---|---|---|---|---|---|---|
| Medium | 450 | 625.2 | 67° | 74.5° | 465 | 95 | 430 |
| Large | 475 | 639 | 67° | 74.5° | 465 | 95 | 470 |
| XL | 500 | 652.8 | 67° | 74.5° | 465 | 95 | 520 |
| XXL | 525.5 | 666.6 | 67° | 74.5° | 465 | 95 | 580 |
Millimetres unless shown. Seat tube is bottom bracket centre to top tube centre. Every number can be changed in the designer, within limits that keep the frame sound. How to choose a size
On every frame
- Material: Ti-3Al-2.5V titanium, brushed finish
- Head tube: Engraved with the Travers logo
- Down tube: Travers logo bead-blasted on the underside
- Rear axle: 12 x 148 mm Boost, replaceable UDH hanger
- Seat tube: 34.9 mm, takes a 31.6 mm seatpost
- Brakes: Disc, 160 mm rotor
- Mounts: Bottle cage mounts on the down tube and seat tube
Made to order in titanium, then inspected, checked and cleaned by me before it reaches you. Covered by my 5-year frame warranty. Why titanium?
Options and prices
Rack, mudguard and bag mounts, extra bottle bosses and internal routing are free.
See every option and price
| Titanium nitride finish | +£399 |
|---|---|
| Pinion gearbox frame | +£350 |
| Sliding dropouts | +£20 |
| Belt-drive splitter | +£10 |
| Couplers (travel frame) | Ask |
| Extra bottle bosses | Free |
| Rack and mudguard mounts | Free |
| Internal cable routing | Free |
| Post mount brake (instead of flat mount) | Free |
| Dropper post routing | Free |
| Top tube bag mounts | Free |
Questions
Is a 32-inch wheel right for me?
It suits bikepacking, rough ground and taller riders best. My guide to 32-inch wheels covers what fits and what changes, and is worth a read before you decide.
Will the EVO Prong fork fit?
The standard frame is drawn around a fork with a 498 mm axle-to-crown length, the same as the EVO Prong carbon fork. I check the fork, frame and tyre clearance together when I go through your design.
Why is there no small size?
A 32-inch wheel is too big for a small frame: the front wheel would come too close to the pedals and down tube. The smallest size is Medium.
Other bespoke frames
Ready to design yours?
It takes a few minutes and it's free to ask. I check everything before I quote.
