Bespoke titanium frame
A titanium 29er mountain bike built around you
A hardtail drawn for how and where you ride, with your reach, stack, angles, tyre size and mounts.
From £2,199
Includes VAT and free UK delivery. About 12 weeks from drawing approval.
- Sizes
- Small to XXL
- Wheels
- 29"
- Tyres
- 2.1" to 3.0"
- Warranty
- 5 years
A mountain bike frame that fits changes how you handle the trail. Reach decides how roomy the cockpit feels, stack sets the height of your bars, and the head angle decides whether the front end is quick or calm. On a bespoke titanium frame you set all of those yourself.
Start from my standard 29er in your size, then move the sliders: chainstay length for rear wheel placement, BB drop, head and seat angles, fork length. The drawing is to scale with the wheels on the ground, so you can see the effect before you send it to me.
What you can choose
- Tyres
- From 2.1 to 3.0 inch tyres, with the clearance drawn in around the one you pick.
- Fittings
- T47 or English-threaded bottom bracket, tapered headset, and a UDH or bolt-on rear hanger to suit your drivetrain.
- Mounts and routing
- Bottle cage mounts on the down tube and seat tube as standard. Internal routing, dropper post routing and top tube bag mounts are free options.
- Details
- Brushed titanium, the Travers logo engraved on the head tube, and a seat tube sized for a 27.2, 30.9, 31.6 or 34.9 mm post.
See the standard geometry of every size
| Size | Reach | Stack | Head angle | Seat angle | Chainstay | BB drop | Seat tube |
|---|---|---|---|---|---|---|---|
| Small | 405.5 | 605.1 | 68.5° | 74° | 435 | 63 | 400 |
| Medium | 430.5 | 605.1 | 68.5° | 74° | 435 | 63 | 430 |
| Large | 455.5 | 619.1 | 68.5° | 74° | 435 | 63 | 470 |
| XL | 480.5 | 633.1 | 68.5° | 74° | 435 | 63 | 520 |
| XXL | 505.5 | 647 | 68.5° | 74° | 435 | 63 | 580 |
Millimetres unless shown. Seat tube is bottom bracket centre to top tube centre. Every number can be changed in the designer, within limits that keep the frame sound. How to choose a size
On every frame
- Material: Ti-3Al-2.5V titanium, brushed finish
- Head tube: Engraved with the Travers logo
- Down tube: Travers logo bead-blasted on the underside
- Rear axle: 12 x 148 mm Boost, replaceable UDH hanger
- Seat tube: 34.9 mm, takes a 31.6 mm seatpost
- Brakes: Disc, 160 mm rotor
- Mounts: Bottle cage mounts: 3 on the down tube, 2 on the seat tube
Made to order in titanium, then inspected, checked and cleaned by me before it reaches you. Covered by my 5-year frame warranty. Why titanium?
Options and prices
Rack, mudguard and bag mounts, extra bottle bosses and internal routing are free.
See every option and price

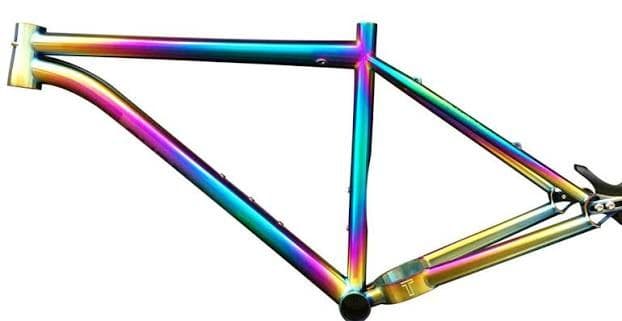

| Titanium nitride finish | +£399 |
|---|---|
| Pinion gearbox frame | +£350 |
| Sliding dropouts | +£20 |
| Belt-drive splitter | +£10 |
| Couplers (travel frame) | Ask |
| Extra bottle bosses | Free |
| Rack and mudguard mounts | Free |
| Internal cable routing | Free |
| Post mount brake (instead of flat mount) | Free |
| Dropper post routing | Free |
| Top tube bag mounts | Free |
Questions
Is this a hardtail or full suspension?
It is a hardtail frame, drawn around a suspension or rigid fork. The standard frame uses a 506 mm axle-to-crown fork, and you can change the fork length in the designer.
Can it take a dropper post?
Yes. Dropper post routing is a free option, and you can choose the seatpost size the seat tube takes.
What if I'm between sizes?
Choose the size closest to you and adjust reach and stack, or use Compare my bike to draw your current bike over the new frame. The sizing guide explains the numbers.
Other bespoke frames
Ready to design yours?
It takes a few minutes and it's free to ask. I check everything before I quote.
