Bespoke titanium frame

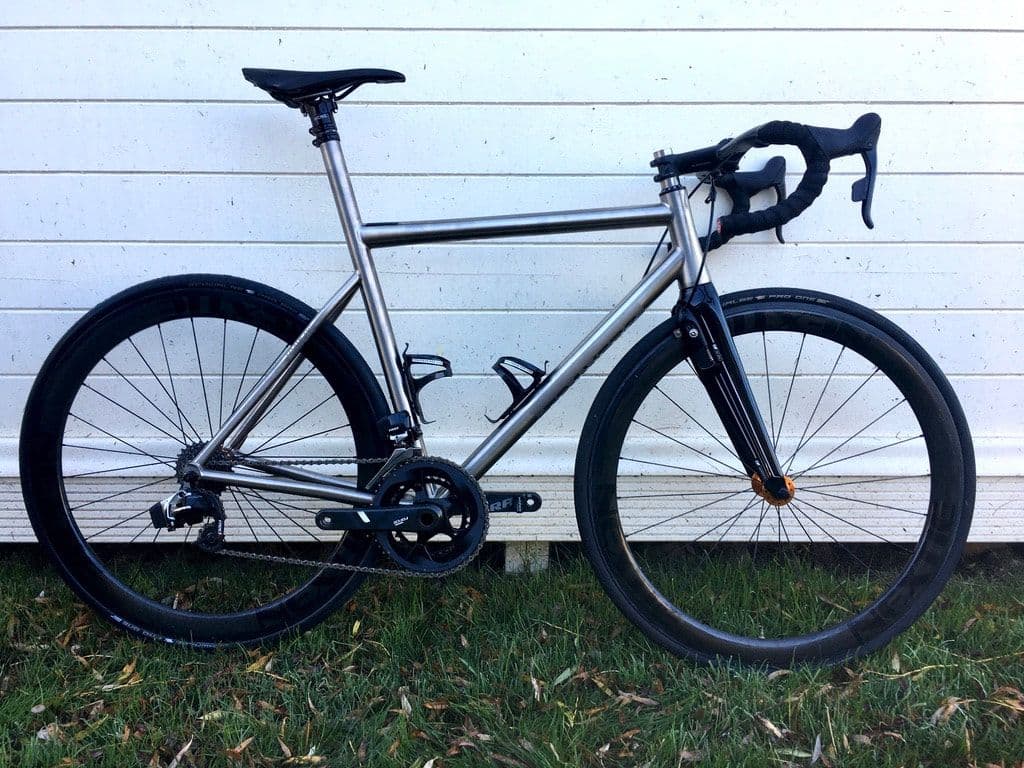

A titanium endurance road frame, made to fit
A taller front end, a calmer ride and room for bigger tyres, drawn around your numbers.
From £1,999
Includes VAT and free UK delivery. About 12 weeks from drawing approval.
- Sizes
- XXS to XXL
- Wheels
- 700c
- Tyres
- 28 mm to 38 mm
- Warranty
- 5 years
An endurance frame is made for long days: a higher front end so you can sit comfortably for hours, slightly slacker steering for steadiness, and room for wider tyres that take the edge off rough roads. Titanium suits it, because it rides smoothly and doesn't wear out.
Start from the size nearest you in the seven-size range, which follows a full geometry chart, then change what you like. The designer shows the stack, reach, wheelbase and tyre clearance as you go.
What you can choose
- Sizes
- XXS (47 cm) to XXL (61 cm), seven in all, with a taller stack than the race frame.
- Tyres
- From 28 to 38 mm. The standard is 32 mm.
- Mudguards and mounts
- Rack and mudguard mounts, bottle bosses and internal routing are all free.
- Brakes and axle
- Flat mount disc brakes, a 12 x 142 mm thru axle, and a 68 mm or 73 mm English-threaded bottom bracket.
See the standard geometry of every size
| Size | Reach | Stack | Head angle | Seat angle | Chainstay | BB drop | Seat tube |
|---|---|---|---|---|---|---|---|
| XXS47 cm, 360 mm bars | 372 | 522 | 71.3° | 75° | 418 | 74 | 425 |
| XS49 cm, 380 mm bars | 378 | 534 | 71.8° | 75° | 418 | 74 | 445 |
| S52 cm, 380 mm bars | 382 | 557 | 72° | 74.5° | 418 | 73 | 465 |
| M54 cm, 400 mm bars | 386 | 578 | 72.2° | 74° | 418 | 72 | 485 |
| L56 cm, 400 mm bars | 389 | 599 | 72.5° | 73.5° | 418 | 72 | 505 |
| XL58 cm, 420 mm bars | 394 | 619 | 73° | 73.1° | 418 | 72 | 525 |
| XXL61 cm, 420 mm bars | 402 | 638 | 73° | 73° | 418 | 72 | 555 |
Millimetres unless shown. Seat tube is bottom bracket centre to top tube centre. Every number can be changed in the designer, within limits that keep the frame sound. How to choose a size
On every frame
- Material: Ti-3Al-2.5V titanium, brushed finish
- Head tube: Engraved with the Travers logo
- Down tube: Travers logo bead-blasted on the underside
- Rear axle: 12 x 142 mm thru axle
- Seat tube: 31.8 mm, takes a 27.2 mm seatpost
- Brakes: Flat mount disc, 160 mm rotor
- Mounts: Bottle cage mounts on the down tube and seat tube, mudguard mounts
Made to order in titanium, then inspected, checked and cleaned by me before it reaches you. Covered by my 5-year frame warranty. Why titanium?
Options and prices
Rack, mudguard and bag mounts, extra bottle bosses and internal routing are free.
See every option and price
| Titanium nitride finish | +£399 |
|---|---|
| Pinion gearbox frame | +£350 |
| Sliding dropouts | +£20 |
| Belt-drive splitter | +£10 |
| Couplers (travel frame) | Ask |
| Extra bottle bosses | Free |
| Rack and mudguard mounts | Free |
| Internal cable routing | Free |
| Post mount brake (instead of flat mount) | Free |
| Dropper post routing | Free |
| Top tube bag mounts | Free |
Questions
What is the difference between endurance and race?
The endurance frame is taller at the front: a size 56 has a stack of 599 mm against 568 mm on the race frame. It also has a slightly longer chainstay and takes bigger tyres, up to 38 mm.
Will it take mudguards?
Yes. Rack and mudguard mounts are a free option, and the endurance frame has room for tyres up to 38 mm, so mudguards usually fit.
How do I choose a size?
Choose the size nearest you from XXS to XXL, then adjust reach and stack. Compare my bike draws your current bike over the new frame, and the sizing guide explains what to measure.
