Nextie · BMX rims

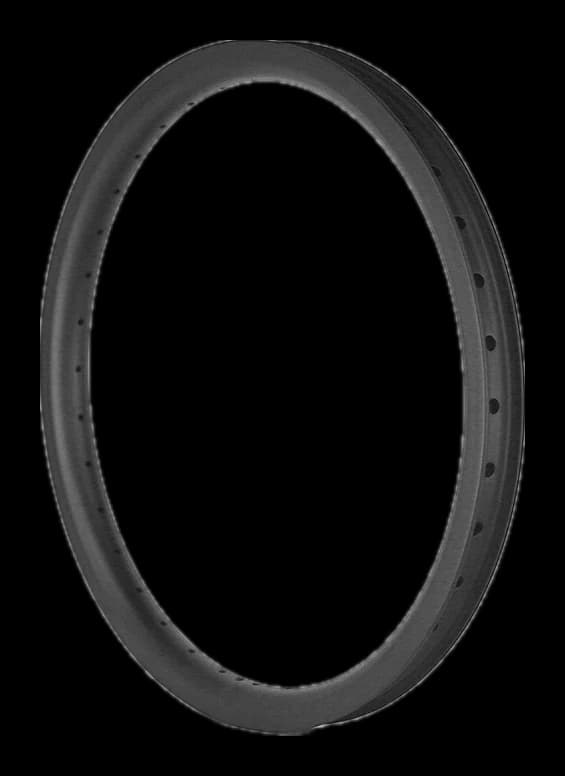

Nextie BMX 30-507 24" carbon rim

Name: Nextie BMX 30-507 24" carbon rim
Brand: Nextie
SKU: nextie-bmx-30-507-rim
Price: 255.00 GBP
Availability: BackOrder

£255

Inc. VAT · UK delivery from £20 · free UK delivery over £200

Delivering to

Ordered in for you · About 6 weeks

I don't hold this in stock. As an authorised Nextie distributor I order it in for you when you buy, usually about 6 weeks. I'll email you when it ships.

Carbon WeaveUD, 3K and 12K are the look of the outer layer only; the rim underneath is the same.FinishFree Coating is the bare carbon with no lacquer. Matte and Glossy are clear coats over it.Number of Spoke HolesMatch your hub: most are 28 or 32. 28 is lighter; 32 is stronger for heavier riders or loads.Spoke Holes DiameterBrake Track

Nextie decals: None

"Other": tell me the colour you'd like when you order and I'll pass it to Nextie.

£255

Qty

✓ Free UK delivery over £200, or collect from the workshop
✓ Ordered in or built for you, so it can't be cancelled once I've ordered it. Faulty or not as described: full refund
✓ Secure payment: card, Apple Pay, Google Pay or PayPal

Secure checkout by Stripe: card, Apple Pay, Google Pay or PayPal. I never see your card details. Returns and cancellations.

5.0 from 17 Google reviews · an independent workshop in Rochford since 2012

“Lovely guy, very helpful, friendly and accommodating. Will use again!” – Jason, September 2026

Read them on Google

Sold by Michael at Travers Bikes, Canewdon, Essex: I answer questions myself. Warranty · Ask about this part

Wheel size	24"
Weight	420g g
ERD	471 mm
External / internal width	–
Tyre range	27 ~ 51mm
Max system weight	–

Details

Nextie BMX 30-507 24" BMX carbon rim. Ordered in for you from Nextie, or have us hand-build it into a wheel.

Want it fitted? Book it into the workshop.

From the maker

Full specification

Basic

Code	NXT507BMX30
Rim Type	Clincher
Materials	Toray T700 Carbon Fiber
Warranty	2 Years

Dimensions

Size	24 inch / ISO 507
ERD (Effective Rim Diameter)	471mm
Drillings	16, 18, 20, 24, 28, 32, 36
External Width	30mm
Rim Height	30mm
Weight	420g
Valve Hole Diameter	6.5mm (Presta)
Spoke Holes Diameter	4.5mm
Assembly Hole Diameter	7.5mm
Drain Holes	No (leave a note if you prefer Drain Holes)
Tubeless Compatible	Yes

Appearance

Carbon Weave	UD / 3K / 12K
Finish	Matte / Glossy

Recommendation

Tire Size	27 ~ 51mm
Tire Pressure	25 ~ 46psi
Spoke Tension	80~130kgf
Max System Weight	80 ~ 150kg
