From the maker
Full specification
Basic
| Code | NXT27AM35 |
|---|---|
| Rim Type | Clincher (Hookless) |
| Materials | Toray T700 Carbon Fibers |
| Edition | Standard Edition |
| ASTM Classification | Condition 4 |
| Warranty | 2 Years |
Dimensions
| Size | 27.5" / 650B |
|---|---|
| BSD (Bead Seated Diameter) | 584mm |
| ERD (Effective Rim Diameter) | 539mm |
| Drillings | 28, 32 |
| External Width | 35mm |
| Internal Width | 29mm |
| Rim Height | 32mm |
| Weight | 440g (AM) / 470g (Enduro) |
| Valve Hole Diameter | 6.5mm (Presta) |
| Spoke Holes Diameter | 4.5mm |
| Spoke Holes Angle | ± 6° |
| Assembly Hole Diameter | 7.5mm |
| Drain Holes | No |
| Tubeless Compatible | Yes |
Appearance
| Carbon Weave Availability | UD / 3K / 12K |
|---|---|
| Finish | Free Coating / Matte / Glossy |
Recommendation
| Tire Size | 2.0" ~ 2.65" |
|---|---|
| Tire Pressure | 23 ~ 39psi |
| Spoke Tension | 100 ~ 130kgf |
| Max System Weight | 132Kg |
Discipline
| Discipline | Trail, All Mountain, Big Mountain, Freeride, Enduro (and Super Enduro) |
|---|
About this rim
The details
Introduction
In the year of 2015 we designed and developed the RM27, RM30, AM35 and AM40 series of carbon fiber mountain rims. These four mountain rims incorporate aerodynamic design concepts, which are beautiful in appearance and extremely strong. While, because of its unique rounded design, it is difficult to reduce the weight. Nonetheless, they have remained a user favorite mountain rims over the years and have become a classic mountain rim range of NEXTIE's. The RM series and AM series have become the proud products of NEXTIE. They are the starting point for our progressive development and production of lighter and stronger carbon fiber mountain bike rims.
The weight of model NXT27AM35 is 440g. The profile drawing of this rim is as below.
This rim could be used for AM (All Mountain), Trail and Enduro riding. The tire size for this model of rim is recommended at 2.0" ~ 2.65". The tire pressure is recommended at 23 ~ 39psi.
What's in the Box
Carbon Rim(s)
Nextie · MTB rims

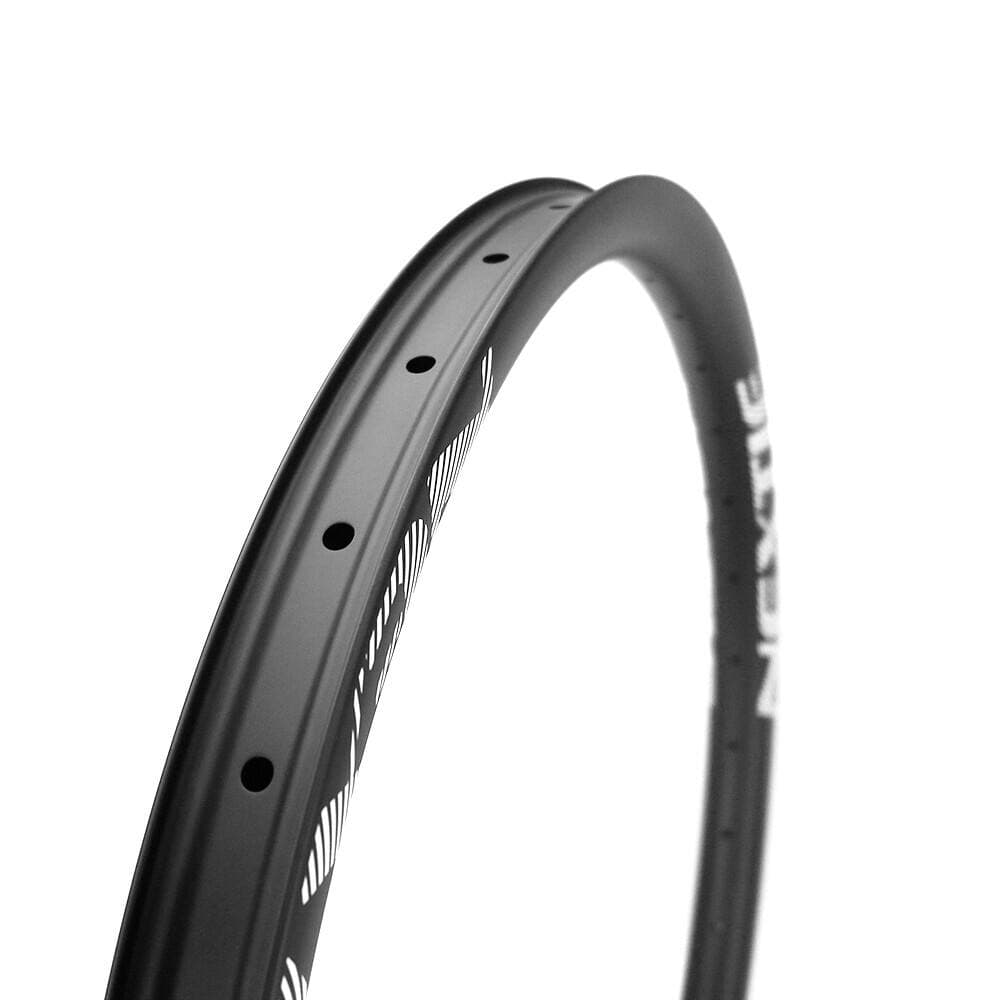

Nextie NXT27AM35 MTB carbon rim
£285
Inc. VAT · UK delivery calculated at checkout · free UK delivery over £200
We don't hold this in stock. As an authorised Nextie distributor we order it in for you when you buy — usually about 6 weeks. We'll email you when it ships.
£285
Ordered in for you: About 6 weeks. We email you when it arrives.
- ✓ Free UK delivery over £200, or collect from the workshop
- ✓ 14-day returns on online orders
- ✓ Secure payment: card, Apple Pay, Google Pay or PayPal
Secure checkout by Stripe — card, Apple Pay, Google Pay or PayPal. We never see your card details. Returns and cancellations.
| Wheel size | 27.5" |
|---|---|
| Weight | 440g/470g |
| ERD | 539 mm |
| External / internal width | 35 / 29 mm |
| Tyre range | 2.0"–2.65" |
| Max system weight | 132 kg |
Want it built into a wheel? Use the wheel builder.
Details
Nextie NXT27AM35 27.5" MTB carbon rim. Ordered in for you from Nextie, or have us hand-build it into a wheel.
Want it fitted? Book it into the workshop.
