From the maker
Full specification
Basic
| Code | NXT27XML35 |
|---|---|
| Rim Type | Clincher (Hookless) |
| Materials | Toray T800 + T700 Carbon Fibers |
| Edition | Premium Edition |
| ASTM Classification | Condition 4 |
| Warranty | 3 Years |
| Release Time | February 2023 (Upgrade 2024) |
Dimensions
| Size | 27.5" / 650B |
|---|---|
| BSD (Bead Seated Diameter) | 584mm |
| ERD (Effective Rim Diameter) | 551mm |
| Drillings | 28, 32 |
| External Width | 35mm |
| Internal Width | 29mm |
| Rim Height | 26mm |
| Weight | 340g (AM) / 380g (Enduro) |
| Valve Hole Diameter | 6.5mm (Presta) |
| Spoke Holes Diameter | 4.5mm |
| Spoke Holes Angle | ± 6° |
| Spoke Holes Offset | 2.6mm |
| Assembly Hole Diameter | 7.5mm |
| Drain Holes | No |
| Tubeless Compatible | Yes |
Appearance
| Carbon Weave Availability | UD / 3K / 12K |
|---|---|
| Finish | Free Coating / Matte / Glossy |
Recommendation
| Tire Size | 2.1" ~ 2.6" |
|---|---|
| Tire Pressure | 22 ~ 34 psi |
| Spoke Tension | 100 ~ 130kgf |
| Max System Weight | 132Kg (AM) / 134Kg (Enduro) |
Discipline
| Discipline | Trail, All Mountain, Big Mountain, Freeride, Enduro (and Super Enduro) This rim is designed for tubeless or tubeless-ready tires only. Inner tubes are ok, but the tire must have tubeless beads for safe retention. |
|---|
About this rim
The details
Introduction
The carbon fiber bicycle industry has been innovating and advancing all the time. Being lighter and stronger has always been the pursuit of the professional bicycle industry,
In the year of 2017, we first tried to use Toray T800 carbon fiber material and to improve the production process, reducing a weight of 60g for the XC mountain rim, which is a huge improvement. In the year of 2023, we developed this model of rim NXT27XML35. With the newest premium layer-up system applied on this rim, the strength increased a lot. For the AM version, the positive stiffness test result gets 120J. For the Enduro version, the result gets 132J. That's superb.
Upgrade 2024:
The weight of model NXT27XML35 is only 340g for AM and 380g for Enduro. The profile drawing of this rim is as below.
This rim could be used for AM (All Mounatin), Trail and Enduro riding. The tire size for this model of rim is recommended at 2.0" ~ 2.5". The tire pressure is recommended at 23 ~ 39psi.
What's in the Box
Carbon Rim(s)
Nextie · MTB rims

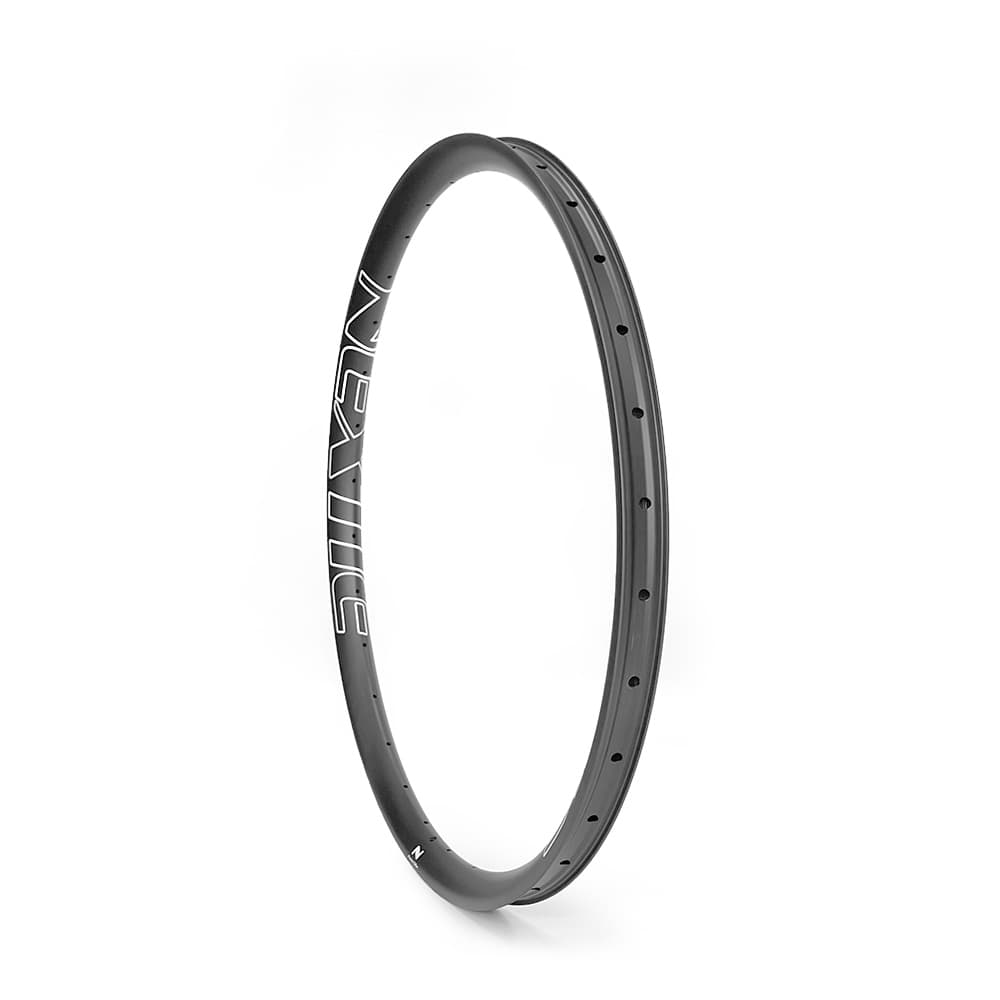

Nextie NXT27XML35 MTB carbon rim
£307
Inc. VAT · UK delivery calculated at checkout · free UK delivery over £200
We don't hold this in stock. As an authorised Nextie distributor we order it in for you when you buy — usually about 6 weeks. We'll email you when it ships.
Ordered in for you: About 6 weeks. We email you when it arrives.
- ✓ Free UK delivery over £200, or collect from the workshop
- ✓ 14-day returns on online orders
- ✓ Secure payment: card, Apple Pay, Google Pay or PayPal
Secure checkout by Stripe — card, Apple Pay, Google Pay or PayPal. We never see your card details. Returns and cancellations.
| Wheel size | 27.5" |
|---|---|
| Weight | 340g/380g |
| ERD | 551 mm |
| External / internal width | 35 / 29 mm |
| Tyre range | 2.0"–2.5" |
| Max system weight | 132 AM / 134 Enduro kg |
Want it built into a wheel? Use the wheel builder.
Details
Nextie NXT27XML35 27.5" MTB carbon rim. Ordered in for you from Nextie, or have us hand-build it into a wheel.
