From the maker
Full specification
Basic
| Code | NXT29UM27 |
|---|---|
| Rim Type | Mountain Bike (Clincher, Hookless) |
| Materials | Toray T800 + T700 Carbon Fiber |
| Edition | Premium Edition |
| ASTM Classification | Condition 3 |
| Warranty | 3 Years |
| Release Time | June 2020 |
Dimensions
| Size | 29" |
|---|---|
| BSD (Bead Seated Diameter) | 622mm |
| ERD (Effective Rim Diameter) | 596mm |
| Drillings | 24, 28, 32 |
| External Width | 27mm |
| Internal Width | 22mm |
| Rim Height | 22mm |
| Weight | 280g |
| Valve Hole Diameter | 6.5mm (Presta) |
| Spoke Holes Diameter | 4.5mm |
| Spoke Holes Angle | ± 6° |
| Assembly Hole Diameter | 7.5mm |
| Drain Holes | No |
| Tubeless Compatible | Yes |
Appearance
| Carbon Weave Availability | UD |
|---|---|
| Finish | Free Coating / Matte / Glossy |
Recommendation
| Tire Size | 1.8 ~ 2.2" |
|---|---|
| Tire Pressure | 22 ~ 32 psi |
| Spoke Tension | 100 ~ 130kgf |
| Max System Weight | 120Kg XC / 175Kg (Gravel) |
Discipline
| Discipline | Cross Country, Marathon, Endurance Cross Country, Trail, Gravel |
|---|
About this rim
The details
Introduction
The carbon fiber bicycle industry has been innovating and advancing all the time. Being lighter and stronger has always been the pursuit of the professional bicycle industry, especially for the mountain rims for XC (Cross Country) riding , where riders have extreme weight requirements.
In 2017 we first tried to use Toray T800 carbon fiber material and to improve the production process, reducing a weight of 60g for the XC mountain rims, which is a huge improvement. In order to further meet the market's more performance needs and size preferences for light weight mountain rim, we redesigned the shape of ultralight mountain rims from the year 2020 to 2021. Here comes with the mountain bike rim UM Series, including the NXT29UM27, NXT29UM30, NXT29UM32 and NXT29UM35 rims.
The weight of model NXT29UM27 is only 280g. The profile drawing of this rim is as below.
The tire size for this model of rim is recommended at 1.5" ~ 2.0". The tire pressure is recommended at 25 ~ 46 psi.
What's in the Box
Carbon Rim(s)
Nextie · MTB rims

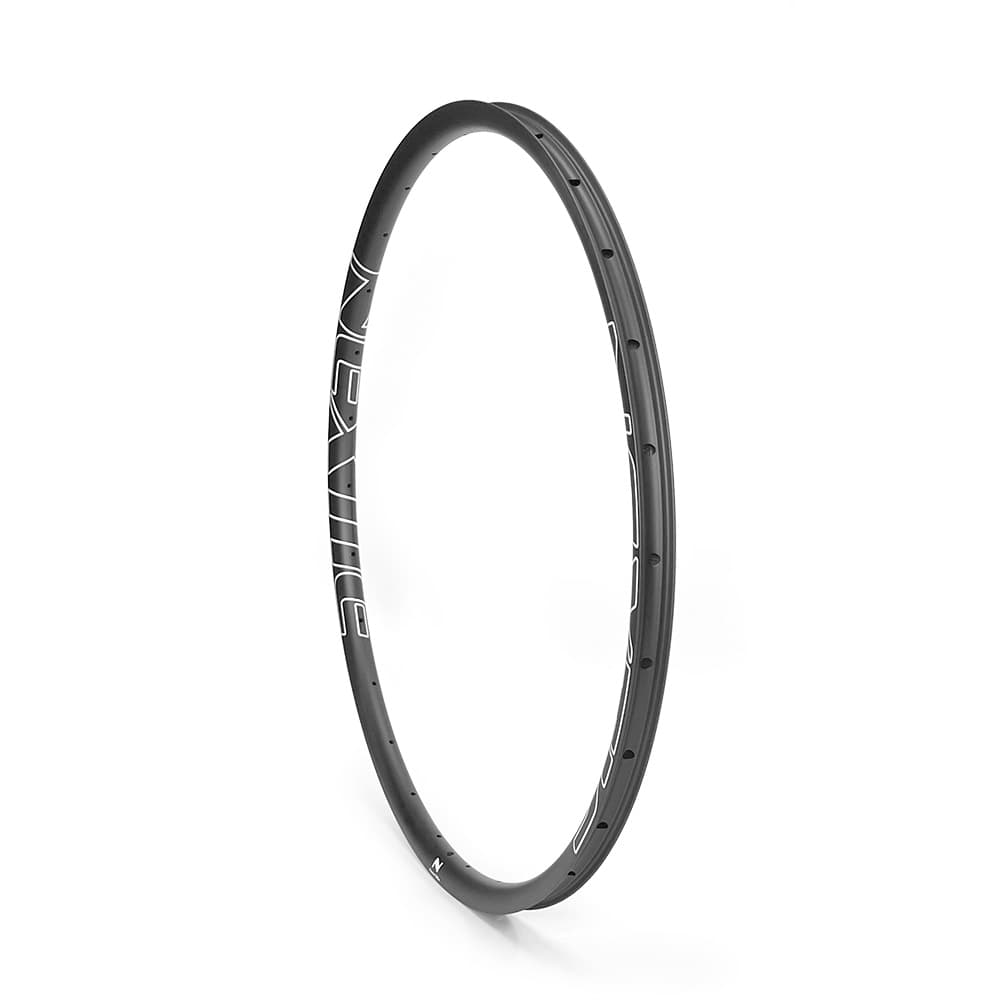

Nextie NXT29UM27 MTB carbon rim
£289
Inc. VAT · UK delivery calculated at checkout · free UK delivery over £200
We don't hold this in stock. As an authorised Nextie distributor we order it in for you when you buy — usually about 6 weeks. We'll email you when it ships.
Ordered in for you: About 6 weeks. We email you when it arrives.
- ✓ Free UK delivery over £200, or collect from the workshop
- ✓ 14-day returns on online orders
- ✓ Secure payment: card, Apple Pay, Google Pay or PayPal
Secure checkout by Stripe — card, Apple Pay, Google Pay or PayPal. We never see your card details. Returns and cancellations.
| Wheel size | 29" |
|---|---|
| Weight | 280g |
| ERD | 596 mm |
| External / internal width | 27 / 22 mm |
| Tyre range | 1.8"–2.2" |
| Max system weight | 120 kg |
Want it built into a wheel? Use the wheel builder.
Details
Nextie NXT29UM27 29" MTB carbon rim. Ordered in for you from Nextie, or have us hand-build it into a wheel.
