Nextie · Frames
Nextie G2 carbon gravel frameset
£976
Inc. VAT · UK delivery from £35 · free UK delivery over £200
I don't hold this in stock. As an authorised Nextie distributor I order it in for you when you buy, usually about 6 weeks. I'll email you when it ships.
Pay 50% now, and the other 50% when it's ready to send.
- ✓ Free UK delivery over £200, or collect from the workshop
- ✓ Ordered in or built for you, so it can't be cancelled once I've ordered it. Faulty or not as described: full refund
- ✓ Secure payment: card, Apple Pay, Google Pay or PayPal
Secure checkout by Stripe: card, Apple Pay, Google Pay or PayPal. I never see your card details. Returns and cancellations.
5.0 from 17 Google reviews · an independent workshop in Rochford since 2012
- “Fantastic service! Called in Saturday morning for a broken chain on my son's bike and a service. Bike was fixed and ready to collect Sunday afternoon!” – Nicola, September 2026
Sold by Michael at Travers Bikes, Canewdon, Essex: I answer questions myself. Warranty · Ask about this part
Details

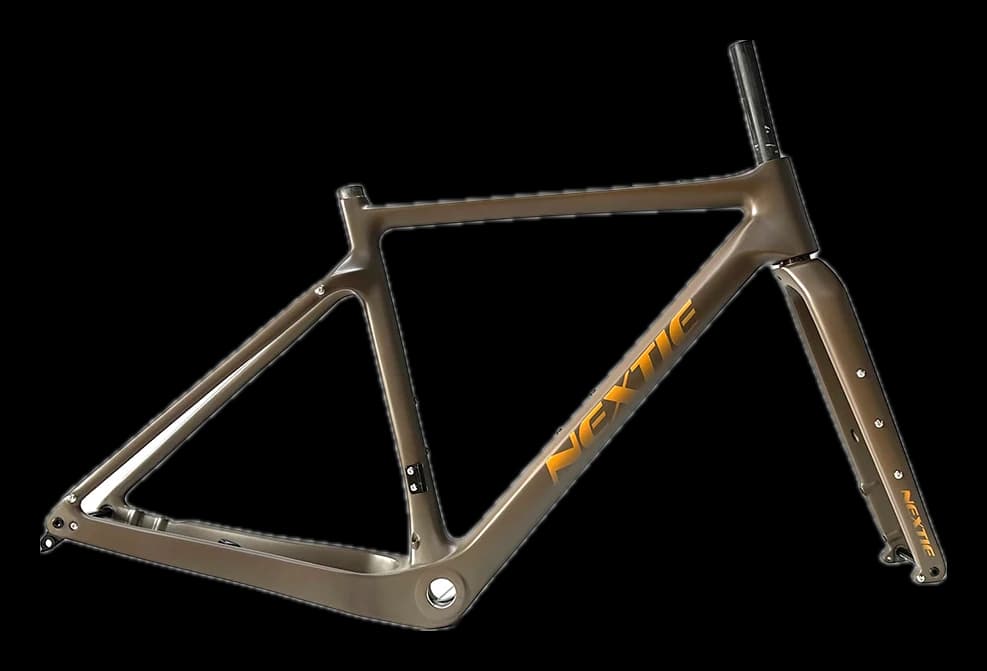

Disc-brake carbon gravel frameset from 1150 g with room for big tyres. Comes with fork, seatpost, headset, thru axles and hanger.
Want it fitted? Book it into the workshop.
From the maker
Full specification
Basic
| Code | G2 |
|---|---|
| Materials | Carbon Fiber |
| Warranty | 3 years |
| Includings | Frame, Fork, Seatpost, Handlebar, Headsets, Thru Axles, Hanger |
Dimensions
| Bottom Bracket | BSA(68mm) |
|---|---|
| Brake | Flat-Mounted Disc Brake(140mm) |
| Brake and Derailleur line | Fully Hidden |
| Derailleur Type | Mechanical Both |
| Handlebar | 420 x 90mm |
| Headtube | 1 1/2”-1 1/2” |
| Max Load | 250kg |
| Seat post | 27.2mm |
| SeatClamp | 31.8mm |
| Size | 49, 52, 54, 56 |
| Tyre clearance | 700Cx47C or 27.5er 2.1 Tire |
| Wheel Axle | Front 100x12mm, Rear 142x12mm |
| Weight | frame 1150g (49), fork 520g, handlebar 380g, seatpost 210g |
| Seatpost | 27.2 x 390mm |
Discipline
| Discipline | Gravel |
|---|
Frame Size Chart — 49 / 52 / 54 / 56
| Seat Tube Length (A) | 477mm · 507mm · 528mm · 546mm |
|---|---|
| Seat Tube Angle (B) | 74.5° · 74° · 73.5° · 73° |
| Top Tube Length (C) | 518mm · 534.5mm · 554.5mm · 578.5mm |
| Head Tube Length (D) | 95mm · 122mm · 140mm · 166mm |
| Head Tube Angle (E) | 70° · 70° · 71° · 71° |
| Fork Rake/Offset (F) | 50mm · 50mm · 50mm · 50mm |
| Wheelbase (H) | 1019.5mm · 1033.1mm · 1039.3mm · 1058.9mm |
| Chainstay length (I) | 435mm · 435mm · 435mm · 435mm |
| BB Drop (J) | 71mm · 71mm · 71mm · 71mm |
| Stack (K) | 519mm · 544.4mm · 565.3mm · 589.9mm |
| Reach (L) | 374.1mm · 378.4mm · 387.1mm · 398.2mm |
| Fork Length, Full (M) | 400mm · 400mm · 400mm · 400mm |
| Handlebar Width (N) | 420mm · 420mm · 420mm · 420mm |
| Stem Length (O) | 90mm · 90mm · 90mm · 90mm |
| Front Center (R) | 594.6mm · 608.1mm · 614.4mm · 633.7mm |
| Standover Height (S) | 764.5mm · 789.9mm · 810.8mm · 835.4mm |
| Seatpost Length (T) | 390mm · 390mm · 390mm · 390mm |
| Frame Weight | 1150g · 1260g · 1330g · 1380g |
| Fork Weight | 520g · 520g · 520g · 520g |
| Recommended Rider Height | 165 ~ 175cm · 170 ~ 180cm · 175 ~ 185cm · 180 ~ 195cm |
About this product
The details
Introduction
Geometry
Frame Size Chart
Profile Drawing
What's in the Box
1 x Frame
1 x Fork
1 x Seatpost
1 x Integrated Handlebar
1 x Headset
1 x Hanger
2 x Thru Axles
