From the maker
Full specification
Basic
| Code | NXT27XM46 |
|---|---|
| Rim Type | Mountain Bike (Clincher, Hookless) |
| Materials | Toray T800 + T700 Carbon Fibers |
| Edition | Premium Edition |
| ASTM Classification | Condition 4 |
| Warranty | 3 Years |
| Release Time | February 2018 |
Dimensions
| Size | 27.5" |
|---|---|
| BSD (Bead Seated Diameter) | 584mm |
| ERD (Effective Rim Diameter) | 549mm |
| Drillings | 28, 32 |
| External Width | 46mm |
| Internal Width | 40mm |
| Rim Height | 27mm |
| Weight | 445g |
| Valve Hole Diameter | 6.5mm (Presta) |
| Spoke Holes Diameter | 4.5mm |
| Spoke Holes Angle | ± 6° |
| Assembly Hole Diameter | 7.5mm |
| Drain Holes | No |
| Tubeless Compatible | Yes |
Appearance
| Carbon Weave Availability | UD / 3K / 12K |
|---|---|
| Finish | Free Coating / Matte / Glossy |
Recommendation
| Tire Size | 2.4" ~ 3.3" |
|---|---|
| Tire Pressure | 17 ~ 27 psi |
| Spoke Tension | 100 ~ 130kgf |
| Max System Weight | 136Kg |
Discipline
| Discipline | Trail, All Mountain, Big Mountain, Freeride, Enduro (and Super Enduro) |
|---|
About this rim
The details
Introduction
The carbon fiber bicycle industry has been innovating and advancing all the time. Being lighter and stronger has always been the pursuit of the professional bicycle industry.
In 2017 we first tried to use Toray T800 carbon fiber material and to improve the production process, the strength of AM rims increased more than 10% when the weight kept same. With the premium layer-up system applied in the year of 2020, rims get lighter in weight and stronger in performance.
The weight of model NXT27XM46 is only 445g for AM or Enduro. The profile drawing of this rim is as below.
This rim could be used for AM (All Mounatin), Trail and Enduro riding. The tire size for this model of rim is recommended at 2.4" ~ 3.5". The tire pressure is recommended at 18 ~ 30psi.
What's in the Box
Carbon Rim(s)
Nextie · MTB rims

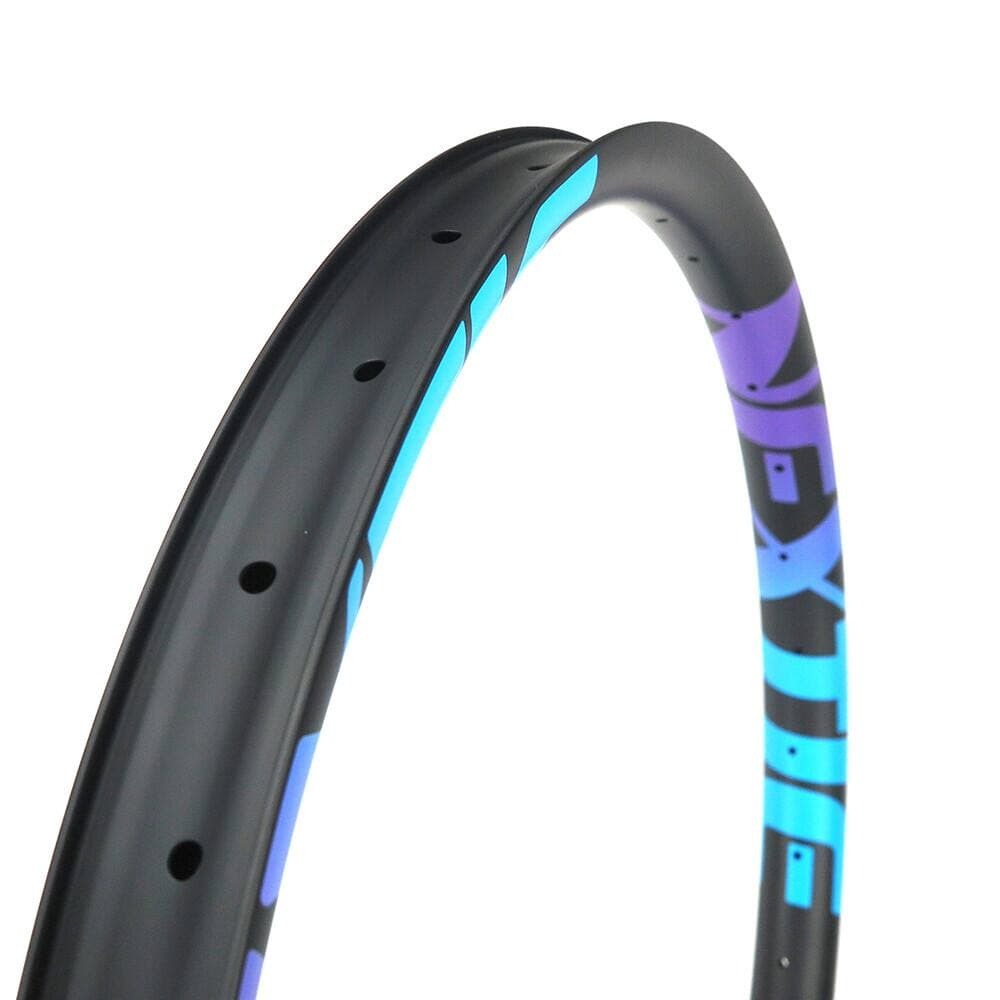

Nextie NXT27XM46 MTB carbon rim
£328
Inc. VAT · UK delivery calculated at checkout · free UK delivery over £200
We don't hold this in stock. As an authorised Nextie distributor we order it in for you when you buy — usually about 6 weeks. We'll email you when it ships.
Ordered in for you: About 6 weeks. We email you when it arrives.
- ✓ Free UK delivery over £200, or collect from the workshop
- ✓ 14-day returns on online orders
- ✓ Secure payment: card, Apple Pay, Google Pay or PayPal
Secure checkout by Stripe — card, Apple Pay, Google Pay or PayPal. We never see your card details. Returns and cancellations.
| Wheel size | 27.5" |
|---|---|
| Weight | 445g/475g |
| ERD | 549 mm |
| External / internal width | 46 / 40 mm |
| Tyre range | 2.4"–3.3" |
| Max system weight | 136 kg |
Want it built into a wheel? Use the wheel builder.
Details
Nextie NXT27XM46 27.5" MTB carbon rim. Ordered in for you from Nextie, or have us hand-build it into a wheel.
Want it fitted? Book it into the workshop.
Reviews
No reviews yet. Bought this? Tell others what you think.
