Nextie · MTB rims

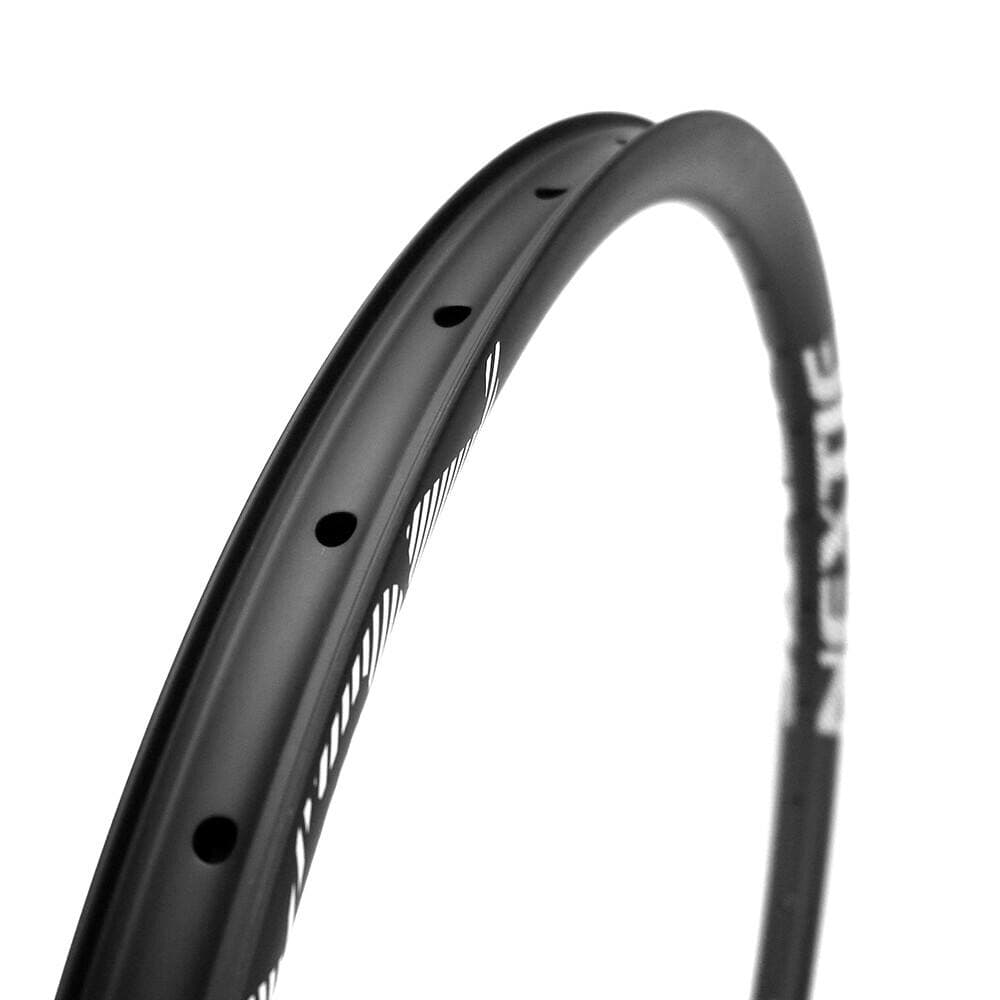

Nextie NXT27XM33 27.5" MTB carbon rim, 27 mm internal
£298
Inc. VAT · UK delivery from £20 · free UK delivery over £200
I don't hold this in stock. As an authorised Nextie distributor I order it in for you when you buy, usually about 6 weeks. I'll email you when it ships.
- ✓ Free UK delivery over £200, or collect from the workshop
- ✓ Ordered in or built for you, so it can't be cancelled once I've ordered it. Faulty or not as described: full refund
- ✓ Secure payment: card, Apple Pay, Google Pay or PayPal
Secure checkout by Stripe: card, Apple Pay, Google Pay or PayPal. I never see your card details. Returns and cancellations.
5.0 from 17 Google reviews · an independent workshop in Rochford since 2012
- “Fantastic service! Called in Saturday morning for a broken chain on my son's bike and a service. Bike was fixed and ready to collect Sunday afternoon!” – Nicola, September 2026
Sold by Michael at Travers Bikes, Canewdon, Essex: I answer questions myself. Warranty · Ask about this part
Often needed with this
- Have it built into a wheel
The builder opens with this rim already chosen.
- Tubeless tape
Ready for the tyre when the wheel arrives.
- Tubeless valves
A pair of aluminium valve stems.
| Wheel size | 27.5" |
|---|---|
| Weight | 310g/350g g |
| ERD | 549 mm |
| External / internal width | 32.6 / 27 mm |
| Tyre range | 1.9"–2.45" |
| Max system weight | 120 XC / 119 AM kg |
Want it built into a wheel? Use the wheel builder (this rim will already be chosen).
Details
Nextie NXT27XM33 27.5" MTB carbon rim. Ordered in for you from Nextie, or have us hand-build it into a wheel.
Want it fitted? Book it into the workshop.
From the maker
Full specification
Basic
| Code | NXT27XM33 |
|---|---|
| Rim Type | Clincher (Hookless) |
| Materials | Toray T800 + T700 Carbon Fibers |
| Edition | Premium Edition |
| ASTM Classification | Condition 4 |
| Warranty | 3 Years |
| Release Time | June 2020 |
Dimensions
| Size | 27.5" / 650B |
|---|---|
| BSD (Bead Seated Diameter) | 584mm |
| ERD (Effective Rim Diameter) | 549mm |
| Drillings | 28, 32 |
| External Width | 32.6mm |
| Internal Width | 27mm |
| Rim Height | 27mm |
| Weight | 310g XC / 350g AM |
| Valve Hole Diameter | 6.5mm (Presta) |
| Spoke Holes Diameter | 4.5mm |
| Spoke Holes Angle | ± 6° |
| Assembly Hole Diameter | 7.5mm |
| Drain Holes | No |
| Tubeless Compatible | Yes |
Appearance
| Carbon Weave Availability | UD |
|---|---|
| Finish | Free Coating / Matte / Glossy |
Recommendation
| Tire Size | 1.9 ~ 2.45" |
|---|---|
| Tire Pressure | 22 ~ 42psi |
| Spoke Tension | 100 ~ 130kgf |
| Max System Weight | 120Kg (XC) / 119Kg (AM) / 175Kg (Gravel) |
Discipline
| Discipline | Cross country, Marathon / endurance cross country, Trail, All Mountain, Gravel |
|---|
About this rim
The details
Introduction
The carbon fiber bicycle industry has been innovating and advancing all the time. Being lighter and stronger has always been the pursuit of the professional bicycle industry.
In 2017 we first tried to use Toray T800 carbon fiber material and to improve the production process, the strength of AM rims increased more than 10% when the weight kept same. In order to maintain the continuous improvement in the performance of AM (All Mountain) carbon mountain rims, we redesigned three models of 27.5 inch AM-level rims in the year of 2020. The new models are NXT27XM33, NXT27XM36 and NXT27XM41, which can be used for AM and Enduro riding. The inner width is specially designed to 27mm, 30mm and 35mm, which mountain riders mostly prefer. They can be fully adapted to the current popular AM-or Enduro level tires in size 1.75"-2.4". With the premium layer-up system applied, rims get lighter in weight and stronger in performance. The positive stiffness test on all the XM series has reached more than 110J, the Enduro version even reached more than 120J.
The tire size for this model of rim is recommended at 1.75" ~ 2.4". The tire pressure is recommended at 22 ~ 42psi.
What's in the Box
Carbon Rim(s)
