Nextie · MTB rims

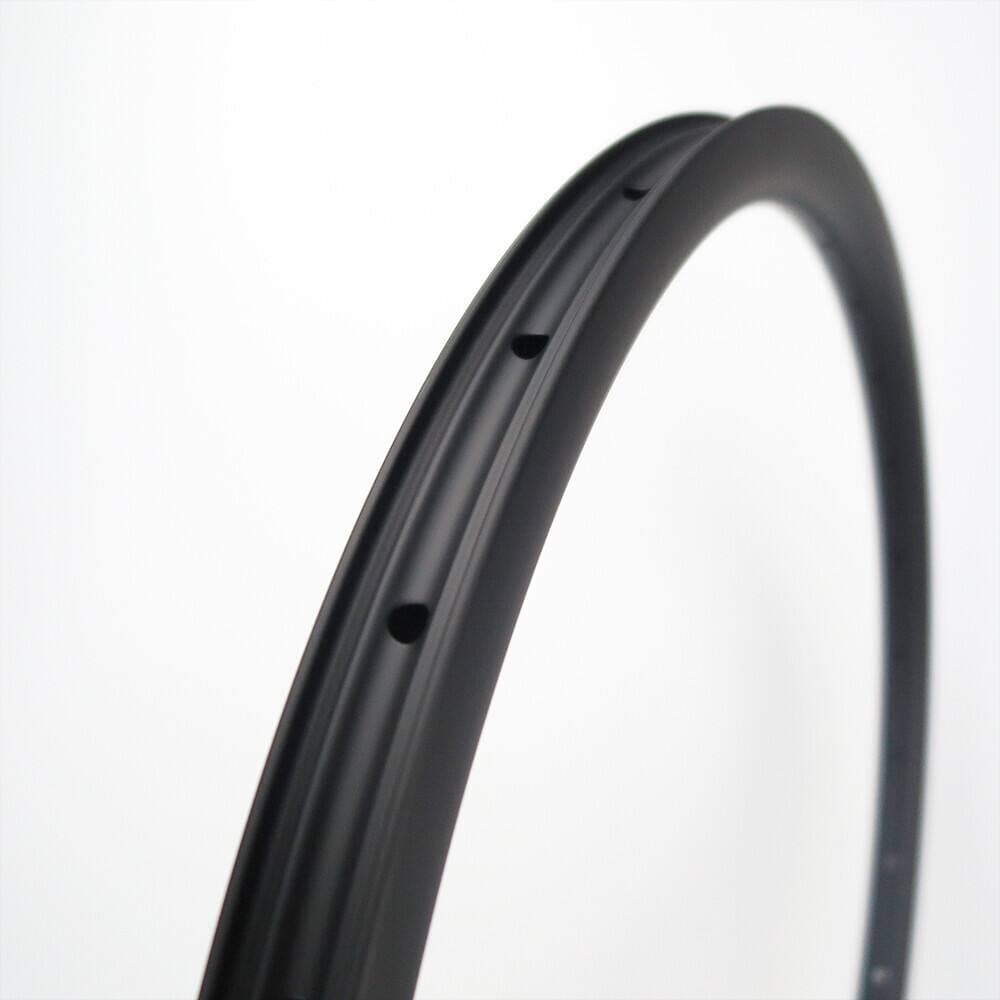

Nextie NXT29RM30 29" MTB carbon rim, 23.4 mm internal
£273
Inc. VAT · UK delivery from £20 · free UK delivery over £200
I don't hold this in stock. As an authorised Nextie distributor I order it in for you when you buy, usually about 6 weeks. I'll email you when it ships.
£273
- ✓ Free UK delivery over £200, or collect from the workshop
- ✓ Ordered in or built for you, so it can't be cancelled once I've ordered it. Faulty or not as described: full refund
- ✓ Secure payment: card, Apple Pay, Google Pay or PayPal
Secure checkout by Stripe: card, Apple Pay, Google Pay or PayPal. I never see your card details. Returns and cancellations.
5.0 from 17 Google reviews · an independent workshop in Rochford since 2012
- “Fantastic service! Called in Saturday morning for a broken chain on my son's bike and a service. Bike was fixed and ready to collect Sunday afternoon!” – Nicola, September 2026
Sold by Michael at Travers Bikes, Canewdon, Essex: I answer questions myself. Warranty · Ask about this part
Often needed with this
- Have it built into a wheel
The builder opens with this rim already chosen.
- Tubeless tape
Ready for the tyre when the wheel arrives.
- Tubeless valves
A pair of aluminium valve stems.
| Wheel size | 29" |
|---|---|
| Weight | 390g g |
| ERD | 581 mm |
| External / internal width | 30 / 23.4 mm |
| Tyre range | 1.8"–2.15" |
| Max system weight | 132 kg |
Want it built into a wheel? Use the wheel builder (this rim will already be chosen).
Details
Nextie NXT29RM30 29" MTB carbon rim. Ordered in for you from Nextie, or have us hand-build it into a wheel.
Want it fitted? Book it into the workshop.
From the maker
Full specification
Basic
| Code | NXT29RM30 |
|---|---|
| Rim Type | Mountain Bike (Clincher, Hookless) |
| Materials | Toray T700 Carbon Fiber |
| Edition | Standard Edition |
| ASTM Classification | Condition 4 |
| Warranty | 2 Years |
Dimensions
| Size | 29" |
|---|---|
| BSD (Bead Seated Diameter) | 622mm |
| ERD (Effective Rim Diameter) | 581mm |
| Drillings | 28, 32 |
| External Width | 30mm |
| Internal Width | 23.4mm |
| Rim Height | 30mm |
| Weight | 390g (AM) |
| Valve Hole Diameter | 6.5mm (Presta) |
| Spoke Holes Diameter | 4.5mm |
| Spoke Holes Angle | ± 6° |
| Assembly Hole Diameter | 7.5mm |
| Drain Holes | No |
| Tubeless Compatible | Yes |
Appearance
| Carbon Weave Availability | UD / 3K / 12K |
|---|---|
| Finish | Free Coating / Matte / Glossy |
Recommendation
| Tire Size | 1.8" ~ 2.15" |
|---|---|
| Tire Pressure | 27 ~ 45psi |
| Spoke Tension | 100 ~ 130kgf |
| Max System Weight | 132Kg (AM) / 175Kg (Gravel) |
Discipline
| Discipline | Cross Country, Marathon, Endurance Cross Country, Gravel, Trail, All Mountain |
|---|
About this rim
The details
Introduction
In the year of 2015 we designed and developed the RM27, RM30, AM35 and AM40 series of carbon fiber mountain rims. These four mountain rims incorporate aerodynamic design concepts, which are beautiful in appearance and extremely strong. While, because of its unique rounded design, it is difficult to reduce the weight. Nonetheless, they have remained a user favorite mountain rims over the years and have become a classic mountain rim range of NEXTIE's. The RM series and AM series have become the proud products of NEXTIE. They are the starting point for our progressive development and production of lighter and stronger carbon fiber mountain bike rims
This rim could be used for XC (Cross Country), AM (All Mountain), Trail and Enduro riding. The tire size for this model of rim is recommended at 1.6" ~ 2.1". The tire pressure is recommended at 27 ~ 45psi.
What's in the Box
Carbon Rim(s)
