Nextie · MTB rims

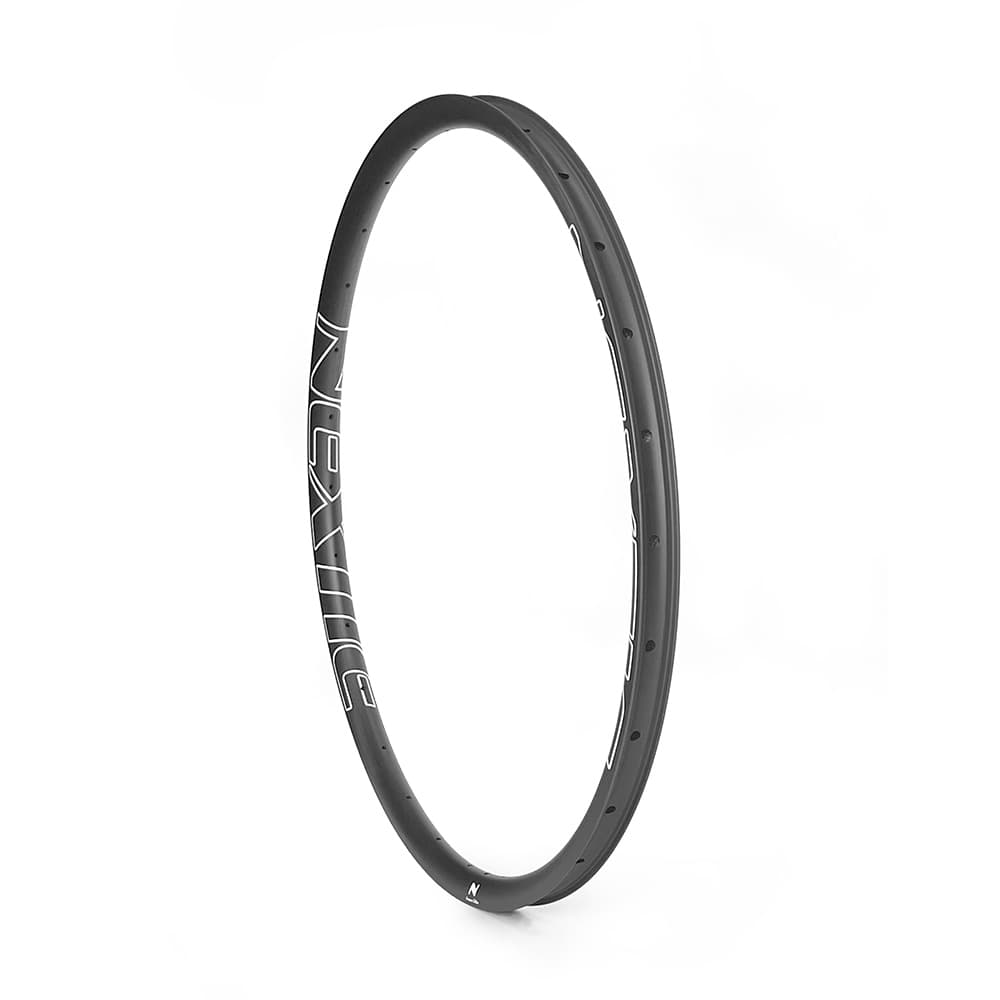

Nextie NXT29VM30U 29" MTB carbon rim, 25 mm internal
£312
Inc. VAT · UK delivery from £20 · free UK delivery over £200
I don't hold this in stock. As an authorised Nextie distributor I order it in for you when you buy, usually about 6 weeks. I'll email you when it ships.
- ✓ Free UK delivery over £200, or collect from the workshop
- ✓ Ordered in or built for you, so it can't be cancelled once I've ordered it. Faulty or not as described: full refund
- ✓ Secure payment: card, Apple Pay, Google Pay or PayPal
Secure checkout by Stripe: card, Apple Pay, Google Pay or PayPal. I never see your card details. Returns and cancellations.
5.0 from 17 Google reviews · an independent workshop in Rochford since 2012
- “Lovely guy, very helpful, friendly and accommodating. Will use again!” – Jason, September 2026
Sold by Michael at Travers Bikes, Canewdon, Essex: I answer questions myself. Warranty · Ask about this part
Often needed with this
- Have it built into a wheel
The builder opens with this rim already chosen.
- Tubeless tape
Ready for the tyre when the wheel arrives.
- Tubeless valves
A pair of aluminium valve stems.
| Wheel size | 29" |
|---|---|
| Weight | 255g g |
| ERD | 596 mm |
| External / internal width | 30 / 25 mm |
| Tyre range | 1.9"–2.5" |
| Max system weight | 120 kg |
Want it built into a wheel? Use the wheel builder (this rim will already be chosen).
Details
Nextie NXT29VM30U 29" MTB carbon rim. Ordered in for you from Nextie, or have us hand-build it into a wheel.
Want it fitted? Book it into the workshop.
From the maker
Full specification
Basic
| Code | NXT29VM30U |
|---|---|
| Rim Type | Mountain Bike (Clincher, Hookless) |
| Materials | Carbon Fiber |
| Edition | Premium Edition |
| ASTM Classification | Condition 3 |
| Warranty | 3 Years |
| Release Time | March 2023 |
Dimensions
| Size | 29" |
|---|---|
| BSD (Bead Seated Diameter) | 622mm |
| ERD (Effective Rim Diameter) | 596mm |
| Drillings | 24, 28, 32 |
| External Width | 30mm |
| Internal Width | 25mm |
| Rim Height | 22mm |
| Spoke Bed Offset | 2.6mm |
| Rim Lip Thickness | 2.5mm |
| Weight | 255g |
| Valve Hole Diameter | 6.5mm (Presta) |
| Spoke Holes Diameter | 4.5mm |
| Assembly Hole Diameter | 7.5mm |
| Drain Holes | No |
| Strength | 70J (Flat Hammer, no tire) |
Appearance
| Carbon Weave | UD |
|---|---|
| Finish | UD, Free-Coating / UD, Matte |
Recommendation
| Tire Size | 1.9 ~ 2.35" |
|---|---|
| Tire Pressure | 22 ~ 40 psi |
| Spoke Tension | 100 ~ 130kgf |
| Max System Weight | 120Kg (XC) / 175Kg (Gravel) |
Discipline
| Discipline | Cross Country, Marathon, Endurance Cross Country, Trail, Gravel |
|---|
About this rim
The details
The carbon fiber bicycle industry has been innovating and advancing all the time. Being lighter and stronger has always been the pursuit of the professional bicycle industry, especially for the mountain rims for XC (Cross Country) riding , where riders have extreme weight requirement.
In 2023, when designing and developing the Supreme Edition Alpha 30 rim (now Premium Edition), we tried to use different modulus carbon fiber materials and to apply a new stacking manufacturing technology. It brings an ultralight weight XC mountain bike rim, which weight is only 255g. Comparing to the other premium edition rim like NXT29UM30 which is 310g, the Alpha 30 rim is so lighter. Here we do not make detailed public introductions to the materials and the stacking manufacturing techniques.
In the impact test without a tire mounted, the strength of the Alpha 30 reached 70J, which has already passed the test standard of the Premium Edition XC mountain rim. The specific impact test video can be watched here TEST VIDEO
This rim could be used for XC (Cross Country), Marathon and Trail riding. The tire size for this model of rim is recommended at 1.75" ~ 2.15". The tire pressure is recommended at 22 ~ 40 psi.
What's in the Box
Carbon Rim(s)
