Nextie · MTB rims

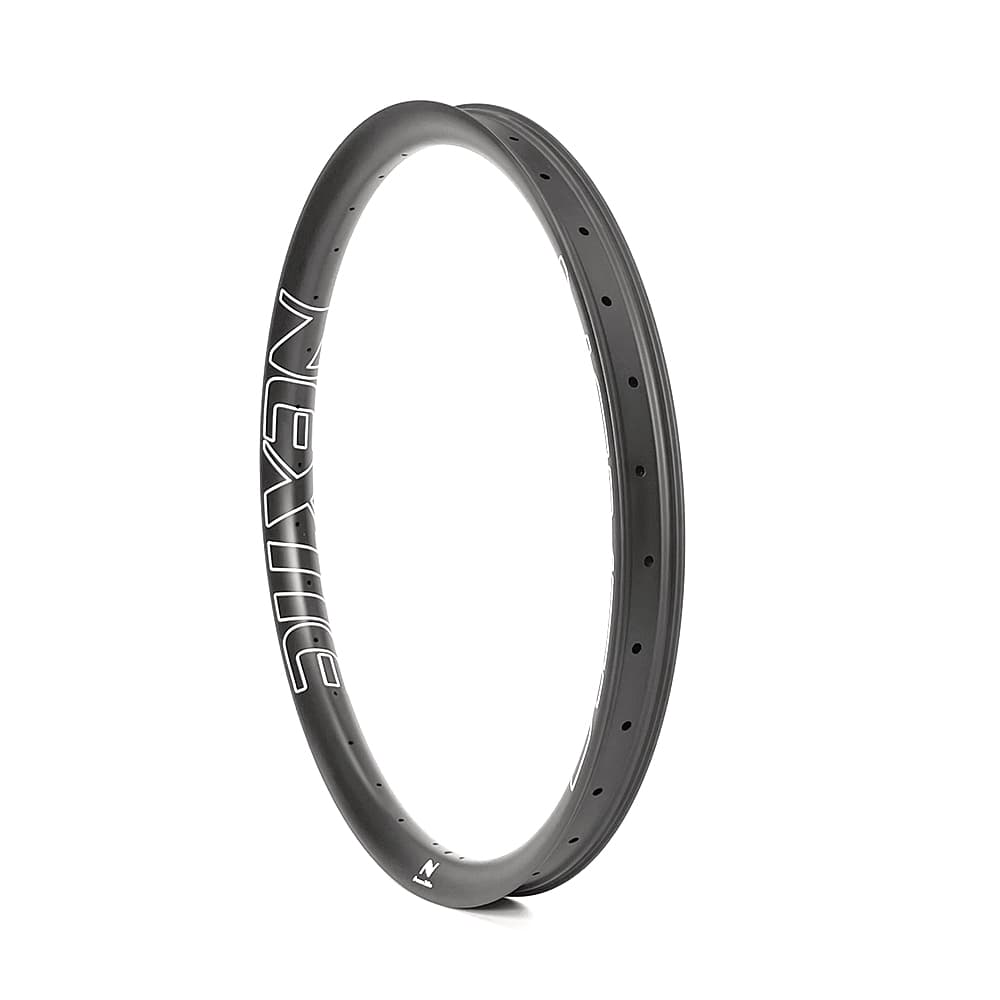

Nextie NXT27JF52-II 27.5" MTB carbon rim, 45 mm internal
£329
Inc. VAT · UK delivery from £20 · free UK delivery over £200
I don't hold this in stock. As an authorised Nextie distributor I order it in for you when you buy, usually about 6 weeks. I'll email you when it ships.
- ✓ Free UK delivery over £200, or collect from the workshop
- ✓ Ordered in or built for you, so it can't be cancelled once I've ordered it. Faulty or not as described: full refund
- ✓ Secure payment: card, Apple Pay, Google Pay or PayPal
Secure checkout by Stripe: card, Apple Pay, Google Pay or PayPal. I never see your card details. Returns and cancellations.
5.0 from 17 Google reviews · an independent workshop in Rochford since 2012
- “Fantastic service! Called in Saturday morning for a broken chain on my son's bike and a service. Bike was fixed and ready to collect Sunday afternoon!” – Nicola, September 2026
Sold by Michael at Travers Bikes, Canewdon, Essex: I answer questions myself. Warranty · Ask about this part
Often needed with this
- Have it built into a wheel
The builder opens with this rim already chosen.
- Tubeless tape
Ready for the tyre when the wheel arrives.
- Tubeless valves
A pair of aluminium valve stems.
| Wheel size | 27.5" |
|---|---|
| Weight | 510g g |
| ERD | 535 mm |
| External / internal width | 52 / 45 mm |
| Tyre range | 2.6"–3.6" |
| Max system weight | 160 kg |
Want it built into a wheel? Use the wheel builder (this rim will already be chosen).
Details
Nextie NXT27JF52-II 27.5" MTB carbon rim. Ordered in for you from Nextie, or have us hand-build it into a wheel.
Want it fitted? Book it into the workshop.
From the maker
Full specification
Basic
| Code | NXT27JF52-II |
|---|---|
| Rim Type | Clincher (Hookless) |
| Materials | Toray T700 Carbon Fibers |
| Edition | Standard Edition |
| ASTM Classification | Condition 5 |
| Warranty | 2 Years |
Dimensions
| Size | 27.5" / 650B |
|---|---|
| BSD (Bead Seated Diameter) | 584mm |
| ERD (Effective Rim Diameter) | 535mm |
| Drillings | 28, 32 |
| External Width | 52mm |
| Internal Width | 45mm |
| Rim Height | 34mm |
| Weight | 510g (AM) |
| Valve Hole Diameter | 6.5mm (Presta) |
| Spoke Holes Diameter | 4.5mm |
| Spoke Holes Angle | ± 6° |
| Assembly Hole Diameter | 7.5mm |
| Drain Holes | No |
| Tubeless Compatible | Yes |
Appearance
| Carbon Weave Availability | UD / 3K / 12K |
|---|---|
| Finish | Free Coating / Matte / Glossy |
Recommendation
| Tire Size | 2.6" ~ 3.5" |
|---|---|
| Tire Pressure | 15 ~ 25 psi |
| Spoke Tension | 100 ~ 130kgf |
| Max System Weight | 160Kg |
Discipline
| Discipline | Trail, All Mountain, Big Mountain, Freeride, Enduro (and Super Enduro) |
|---|
About this rim
The details
Introduction
In the year of 2015 when users had a new demand for the width of mountain rims, expecting a wider mountain rim to install 3.0" or wider tires, we developed the Jungle Fox series. The designe of Jungle Fox series borrowed from Black Eagle rim design concept, the cross section is a stable support structure of a triangle, this design has great support for the strength of the ultra-wide rim. In the second year, we improved the Jungle Fox and increased the thickness of the rim lip to 3.5mm, the strength is further improved. The performance and aesthetics have reached an unprecedented fusion. Thus Jungle Fox II has become the most classic Plus mountain bike rim series.
This rim could be used for Trail, Enduro and Freeride riding. The tire size for this model of rim is recommended at 2.6" ~ 3.6". The tire pressure is recommended at 17 ~ 29 psi.
What's in the Box
Carbon Rim(s)
Reviews
Bought this? Be the first to tell other riders what you think.
