Nextie · Fat wheelsets

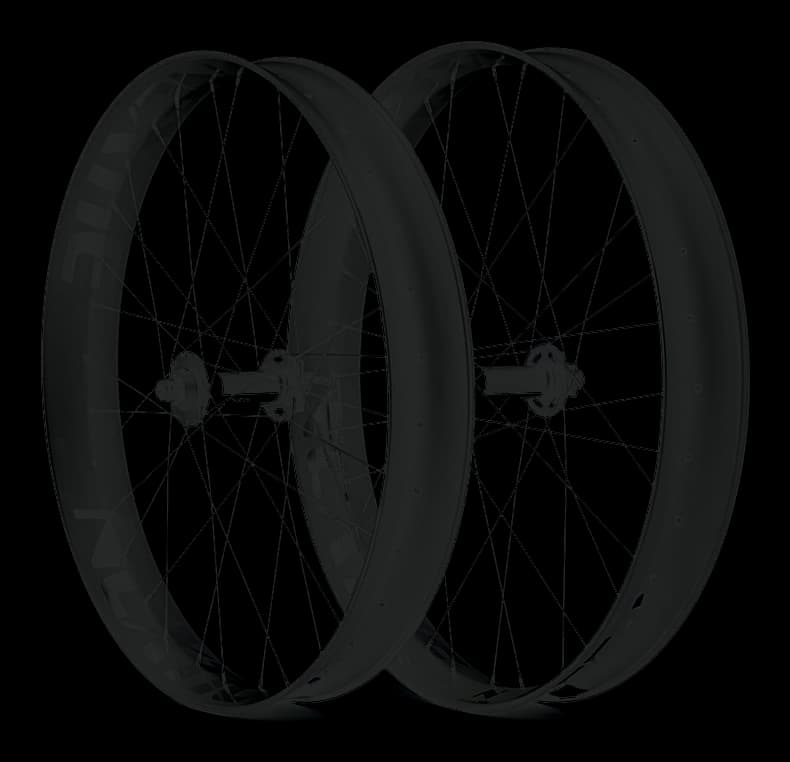

Nextie Xiphias carbon fat bike wheelset (55-105 mm)
£1,108
Inc. VAT · UK delivery from £20 · free UK delivery over £200
I don't hold this in stock. As an authorised Nextie distributor I order it in for you when you buy, usually about 6 weeks. I'll email you when it ships.
£1,146
Pay 50% now, and the other 50% when it's ready to send.
- ✓ Free UK delivery over £200, or collect from the workshop
- ✓ Ordered in or built for you, so it can't be cancelled once I've ordered it. Faulty or not as described: full refund
- ✓ Secure payment: card, Apple Pay, Google Pay or PayPal
Secure checkout by Stripe: card, Apple Pay, Google Pay or PayPal. I never see your card details. Returns and cancellations.
5.0 from 17 Google reviews · an independent workshop in Rochford since 2012
- “Lovely guy, very helpful, friendly and accommodating. Will use again!” – Jason, September 2026
Sold by Michael at Travers Bikes, Canewdon, Essex: I answer questions myself. Warranty · Ask about this part
Often needed with this
- Tubeless tape and valves
Everything to go tubeless on day one.
- Tyres fitted with sealant
£25 at the workshop.
Details
Complete carbon wheelset built by Nextie in their factory, from 1608 g. Choose your rim finish, hubs, spokes and freehub. Ordered in for you from Nextie.
Want it fitted? Book it into the workshop.
From the maker
Full specification
Basic
| Name | Xiphias Carbon Wheelset |
|---|---|
| Type | Fat Bike. Beach Bike |
| Size | 26" or 27.5" or 29" |
| Brake Interface | Disc Brake (6-Bolt) |
| Edition | Premium Edition |
| ASTM Classification | Condition 4 or 5 |
| Warranty | 3 Years |
Dimensions
| Rims | Carbon Fiber Xiphias Series |
|---|---|
| Holes | 32 front / 32 rear |
| Nipples | Sapim Secure Lock |
| Weight | From 1608g |
| Valve Hole Diameter | 6.5mm (Presta) |
| Spokes | Sapim. DT Swiss. Pillar |
| Tubeless Compatible | Yes |
| Hubs | DT Swiss 350SL Big Ride |
Recommendation
| Tire Size | 2.8" ~ 6.0" |
|---|---|
| Tire Pressure | 3 ~ 26psi |
| Spoke Tension | 110 ~ 130kgf |
| Max System Weight | 134 ~ 185Kg |
| Ideal Valve Stem Length | 24mm |
Discipline
| Discipline | Trail. Dirt. Enduro. Snow. Sand. Bogs. Desert and Mud. |
|---|
About this product
The details
Introduction
NEXTIE offers a full line of custom bike rims for Fat Bike wheels, providing tailor-made solutions to meet your specifications. We have years of experience in wheel-building, and we cater to the needs of each customer. In our inventory, we offer different sizes carbon fiber fat bike rims.
At NEXTIE, we build each wheel with precision and care, you can be confident that you are getting a high quality custom bicycle wheelset when you buy from us.
If you are interested in customzing your bike with new and stylish rims, the experts at NEXTIE are ready to make your bike look great and improve your preformance on the trails. We have been serving the cycling community since 2013, and all our custom bike rims are made here in China.
Wheelset Weight Reference
1698g (Xiphias 26" 65mm Rims + DT350 Big Ride Hubs + Sapim CX-Ray Spokes + Sapim Alloy Nipples)
1878g (Xiphias 26" 85mm Rims + DT350 Big Ride Hubs + Sapim CX-Ray Spokes + Sapim Alloy Nipples)
1948g (Xiphias 26" 95mm Rims + DT350 Big Ride Hubs + Sapim CX-Ray Spokes + Sapim Alloy Nipples)
2008g (Xiphias 26" 105mm Rims + DT350 Big Ride Hubs + Sapim CX-Ray Spokes + Sapim Alloy Nipples)
1608g (Xiphias 27.5" 55mm Rims + DT350 Big Ride Hubs + Sapim CX-Ray Spokes + Sapim Alloy Nipples)
1838g (Xiphias 27.5" 70mm Rims + DT350 Big Ride Hubs + Sapim CX-Ray Spokes + Sapim Alloy Nipples)
1978g (Xiphias 27.5" 80mm Rims + DT350 Big Ride Hubs + Sapim CX-Ray Spokes + Sapim Alloy Nipples)
2018g (Xiphias 27.5" 95mm Rims + DT350 Big Ride Hubs + Sapim CX-Ray Spokes + Sapim Alloy Nipples)
1668g (Xiphias 29" 55mm Rims + DT350 Big Ride Hubs + Sapim CX-Ray Spokes + Sapim Alloy Nipples)
Carbon Fat Bike Rims (Single Wall)
Xiphias 26" 65mm: 440g
Xiphias 26" 85mm: 530g
Xiphias 26" 95mm: 565g
Xiphias 26" 105mm: 595g
Xiphias 27.5" 55mm: 395g
Xiphias 27.5" 70mm: 510g
Xiphias 27.5" 80mm: 580g
Xiphias 27.5" 95mm: 600g
Xiphias 29" 55mm: 425g
Hubs
DT Swiss 350 Big Ride, 15x150mm / 12x197mm, Rachet 36T, 6-Bolt, 32Holes. Hub Body: Shimano MTB / Sram XD / Shimano Micro Spline 12S, 212g + 307g;
Onyx Vesper, 15x150mm / 12x197mm, J-Bend, Centerlock, 32Holes, Hub Body: Sram XDR, 276g + 510g.
Spokes
Spokes Sapim CX-Ray (64 pcs x 260 mm lg) 272g
Spokes Sapim D-Light 2.0/1.65 (64 pcs x 260 mm lg) 307g
Spokes DT Competition 2.0/1.8 (64pcs x 264mm lg) 382g
Spokes DT Competition Race 2.0/1.6 (64pcs x 264mm lg) 312g
Spokes Pillar X-Tra 1420 (64pcs x 260mm lg) 275g;
And more.
Nipples
Sapim Polyas Secure Lock, DT Swiss Prolock, Alloy / Brass in color black, red, orange, gold, blue, green, purple, pink, silver and more.
What's in the Box
Carbon Wheelset (Front + Rear)
2 x Extra Spokes
2 x Tubeless Valve Stems
1 x Tubeless Tape
