From the maker
Full specification
Basic
| Model | Alpha 36S Wheelset |
|---|---|
| Type | Mountain Bike Cross Country |
| Brake Interface | Disc Brake |
| Holes | 28 front + 28 rear |
| Edition | Supreme Edition (Alpha) |
| ASTM Classification | Condition 3 |
| Including | Complete Wheelset + Tubeless Valve Stems + Tubeless Tape |
| Warranty | 5 Years |
| Release Time | February 2025 |
Specifications
| Size | 29" |
|---|---|
| Wheelset Weight | From 898g |
| Rim Finish | UD, Free-Coating |
| Rim Model | Alpha 36S front + Alpha 36S rear |
| Valve Hole Diameter | 6.5mm Presta |
| Hubs | NEXTIE Rollingstar. DT Swiss. Onyx Vesper. |
| Drain Holes | Optional |
| Spokes | Sapim CX-Ray, Carbon Spokes |
| Nipples | Sapim Polyax Secure Lock (Aluminum) |
| Tubeless Compatible | Yes |
| Tubeless Ready | Optional |
Recommendation
| Tire Size | 2.0" ~ 2.75" |
|---|---|
| Tire Pressure | 22 ~ 32psi |
| Spoke Tension | 120 ~ 130kgf |
| Max System Weight | 150Kg |
| Ideal Valve Stem Length | 36mm |
Discipline
| Discipline | Cross Country (XCO, XCM, XCC), Marathon, Endurance Cross Country, Trail |
|---|
Best Features
- 1. Advanced Single-Point (ASP) Reinforcement at Spoke Holes and Valve Stem Hole, Resulting in Rims that are Stronger and Lighter.
- 2. Material Breakthrough: Toray T1100 + T1000 Aerospace Grade Carbon Fiber.
- 3. 3rd-Generation Layer-up Structure.
- 4. Highly Strict Technical Test Methods — 105J for 28Holes <Pointed Hammer, 25psi>.
- 5. 23mm Low-Profile Optimization for Riding Comfort and Tubeless-Ready.
About this product
The details
Introduction
NEXTIE offers a full line of custom bike carbon rims for mountain bicycle wheels, providing tailor-made solutions to meet your specifications. We have years of experience in wheel-building, and we cater to the needs of each customer. In our inventory, we offer different sizes carbon fiber mountain bicycle rims.
At NEXTIE, we build each wheel with precision and care, you can be confident that you are getting a high quality custom bicycle wheelset when you buy from us.
If you are interested in customzing your bike with new and stylish rims, the experts at NEXTIE are ready to make your bike look great and improve your preformance on the trails. We have been serving the cycling community since 2013, and all our custom bike rims are made here in China.
Wheelset Weight Reference
868g : Alpha 36S (225g) + DT180 EXP hubs + Carbon Spokes Oval #5 + Alloy Nipples
1058g : Alpha 36S (225g) + DT180 EXP hubs + Sapim CX-Ray + Alloy Nipples
Carbon Mountain Rims
Alpha 36S Carbon Rims. Supreme Cross Country. 225g 28Holes.
Hubs
NEXTIE Rollingstar II, DT Swiss 180 EXP / 240 EXP / 240 DEG, Onyx Vesper.
Spokes
Carbon Spokes
Spokes Sapim CX-Ray 4.25g/pcs (260 mm)
Spokes Titanium T-Force Aero 3.6g/pcs (260mm)
Spokes Titanium T-Max Aero 2.9g/pcs (260mm)
Nipples
Sapim Polyax (Secure Lock, 14mm) Alloy in color black, red, orange, gold, blue, green, purple, pink, silver and brass in color black.
Tubeless Ready Wheels
Advantage 1 - Lighter: Since no tubeless tape wrapping on the Tubeless Ready wheels, the weight of the wheel goes lighter than the weight of common wheel with tape wrapped;
Advantage 2 - Stronger: No holes drilling on rim bed (except valve holes) and the carbon fibers not being damaged, the rim bed would be kept integral and the strength increases;
Advantage 3 - Safe: Tubeless Ready wheels no risk of air leaking from the rim bed, the cycling stays safe and the journey could be longer than riding bike with common wheels.
Disadvantage: Needs professional maintaince in case of spoke breaking
Note: Tubeless Ready wheels could also be mounted with tubes.
What's in the Box
Carbon Wheelset (Front + Rear)
Complete Wheelset + Extra Spokes + Tubeless Kits + NEXTIE Cap
Learn more
Bicycle Tire Pressue Chart
Bicycle Tire Size Chart
What is ASTM Classification?
What's the difference in XC vs. Endurance? Enduro vs. All-mountain?
What is the difference between weaves UD, 3K and 12K?
What is Free Coating Manufacturing (FCM) process?
What is ERD (Effective Rim Diameter)?
How much spoke tension should I use?
Nextie · MTB wheelsets

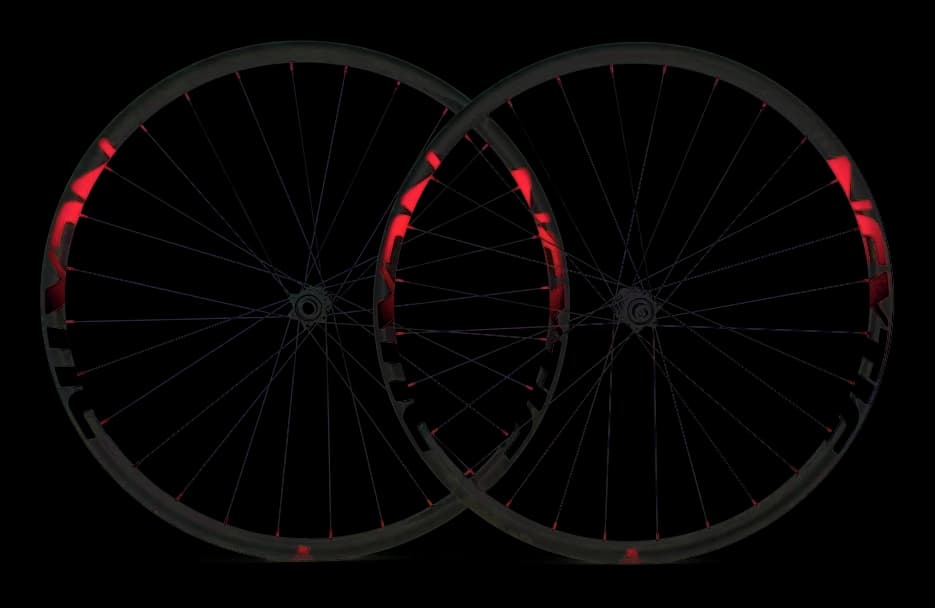

Nextie Alpha 36S carbon XC wheelset 29"
£1,415
Inc. VAT · UK delivery calculated at checkout · free UK delivery over £200
We don't hold this in stock. As an authorised Nextie distributor we order it in for you when you buy — usually about 6 weeks. We'll email you when it ships.
£1,415
Ordered in for you: About 6 weeks. We email you when it arrives. Pay 50% now, and the other 50% when it's ready to send.
- ✓ Free UK delivery over £200, or collect from the workshop
- ✓ 14-day returns on online orders
- ✓ Secure payment: card, Apple Pay, Google Pay or PayPal
Secure checkout by Stripe — card, Apple Pay, Google Pay or PayPal. We never see your card details. Returns and cancellations.
Details
Complete carbon wheelset built by Nextie in their factory, from 868 g. Choose your rim finish, hubs, spokes and freehub. Ordered in for you from Nextie.
