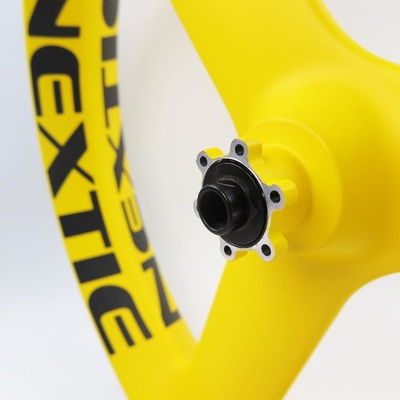

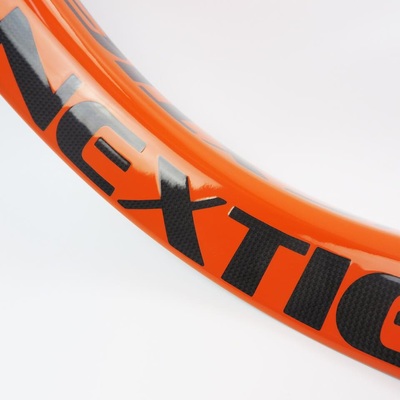

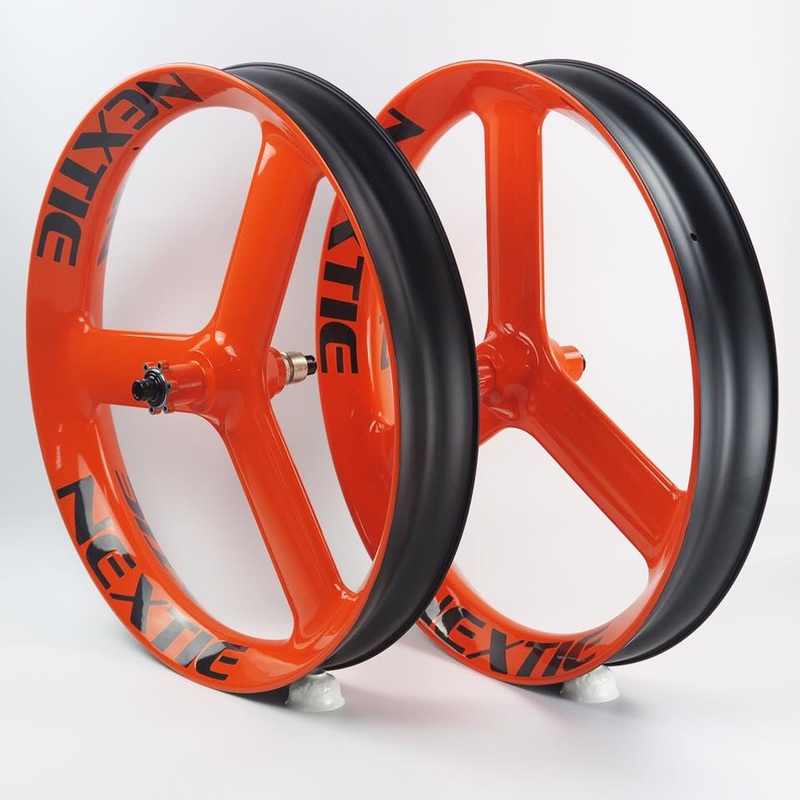

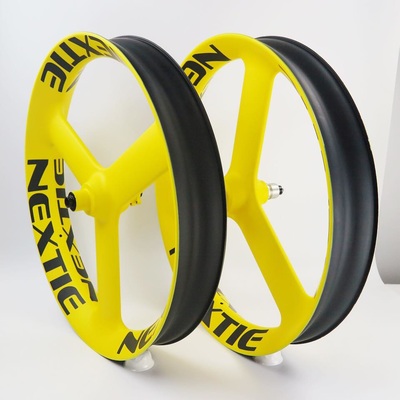

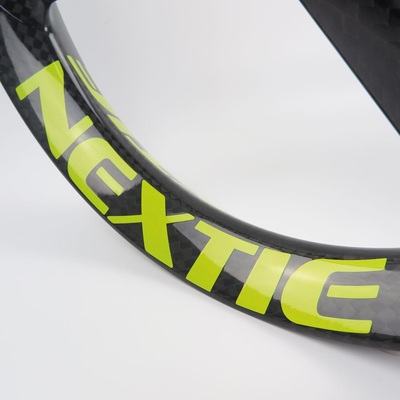

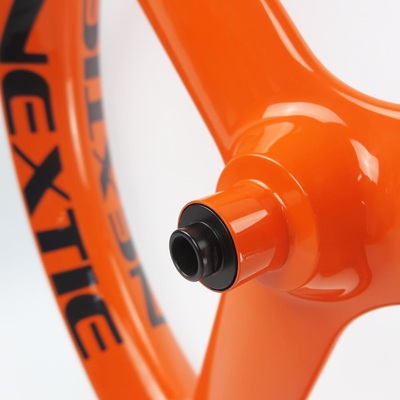

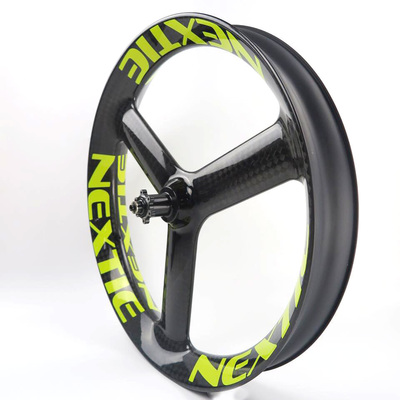

Nextie Wild Dragon Tri-Spoke

The Nextie Wild Dragon has always be the go to rim for those looking to shed some weight on a 90mm Fat Bike rim. Combine that with a tri-spoke spokes and hub and you get a stunning looking wheels. The Nextie Wild Dragon Tri-Spoke.

Basic

• Item #: NXT90WD-TS
• Material: Toray T700 Carbon Fiber
• Rim Type: Clincher / Half-Hookless
• Name: Wild Dragon Mark II
• Warranty: 2 Years

Dimension

• Size: 26"
• BSD: 559mm
• Width: 90mm
• Depth: 40mm
• Weight: 1100g front / 1200g rear

Recommendation

• Tire Size: 4.0"+
• Weight Limit: 200kg
• Max Tire Pressure: 20psi

Appearance

• Weave: UD / 3K / 12K
• Finish: Matte / Glossy
• Note: Glossy is about 20g more than Matte, 12K is about 20g more than UD or 3K.

Application

• Trail / Dirt / Enduro / Snow / Sand / Bogs / Desert / Mud


Color Option

• White: White
• Ferrari Red: Ferrari Red 185 C
• Orange: Orange 21 C
• Pink: Pink 806 C
• Purple: Purple 2592 C
• Process Blue: Process Blue
• Yellow: Yellow 803 C
• Fluor Green: Fluorescent Green
• Note: Color paint adds about 30g for each rim; Color # supports Pantone Color Chart; Decals adds about 10g for each rim accordingly.

Design Features

• - Width 90mm fits more forms of cycling and keeps riding in great stability;
• - Deep section (40mm) could make fat bikes be used for more aggressive cycling forms;
• - Deep channel would help you easily install and take off a tire;
• - Small bead socket could lock tire tightly and help run tubeless perfectly;
• - Aero roof surface (triangle-like shape) could easily shed the dirt or mud, better to release weight during cycling;
• - Section of triangle's inherent feature of stability on rim design keeps rim in strong performance.

Designer

• This superb fat rim was originally designed by Ryan Melnyck at lbs.Bikes, who is a former Canadian national champion in a mountain cross country racing and multi times provincial champion, also a mechanical designer, having done lots of design works for other brands.
