New Carbon Down hill rims

Nextie New 27.5 and 29" Downhill rims

Basic

• Product Code: NXT27XD39
• Rim Type: Clincher (Hookless)
• Materials: Toray T800 + T700 Carbon Fibers
• Tubeless Compatible: Yes
• Drillings: 28, 32
• Warranty: 3 Years

Specification

• Size: 27.5" / 650B
• BSD (Bead Seated Diameter): 584mm
• ERD (Effective Rim Diameter): 553mm

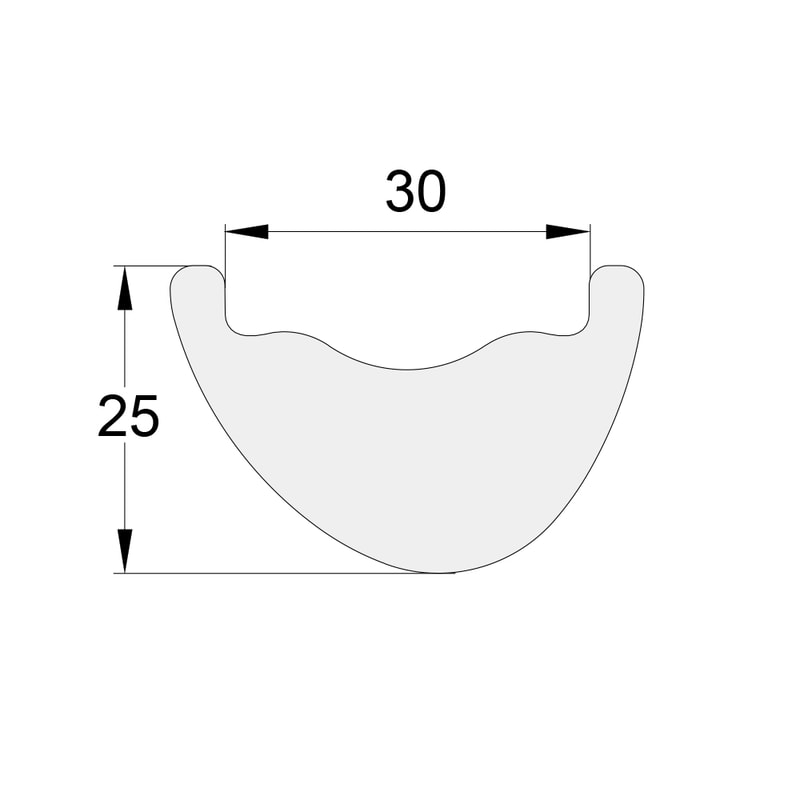

• External Width: 38.6mm
• Internal Width: 30mm
• Rim Height: 25mm
• Weight: 520g
• Valve Hole Diameter: 6.5mm (Presta)
• Spoke Holes Diameter: 4.5mm
• Spoke Holes Angle: ± 6°
• Spoke Holes Offset: 2.6mm
• Assembly Hole Diameter: 7.5mm

Recommendation

• Spoke Tension: 80~130kgf
• Tire Size: 2.1" ~ 2.8"
• Tire Pressure: 30 ~ 60psi
• Load Limit (One Wheel): 150kg

Appearance

• Carbon Weave Availability: UD / 3K / 12K
• Finish: Free Coating / Matte / Glossy

Application

• AM / Enduro / Freeride / Down Hill
