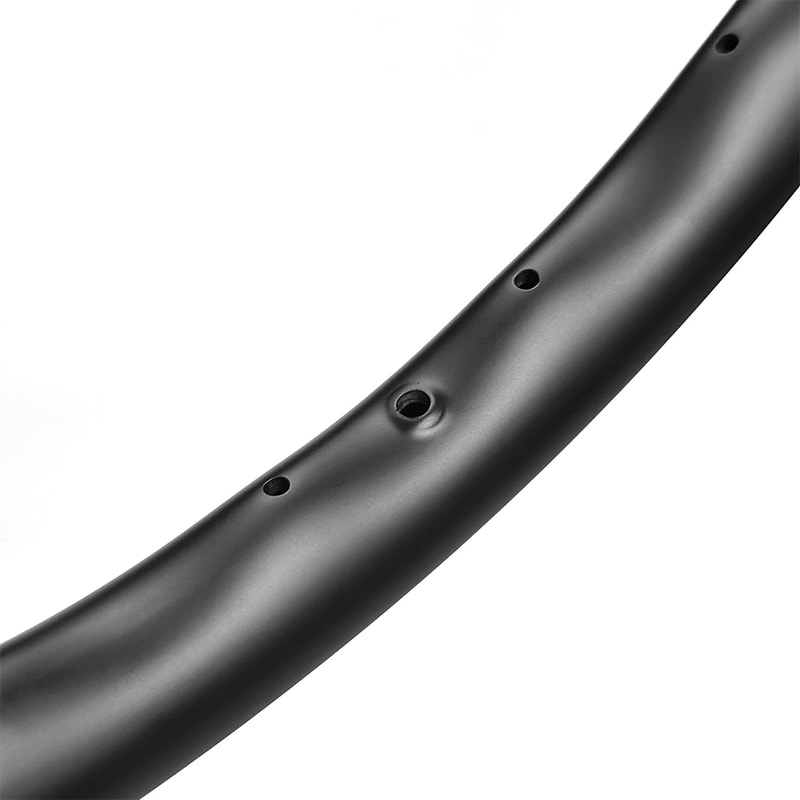

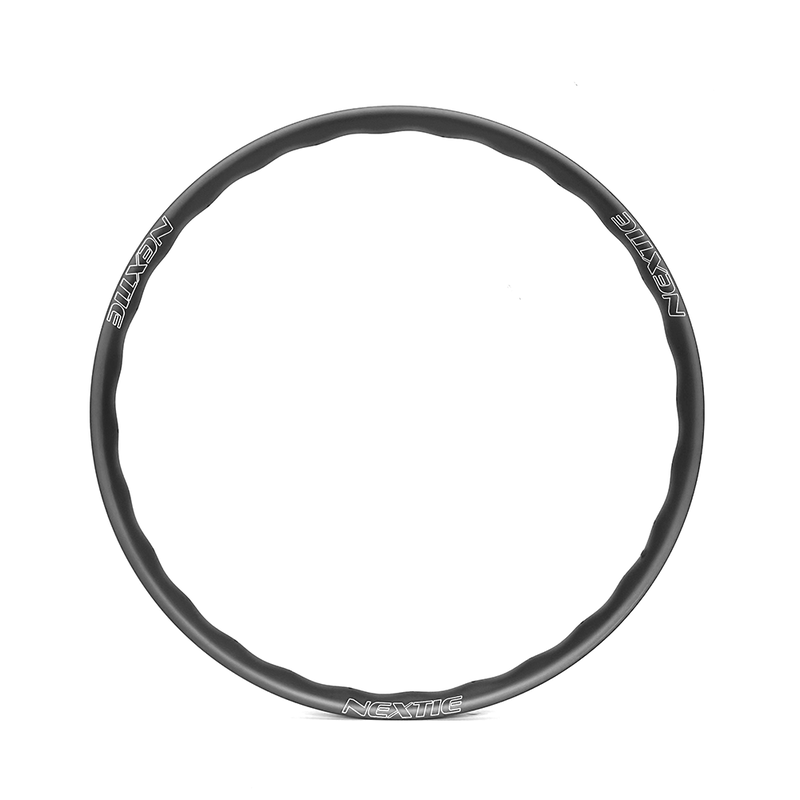

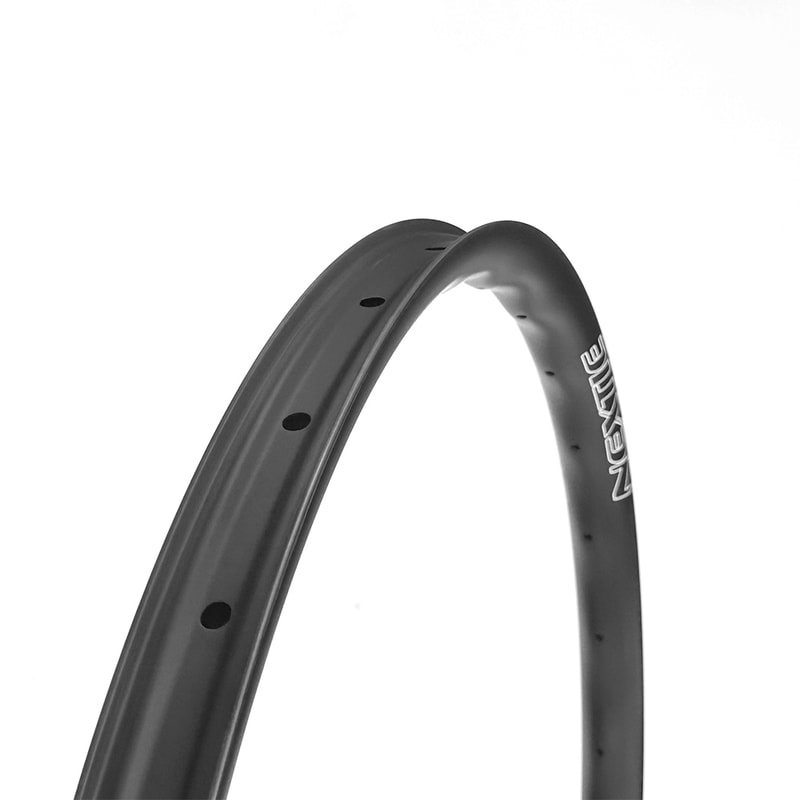

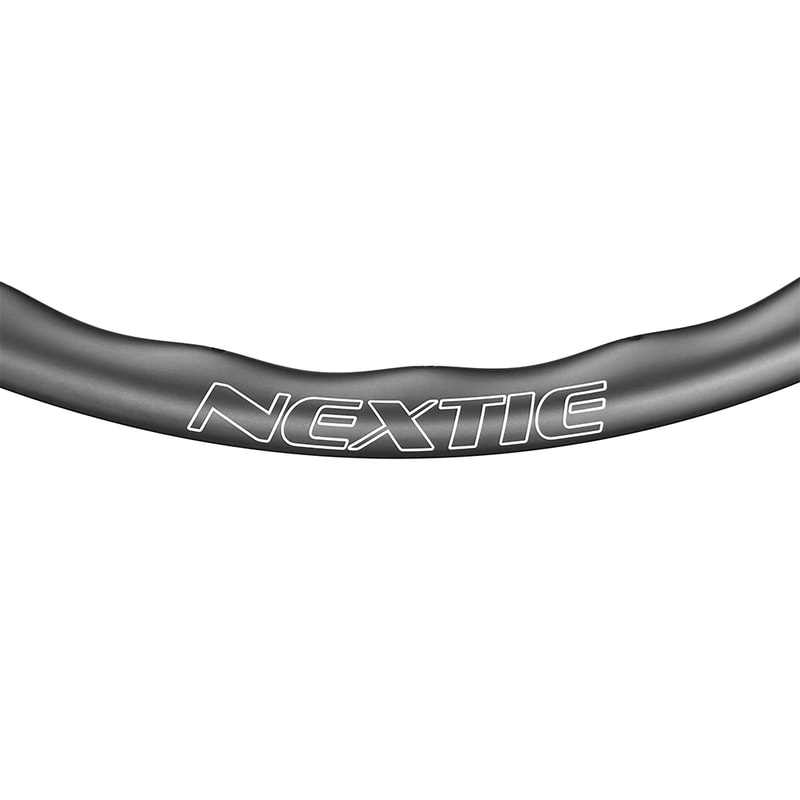

New 29" MTB Carbon Wave Rim 35mm

New 29" MTB Carbon Wave Rim 35mm

Basic

• Product Code: NXT29WML35
• Rim Type: Clincher (Hookless)
• Materials: Toray T800 + T700 Carbon Fibers
• Tubeless Compatible: Yes
• Drillings: 28
• Warranty: 3 Years

Specification

• Size: 29"
• BSD (Bead Seated Diameter): 622mm
• ERD (Effective Rim Diameter): 590mm
• External Width: 35mm
• Internal Width: 30mm
• Rim Height: 25mm
• Weight: 325g
• Valve Hole Diameter: 6.5mm (Presta)
• Spoke Holes Diameter: 4.5mm
• Spoke Holes Angle: ± 6°
• Assembly Hole Diameter: 7.5mm

Recommendation

• Spoke Tension: 80~130kgf
• Tire Size: 2.0"~2.5"
• Tire Pressure: 25 ~ 60psi
• Load Limit (One Wheel): 100kg / 110kg

Appearance

• Carbon Weave Availability: UD
• Finish: Free Coating / Matte / Glossy

Application

• XC / Marathon / Trail
